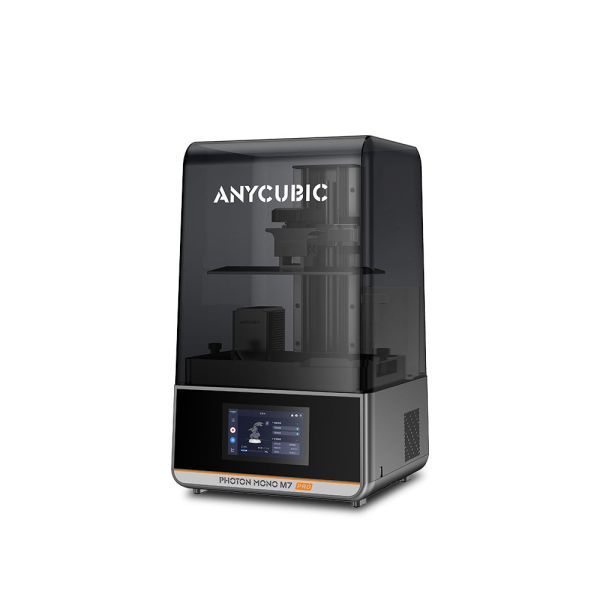

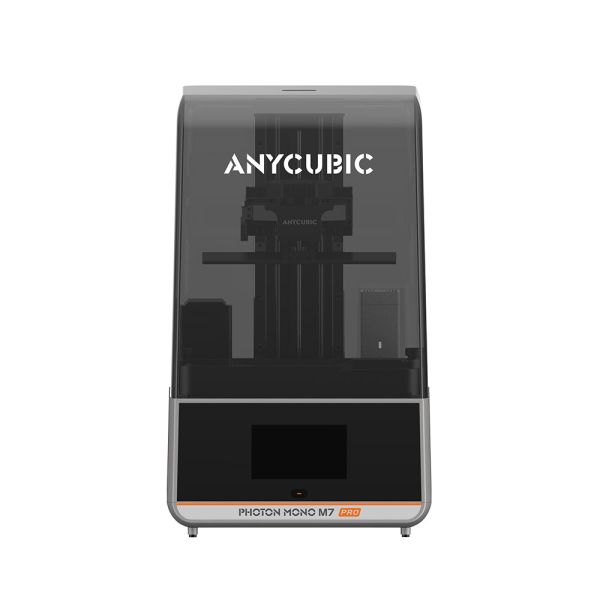

Anycubic Photon Mono M7 Pro
The Photon Mono M7 Pro flaunts remarkable printing speeds, clocking in at up to 130mm/h for standard resins and an astonishing 170mm/h with high-speed resin, all while preserving a precise layer height of 0.1mm. This performance is driven by its advanced 10.1-inch, 14K high-precision optical system, guaranteeing outstanding detail in each print.
Full Speed Ahead
The Photon Mono M7 Pro can reach speeds of up to 130mm/h for standard prints and up to 170mm/h for High-speed printing at 0.1mm layer height, being one of the fastest resin printers on the market.
Uninterrupted, Unstoppable - Resin Auto-fill
With the use of an automated resin fill unit, the printer will automatically fill the vat with new resin when needed, and it will also help unload the resin from the vat after the print is completed.
Dynamic temperature control resin vat
The Auto-Adaptive Technology Control Heating provides automation for the heating of the vat and resin, eliminating the hassle of dealing with settings, making the process of printing with resin much easier and consistent.
14K High-Precision Optical System
The 10.1”, 14K (13320 * 5120) High-Precision Optical System allows for the prints to be fast, and also highly detailed to ensure the best print results.
LighTurbo 3.0
The COB light source system, combined with Fresnel lenses and front-facing reflectors, Light uniformity on the screen is ≥90% and achieve model accuracy errors of ± 0.01-0.05mm
Leveling Free
Automatic precise leveling and zeroing of the device, eliminating the need for manual leveling operations.
Complementary Anycubic AirPure
Built-in activated carbon filter and high-performance ventilation motor; VOC content purification efficiency reaches up to 99% in a single operation; Effectively absorbs and filters resin odors near the printing source, providing a cleaner and more reassuring user experience.
Construction an Technical Details | |
Resin Display Type | monochrome LCD |
Resin Display Resolution X | 13320 pixel |
Resin Display Resolution Y | 5120 pixel |
Recommended Max Printing Speed | 468000 mm/h (depends on material) |
Build Volume | 223 mm x 126 mm x 230 mm |
| |
Installation Space / Requirements | |
Overall Dimensions | 312 mm x 315 mm x 520 mm |
Net Weight | 12.8 kg |
Voltage | AC: V |
| |
Equipment | |
Hepa Filter | Yes |
Door Lock During Print | Yes |
Touch Screen | Yes |
| |
Connection | |
USB Port | Yes |
WLAN | Yes |
Cloud Control | Yes |
| |
Accuracy | |
Layer Height | 0.01 - 0.15 mm |
| |
| |
|
|
|
