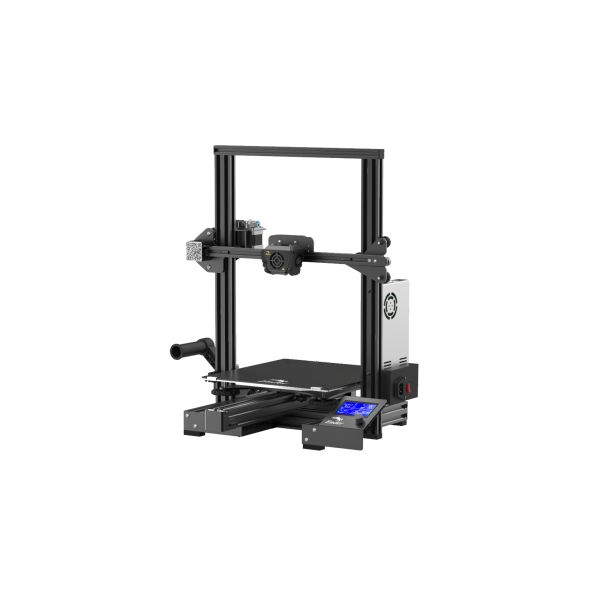

Ender 3 Max is the latest version of the popular Ender 3 series from the well-known manufacturer – Creality. It´s an affordable, large size printer that have a print volume of 300 x 300 x 340mm.
Heated build platform
The build plate can be heated to a maximum of 100°C. Thanks to this you print most common filaments such as PLA, PLA Tough, PETG and other similar materials without running the risk of warping.
Borosilicate glass plate
Thanks to the very hard glass plate you will get silky smooth prints that sticks very well. For extra security wo do recommend using, for example, PrimaFIX to make you prints stick even better.
Dual cooling fans
The dual axial cooling fan always makes sure that the filament cools down as quickly as possible. The is very important if you print much in PLA.
Powerful hot end
The Ender 3 max is equipped with a modular hot end. This ensures that your result always will be the best possible
Resume print function
Did the power suddenly or accidentally go off? No worries! The Ender 3 Max 3D Printer will resume printing if the power supply is interrupted. That’s right—you can forget about starting over because print failure is no longer an issue!
Intelligent sensor with filament breakage detector
Sometimes filament can run out, or in worst case – break. Thanks to the new intelligent sensor, the printer will stop the current print so you can change filament. Once that is don, you can continue the print as nothing had happened.
Power when you need it
The 350-w power supply makes sure that you have a perfect flow of power in every situation. You can switch between 100V – 240V.
High performance drivers
Thanks to the TMC2208 drivers that are in use in the X and Y axis, you will get a very smooth and silent running
Upgrade friendly
The manual leveling system works very well, but if you for some reason would prefer a auto level-system, the Ender3 Max in prepared for this. There is already space reserved for this option on the printer.
| Construction an Technical Details | |
| Usable Nozzle Typ | MK8 |
| Usable Filament Diameter | 1,75 mm |
| Nozzle Temperatur Max | 250 °C |
| Open Filament System | Yes |
| Extruder Typ | Bowden |
| Printing Speed Max | 180 mm/s (depends on material) |
| Build Area | 300 mm x 300 mm x 340 mm |
| Heated Build Plate | Yes |
| Build Plate Temperature Max | 100 ºC |
| Build Plate Material | Carborundum glass plate |
| Build Plate Attachment | clamp |
| Build Plate Leveling System | BL-Touch optional |
| Build Chamber During Process | Open |
| Extruder Number | 1 |
| | |
| Installation Space / Requirements | |
| Total Mass | 513 mm x 563 mm x 590 mm |
| Total Weight | 9,5 kg |
| Power Consumption Max | 350 W |
| Voltage | AC: 100 V - 240 V (50/60 Hz) DC: 24 V |
| | |
| Equipment | |
| Filament Runout Sensor | Yes |
| Powerloss Fail Safe | Yes |
| | |
| Connection | |
| Memory Card | Yes, micro-SD |
| USB | Yes, 1x micro USB |
| | |
| Accuracy | |
| Layer Height | 0,1 mm - 0,4 mm |
| Resolution | 0,1 mm |
