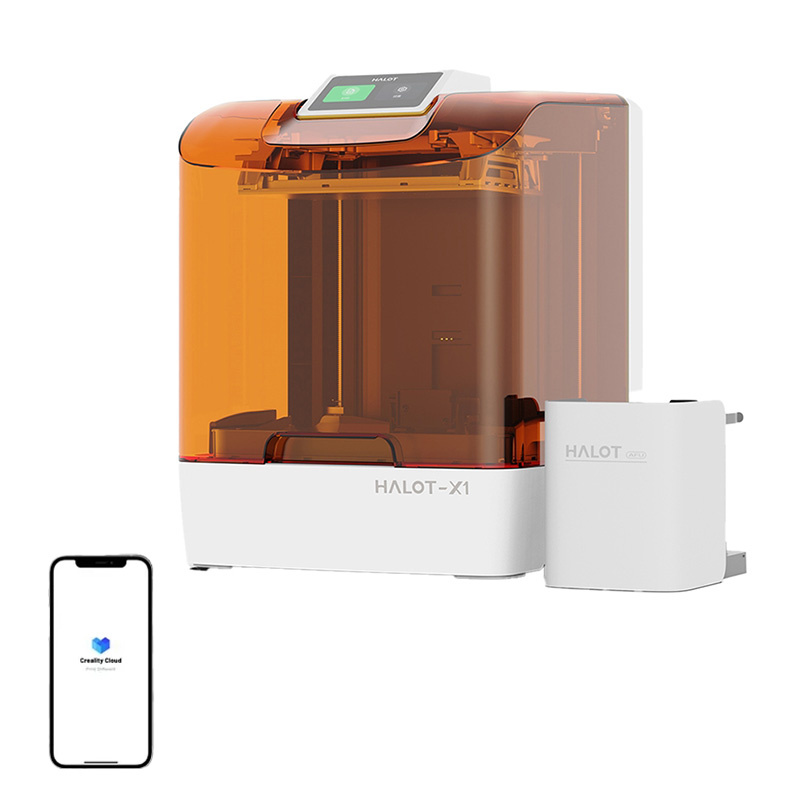

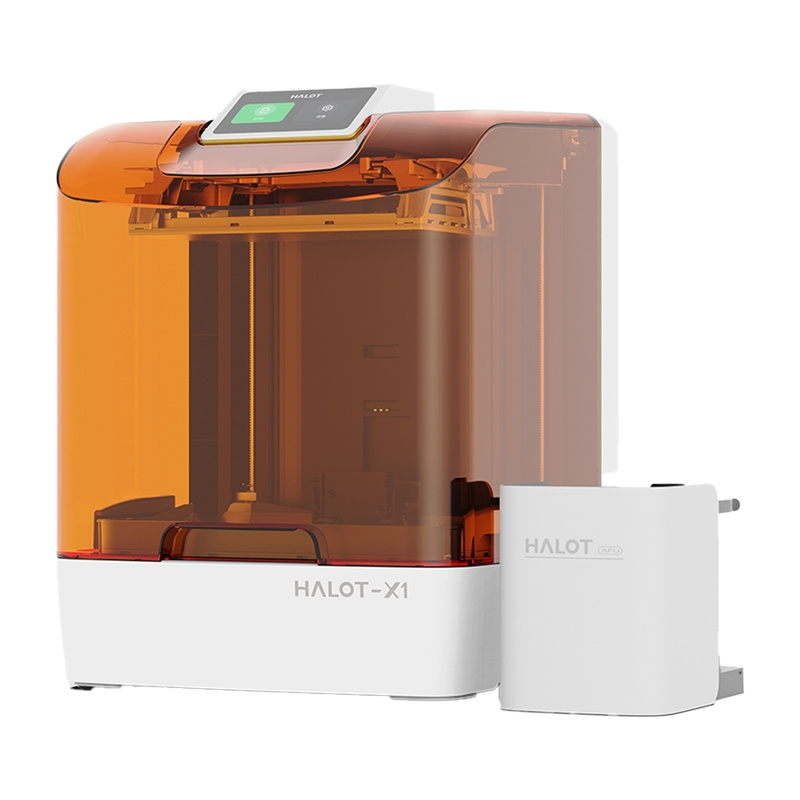

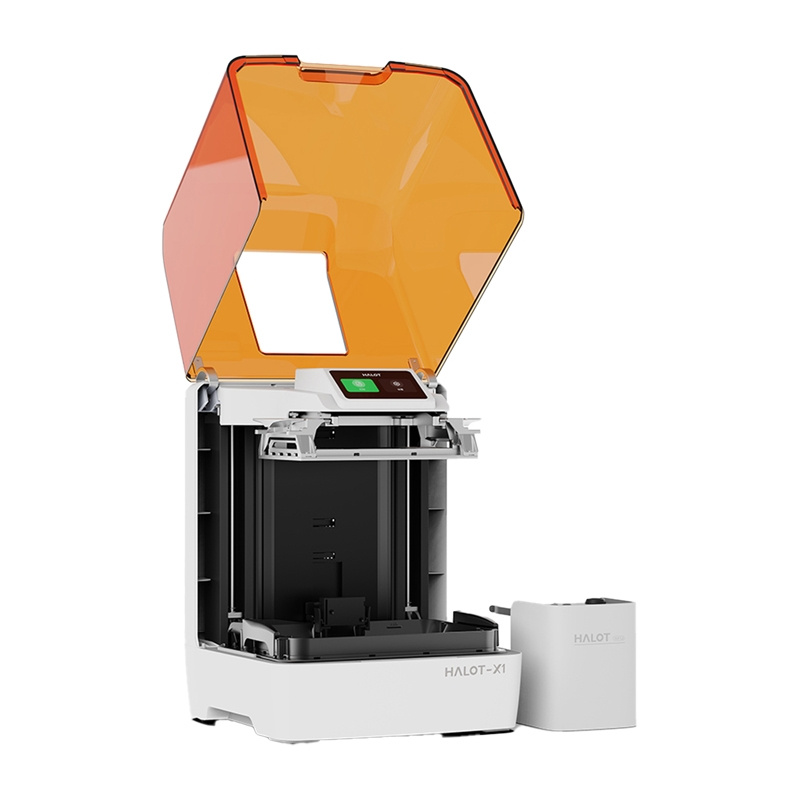

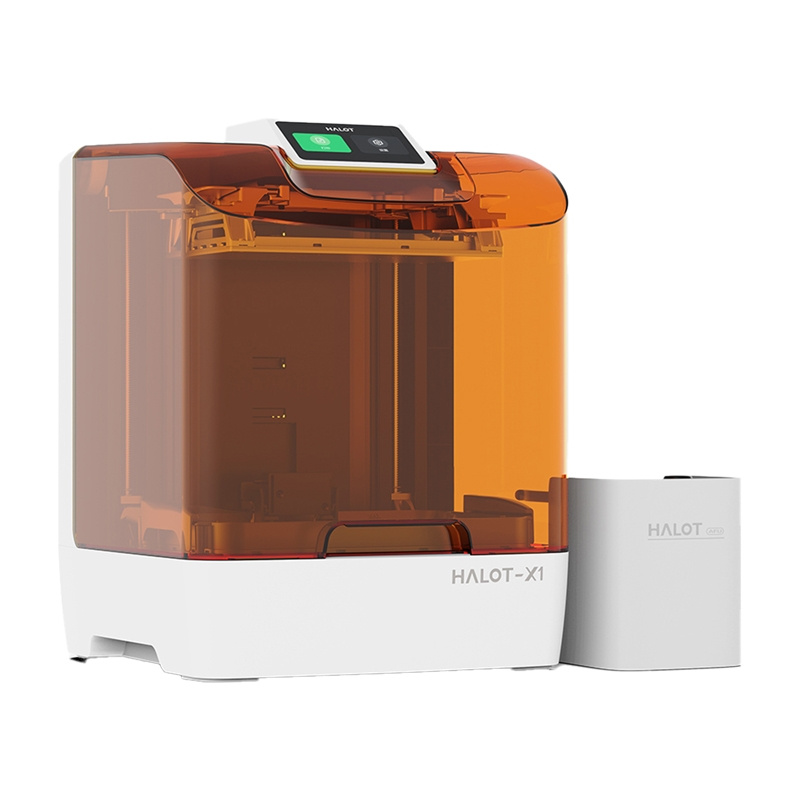

Creality Halot X1 Combo 3D Printer
The Creality Halot X1 Combo is an LCD resin printer that redefines the ease and precision of 3D printing. It combines ease of use with professional-grade features to create a complete solution for hobbyists, designers, and engineers. The technologies used - from the intelligent resin feeding system to the matrix light source and 16K display - provide unparalleled precision, speed, and reliability. The kit includes not only the printer, but also the AFU (Auto Feed Unit).
No leveling required
The Halot X1 does not require manual leveling - it is ready to go almost immediately after being powered on. Instead of several minutes of complicated setup, one touch of the screen is enough - the device automatically calibrates the platform and allows you to start printing immediately. This is a significant convenience for both novice users and professionals who want to save time.
16K mono LCD display and large working area
The device is equipped with a 16K resolution LCD display, which guarantees excellent accuracy and rich detail. The 14 × 19 μm pixel size allows you to create models with a quality that is unattainable by lower-end printers. It is ideal for printing miniatures, collectibles and precision technical parts. At the same time, the Halot X1 offers a working area of 211.68 × 118.37 × 200 mm, ideal for decorations, prototypes or jewelry. Print toys, birthday gifts, ornaments, toy figures and much more!
Intelligent resin management system - Automatic feeding unit
The Halot X1 Combo also includes a smart Auto Feed Unit (AFU) that automates resin management. It offers automatic material feeding and draining, material type recognition, heating to the optimal temperature, and real-time preview of the resin quantity in the tank. After placing a resin bottle with an RFID tag in the unit, the printer itself reads its parameters and downloads the corresponding profile from the cloud. This eliminates the need for manual configuration and helps avoid errors.
Improved design and performance
The Halot X1 printer is designed for stability and ease of use. A new support structure minimizes vibration and a quick-release work plate makes it easy to remove prints. A high-precision Z-axis guide with an accuracy of 0.01 mm ensures smooth movement and uniform layers in the range of 0.01-0.2 mm, while the high printing speed - up to 170 mm/h - helps reduce project turnaround times. The Halot X1 also uses a Honeycomb Matrix light source that provides uniform illumination across the entire work surface. High exposure intensity (6500 ±10% µW/cm²) increases printing speed without sacrificing quality, while the intelligent 92-zone exposure system adapts to the model geometry, improving detail reproduction.
Easy operation and software compatibility
The printer works with the special HALOT BOX software and the popular ChituBox, allowing for complete hardware and software integration. A 3.98-inch touch screen is also at your disposal for convenient operation of the device.
Included
- Creality Halot X5 3D Printer
- AFU unit
| Manufacturer | Creality |
|---|
| Name | Halot X1 Combo |
|---|
| Model | 1203040118 |
|---|
| Work area | 211.68 × 118.37 × 200mm |
|---|
| Printer dimensions | 344 × 331 × 434mm |
|---|
| Weight | 12.75 kg |
|---|
| Printing technology | LCD |
|---|
| Light source | Honeycomb matrix |
|---|
| Exposure intensity | 6500 ±10% µW/cm² |
|---|
| Screen resolution | 16K (15120 × 6230 pixels) |
|---|
| Pixel size | 14 × 19 µm |
|---|
| Z-axis accuracy | 0.01mm |
|---|
| Layer thickness | 0.01-0.2mm |
|---|
| Printing speed | Up to 170 mm/hour |
|---|
| Touch screen | 3.98 inch capacitive screen |
|---|
| Software | HALOT BOX / Chitu Box |
|---|
| Data transfer | USB / Wi-Fi |
|---|
| Input voltage | 100-120 V~ 200-240 V~, 50/60 Hz |
|---|
| Force | 350W |
|---|
