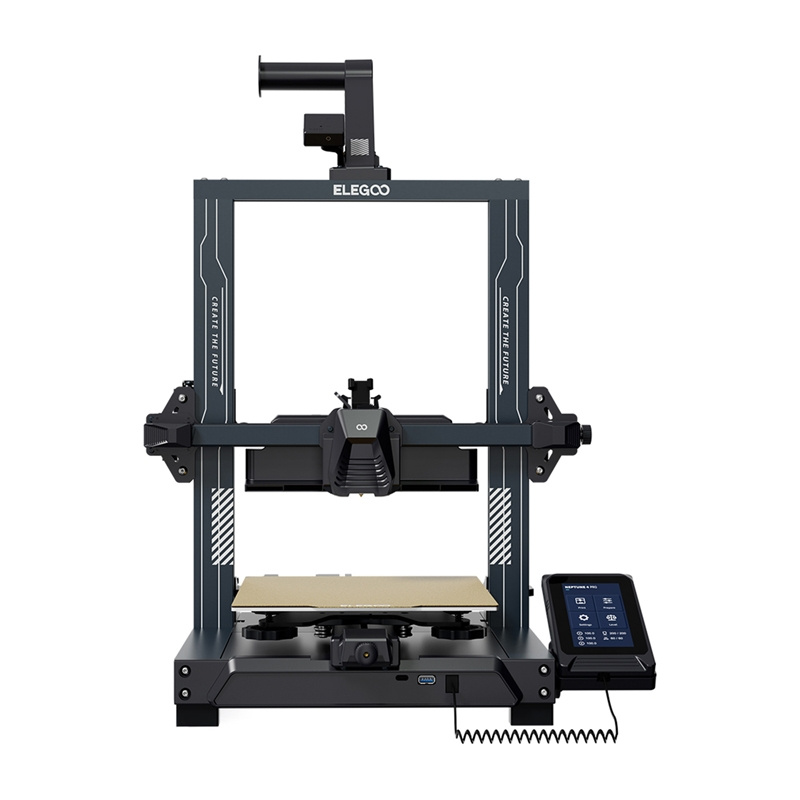

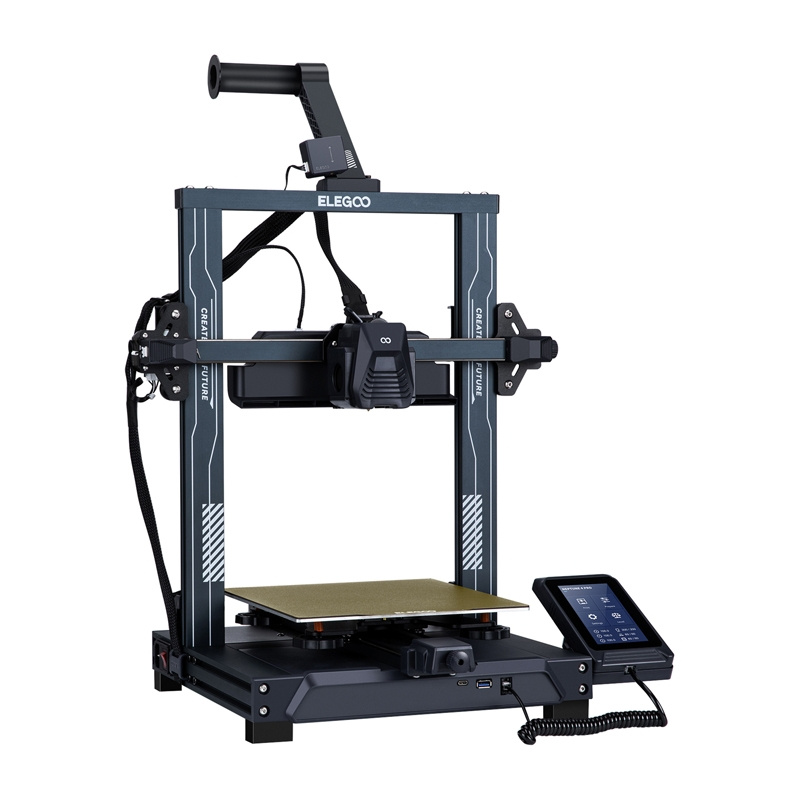

ELEGOO Neptune 4 Pro 3D Printer

ELEGOO Neptune 4 Pro 3D Printer

The ELEGOO Neptune 4 Pro is a state-of-the-art FDM (Fused Deposition Modeling) 3D printer that combines high speed, precision and robust design. Based on the Klipper motherboard, it offers a large 225 × 225 × 265 mm build area and printing temperatures up to 300°C, while allowing you to use a wide range of filaments - from PLA (Polylactic Acid) and PETG (Polyethylene Terephthalate Glycol) to ABS (Acrylonitrile Butadiene Styrene), TPU (Thermoplastic Polyurethane) or nylon. With a powerful extruder and 121-point auto-leveling, the Neptune 4 Pro can handle both rapid prototyping and large, demanding technical prints.

Fast printing without compromise

The printer reaches a maximum speed of 500 mm/s, with a recommended speed of 250 mm/s, guaranteeing excellent quality with short waiting times. With the support of the Klipper motherboard, a powerful ARM (Advanced RISC Machine, advanced RISC architecture) 64-bit 1.5G quad-core processor and features such as Input Shaping and Pressure Advance - it provides an extremely smooth model surface and uniform filament sealing. It is an excellent choice for those who expect not only accuracy, but also real time savings.

Efficient cooling system, thoughtful table design

Two 4015 double-sided fans and four 4020 fans ensure effective heat dissipation and cooling of printed models. In addition, the device's heating table is divided into two sections with different power - 150 W and 100 W. This solution guarantees lower energy consumption and protects against overheating, resulting in more stable and safer operation.

Improved hotend and efficient extruder

The Neptune 4 Pro is equipped with a high-performance direct-type extruder with dual gears, which ensures accurate and consistent filament feeding, regardless of the type. In addition, the hotend with an improved design uses a copper-titanium heat pipe and a nozzle capable of operating at 300°C. This solution allows printing from a wide range of materials, including those requiring higher temperatures and better flow.

Guidance stability and structural rigidity

The printer is equipped with metal guides on the X and Y axes, which, combined with double U-shaped bearings, ensure smooth, precise and stable guidance of the print head. In addition, a reinforced, widened profile on the Y axis increases the rigidity of the entire structure, resulting in higher print quality, especially at high speeds.

Self-leveling and flexible platform

The printer uses automatic bed leveling at up to 121 points (11×11 grid), which ensures perfect adhesion and a perfectly aligned first layer. In addition, the user can use the buttons under the work platform to manually adjust the level - for even greater precision and full control of the printing process.

Intuitive operation and flexible communication

A detachable 4.3" touchscreen allows you to easily preview your model and pause printing. In addition, the printer allows you to transfer files via USB (Universal Serial Bus, a universal connection for data and power) or LAN (Local Area Network, a local computer network).

Additional features

With a filament sensor and a resume after interruption function, you can be sure that your print won't fail, even if something unexpected happens. LED (light-emitting diode) lighting in the nozzle makes it easy to see details up close, while an additional LED strip provides even illumination across the work area.

More space for your ideas

The Neptune 4 PRO offers a working space of 225 × 225 × 265 mm, allowing you to create both small prototypes and more elaborate models. This volume gives you great design freedom without having to divide models into parts.
