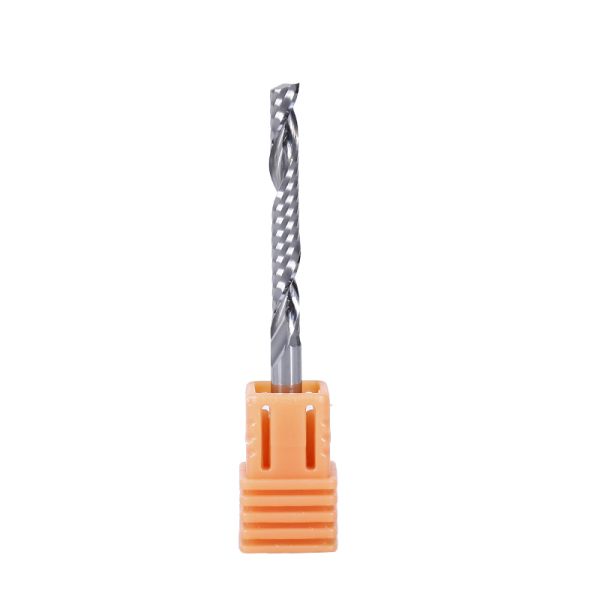

6x17mm single flute Spiral Carbide CNC Router Bits Single Flute Tools

DOWN-Cut Cutters Description:

1. Made of: top-quality imported micro-grain tungsten steel carbide;

2. Type: DOWN-Cut / Left-helical Single Flute Spiral Cutters;

3. Shank Diameter: 6mm / 0.236";

4. Cutting Edge Diameter: 6mm / 0.236";

5. Cutting Length: 17mm / 0.866";

6. Overall Length: 50mm / 1.968".

Application:

Cutting, slot grooving, milling on:

• Acrylic, PVC, resin, nylon, plastic;

• MDF, plywood, soft wood;

• Aluminum composite panel;

• And soft phone panel (PMMA, PET, PC), solid surface (SP), Polycarbonates, etc;

Features:

• Select superior quality imported tungsten steel carbide materials; fine polishing processing;

• Combine big load chip groove, very sharp cutting edge compared with spiral flutes, can greatly improve production efficiency and quality;

• Smooth clean cutting, without burrs;

• Not easy to warp during processing;

• High finish, not easy to break;

Specification / Available Sizes:

(1) Diameter: 0.125" / 0.16" / 0.24" / 0.32" (3.175mm/4mm/6mm/8mm);

(2) To order, please specify the model you like.

CED: Cutting Edge Diameter;

CEL: Cutting Edge Length;

OVL: Overall Length;
