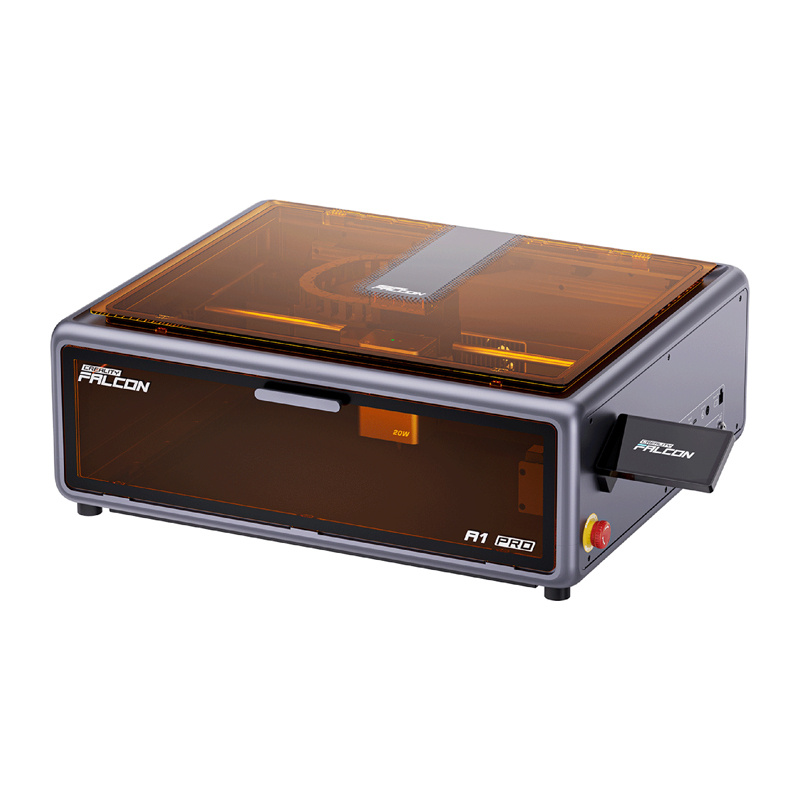

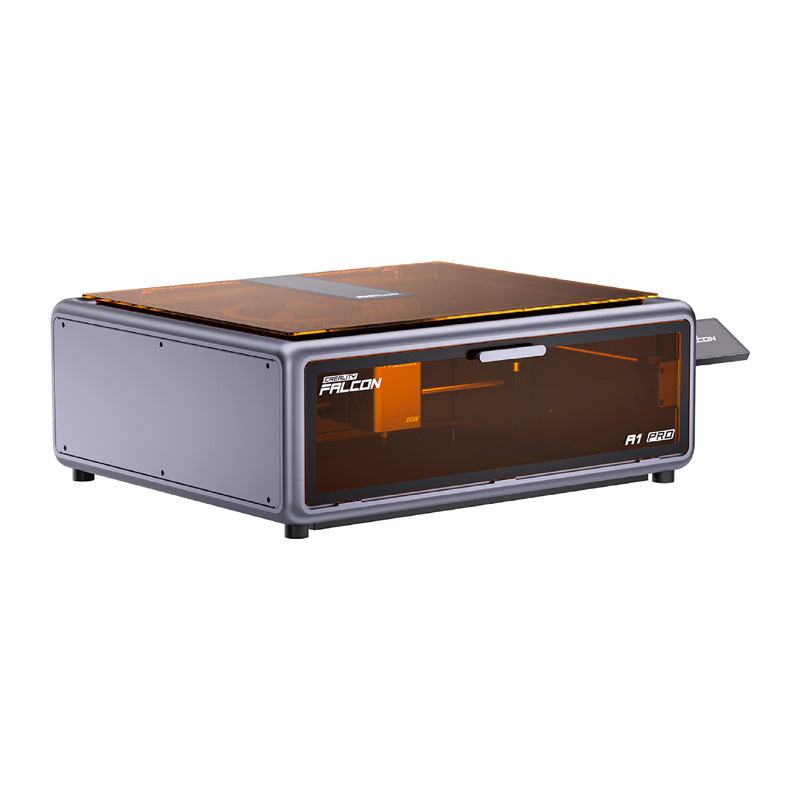

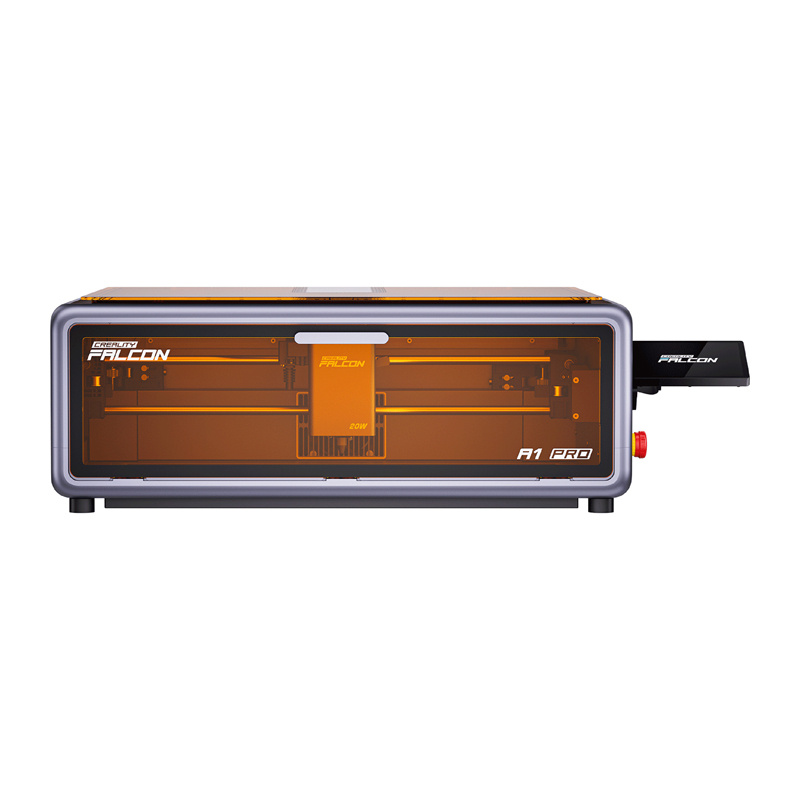

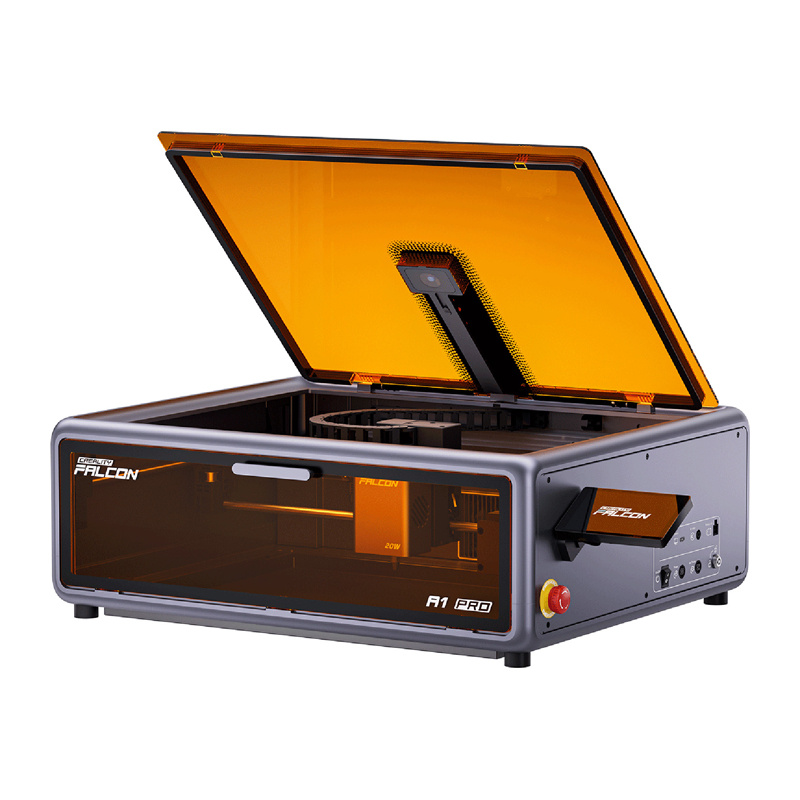

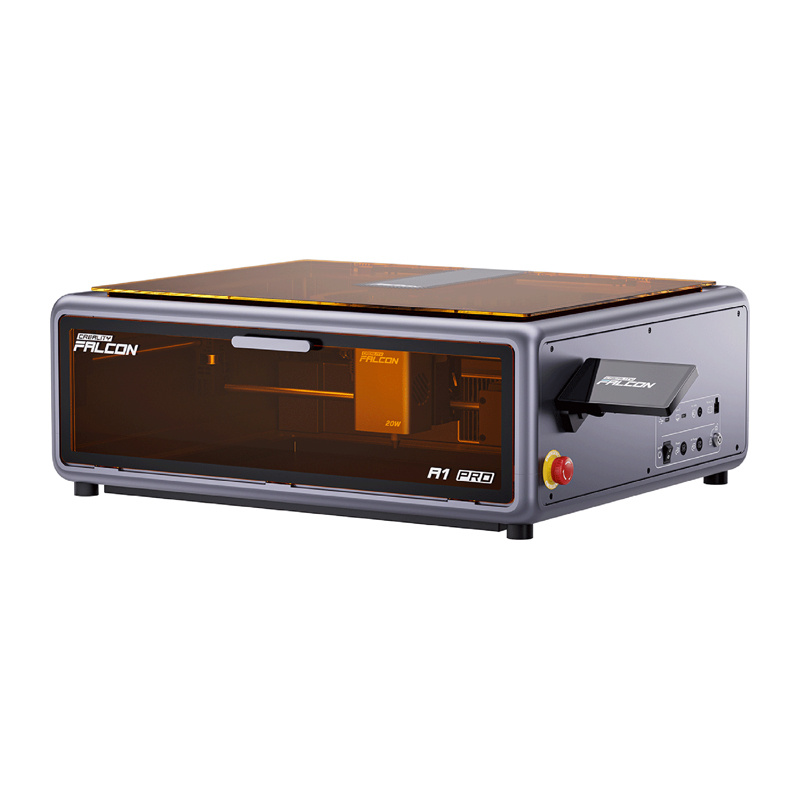

Creality Falcon A1 Pro 20W Laser Engraver
The Creality Falcon A1 Pro is an advanced laser engraving tool designed for users who demand the highest build quality, material flexibility, and comfort. The device combines two interchangeable lasers, intelligent artificial intelligence systems, a closed class 1 design, and solutions that allow you to start working right out of the box, without the need for setup or time-consuming configurations. Choose smart solutions and choose the Falcon A1 Pro today.
Two laser units
The 20W blue diode laser is designed for cutting and engraving materials such as wood, acrylic, stainless steel, glass, painted metal, stone, fabric, leather, paper and felt. It can easily cut 10mm ash plywood and 8mm black acrylic. The 2W IR laser opens up completely new possibilities for working with metals and plastics, allowing for precise marking and engraving where standard diode lasers are inadequate. With this combination, a single device can handle projects that previously required several different machines.
No tools, no downtime
The device supports tool-free laser module replacement. The integrated Z-axis with dual cable clamp provides plug-and-play installation, saving time and eliminating the risk of errors. Changing the laser takes less time than it takes to brew a cup of coffee, allowing you to seamlessly switch between different production jobs. No setup, no calibration, and no additional preparation — just plug in and go.
High-level engraving
The Falcon A1 Pro is designed to handle the most demanding projects. The ultra-fine 0.03mm laser spot combined with 1064nm IR technology allows for exceptional detail. The device is ideal for engraving photos, jewelry, business cards or precise graphic details where every micrometer counts.
Systems supported by artificial intelligence
The integrated AI system combines an AI camera with a red measuring laser, providing autofocus in less than 3 seconds, measurement accuracy < 0.3 mm and a perfect first cut without trials and corrections. In addition, the HD camera allows for precise positioning, a full view of the work area and the elimination of blind spots during operation.
Fast, flexible and secure operation
The device reaches a working speed of up to 600 mm/s, which significantly increases productivity in serial production. The 358 × 268 mm working area allows you to perform larger projects or process several elements simultaneously in batch mode. With the mobile application, you can monitor the progress of the work in real time, wherever you are. The system allows for comfortable multitasking — the device informs you about the status of the work and you have full control without the need for constant supervision.
Protection without compromise
The Falcon A1 Pro is a fully enclosed Class 1 design, ready for safe operation in a home environment. It features a cover to protect your eyes from harmful laser light, a filtered smoke extraction system, two cooling fans on the head, automatic shutdown when the cover is opened, and an emergency stop button. In addition, the intelligent flame detection based on artificial intelligence detects fire in real time, immediately stops the device and sends a notification to the app. This solution is designed for maximum user and environmental safety.
Design with care
Despite its large work surface, the Falcon A1 Pro stands out for its space-saving design, taking up significantly less space than devices with similar capabilities. Its dimensions of 567 × 468 × 211 mm allow it to easily fit into almost any workspace. The large double window provides excellent visibility of the process without the need for protective glasses, while the filtering system ensures comfortable viewing. The integrated smart touchscreen provides quick access to file history, a clear view of the process and a clear workflow. You can monitor the laser operation directly on the screen and start tasks from the app with a single touch.
Included
- engraver
- exhaust pipe
- pipe clamp
- air support equipment
- silicone tube
- power supply
- ash wood (300 x 300 x 3 mm)
- calibration test card
- rotary set connection cable
- multi-level fixed focus block
- type A to type C cable
- antistatic brush
- L-key
- Allen key M1.5/M2/M2.5/M3
- tweezers
- dust-free cloth
- lens cover
- type A to type C adapter
- security key x2
- user manual
Generally
| Manufacturer | Creality |
|---|
| Model | Falcon A1 Pro |
|---|
| Engraving area | 268 x 358 mm |
|---|
| Optical power | 20W |
|---|
| Laser source | Semiconductor laser |
|---|
| Product dimensions | 567 x 468 x 211 mm (product dimensions after screen installation: 685 x 468 x 211 mm) |
|---|
| Laser wavelength | 455 1064±5nm |
|---|
| Weight | 16.8 kg |
|---|
| Security category | Category 1 (FDA) |
|---|
| Input voltage | 100–240 V~ 50–60 Hz |
|---|
| Output voltage | DC 24.0V 7.5A |
|---|
| Operating system | Windows/MacOS |
|---|
| Operating temperature | 5°C-35°C |
|---|
| Supported file formats | Jpeg, jpg, png, bmp, svg, dxf, etc. |
|---|
| Supported materials | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc. |
|---|
| Laser engraving software | Falcon Design Space, LightBurn, LaserGRBL |
|---|
| Security certifications | FDA, CE, ROHS, FCC, PSE |
|---|
2 W infrared laser
| Laser source | Semiconductor laser |
|---|
| Laser wavelength | 1064±1nm |
|---|
| Optical power | 2W |
|---|
| Supported materials | Gold, silver, brass, iron, aluminum, stainless steel, plastics, dark opaque materials, titanium alloy, galvanized metals, slate, ceramic pads, etc. |
|---|
