LONGER Nano Pro 12W Laser Engraving Machine

Longer Nano Pro (12 W) engraving laser

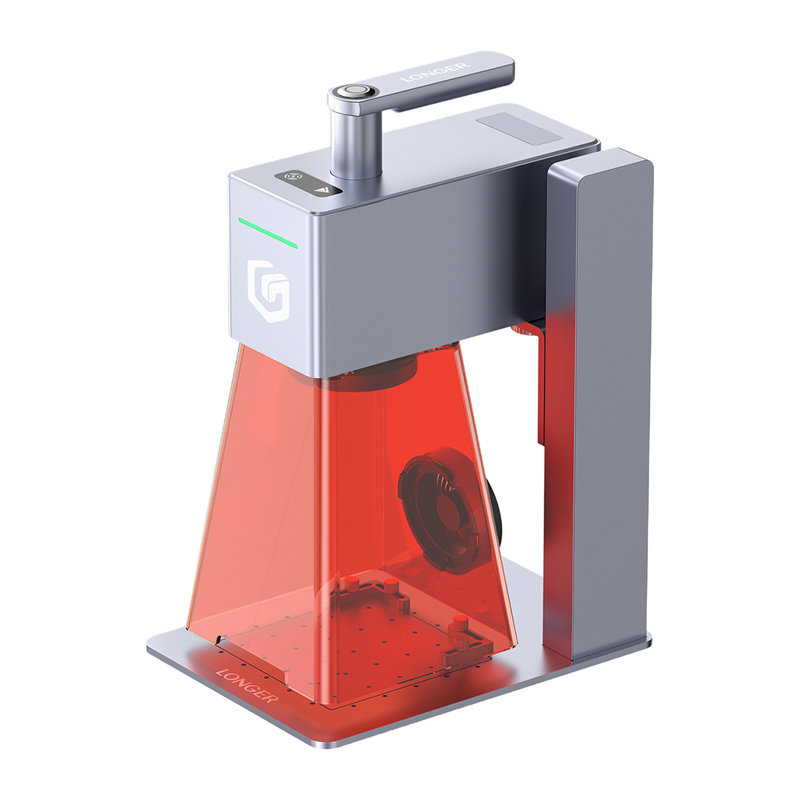

When a batch of products waiting to be personalized is on the table, the work rate becomes just as important as the accuracy of the design. The Longer Nano Pro 12 W combines a galvo system with a dual-diode laser with FAC 450 nm, achieving an engraving speed of up to 5000 mm/s with an accuracy of 0.01 mm. This means that even small inscriptions and micro-designs are created quickly, without losing the sharpness of the details. The compact design (220 × 162 × 304.5 mm) with a weight of 3.57 kg and an angle adjustment from 0 to 360° (in steps) allows you to work on both flat elements and three-dimensional objects. This allows you to mark gadget series, personalize products or prepare prototypes in a workshop, at a trade fair or in a mobile studio.

More projects in less time

The beam scanning from the galvanometer eliminates X/Y axis movement during engraving, so the head doesn’t waste time accelerating and decelerating the mechanisms. With speeds of 5000 mm/s, the engraving is created in a time that would take much longer with classic designs. In practice, this means you can mark entire batches of key chains, plates or model parts in a single cycle, instead of waiting for subsequent passes. Consistent quality at high speed ensures repeatability of the pattern – even in mass production.

Crisp details across the entire field

The F-theta field lens maintains focus and beam geometry across the entire work area, eliminating edge distortion. With an engraving accuracy of 0.01 × 0.01 mm, the pattern remains uniform from the center to the corners – without blurring or shifting proportions. The 3.3K resolution scanning system provides dense trajectory sampling, allowing for the accurate reproduction of subtle tonal transitions and fine details in graphics. This is important when the design covers a large area or has many small elements distributed across the entire field. You can prepare signs, jewelry details or miniature graphics and be sure that each part will maintain the same quality. It is this precision that allows you to transfer your design 1:1 from file to material.

One device for many materials

A 12 W diode laser with a wavelength of 450 nm allows you to engrave and cut – e.g. wood up to 10 mm – at a single workstation. The ability to handle materials such as wood, acrylic, leather, fabric, metal and ceramics allows you to perform a variety of projects without changing equipment. You can switch from marking logos on leather to decorative cuts on wood and engraving on anodized metal, while maintaining the same configuration. This simplifies the production process and reduces set-up time between jobs.

Marking cups and irregular shapes

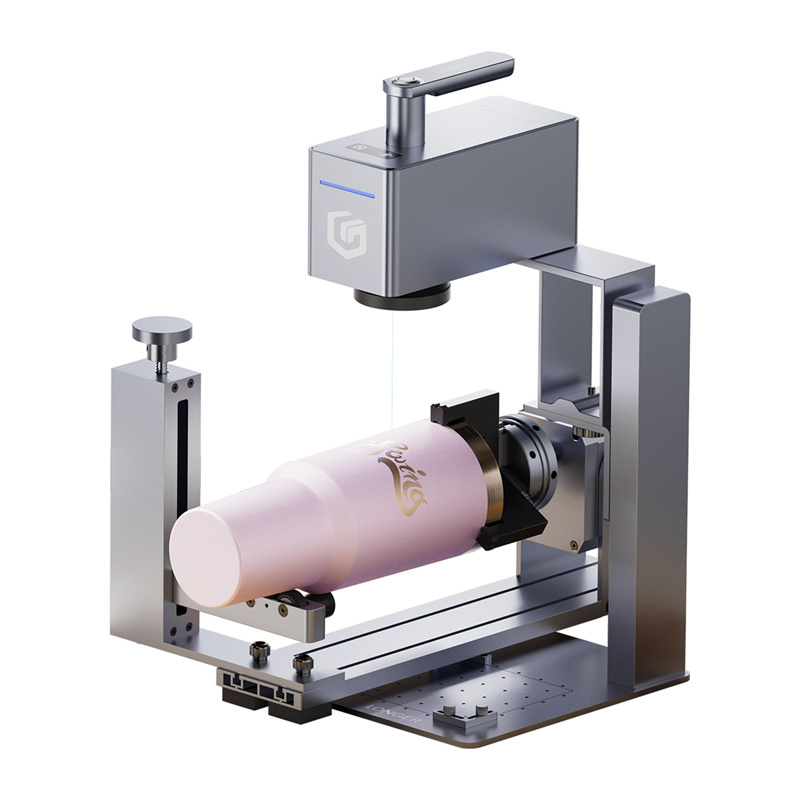

The head angle adjustment from 0 to 360° allows you to engrave on curved, cylindrical and non-standard surfaces. You can adjust the beam to the optimal angle to the cup, bottle or part of the model without improvised cushions and supports. A stable position lock maintains the engraving geometry throughout the work, even for longer runs. This makes the personalization of objects with an unusual shape predictable and repeatable.

Mobile work and larger projects after expansion

With dimensions of 220 × 162 × 304.5 mm and a light weight (3.57 kg), you can easily move the engraving tool between the studio, workshop and sales event. The standard 100 × 100 mm field can be expanded to 100 × 300 mm when the project requires a larger size, but this requires an additional accessory that is not included in the set. The electric height adjustment (lifting arm) makes it easy to adjust the focal length for different material thicknesses without manual distance. After removing the cover and base, the laser unit can also be operated in manual mode, guided along the surface of the object, which makes it easier to mark large or stationary objects without moving them around the work area.

Precise positioning without material loss

Wi-Fi and USB connectivity and a mobile app allow you to prepare a pattern, send it to the device and run it directly from your workstation. Outline and Contour preview with speeds up to 32,000 mm/s shows the exact trajectory before starting, so placement does not require trial engraving. Support for JPG, PNG, BMP, SVG, DXF and G-code formats, as well as compatibility with LightBurn, LaserGRBL and LaserBurn, make it easy to work with files from clients and your own projects. The system works on Windows, Mac, Linux, Android and iOS, allowing you to control it both from your studio computer and from your phone at your workstation.

Stable and safe operation in the laboratory and on the move

The aluminum alloy body ensures rigidity with low weight, which stabilizes the beam path during fast scanning. The protective cover and glasses included in the set increase protection during operation, while clear LED indicators inform you of the status: operation, positioning, pause or alarm. The focus provided by the infrared laser and the height adjustment maintain the correct distance of 151 mm from the surface, which reduces the risk of incorrect positioning. The 12 V 5 A power supply and the ability to operate continuously for over 7 hours allow for longer ranges without interruption.

Included:

• Laser unit
• Workbench with adjustable handle
• Protective cover
• Safety glasses
• L-shaped mounting elements
• Measuring ruler
• Serrated screws x4
• Angle adjustment button
• Glasses cleaning cloth
• Power supply
• USB-C cable (double-sided)
• Card reader
• TF card
• Data cable
• Consumables
