LONGER RAY5 mini 3.5W engraving laser

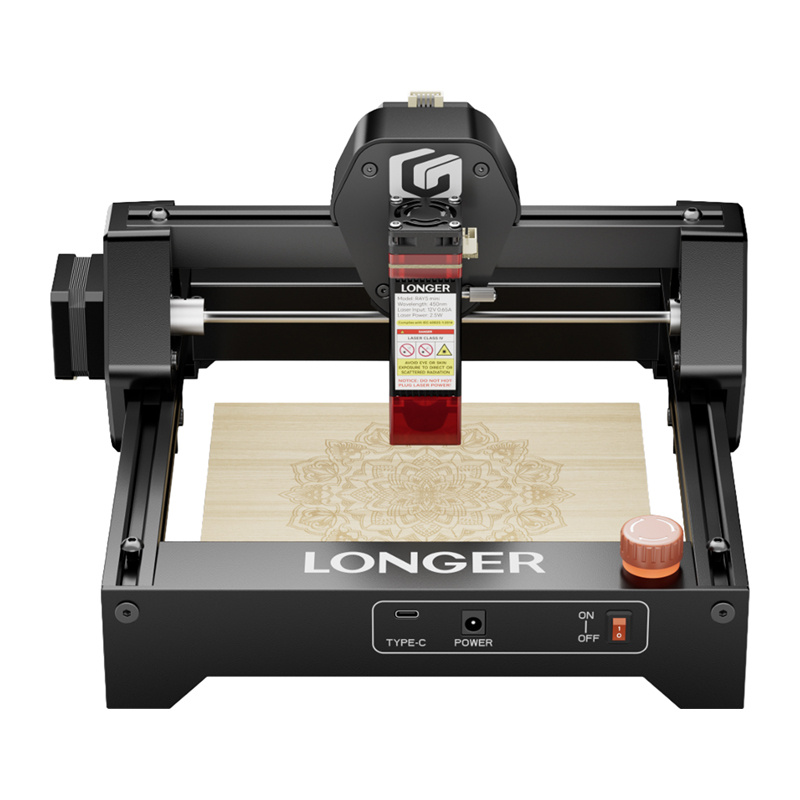

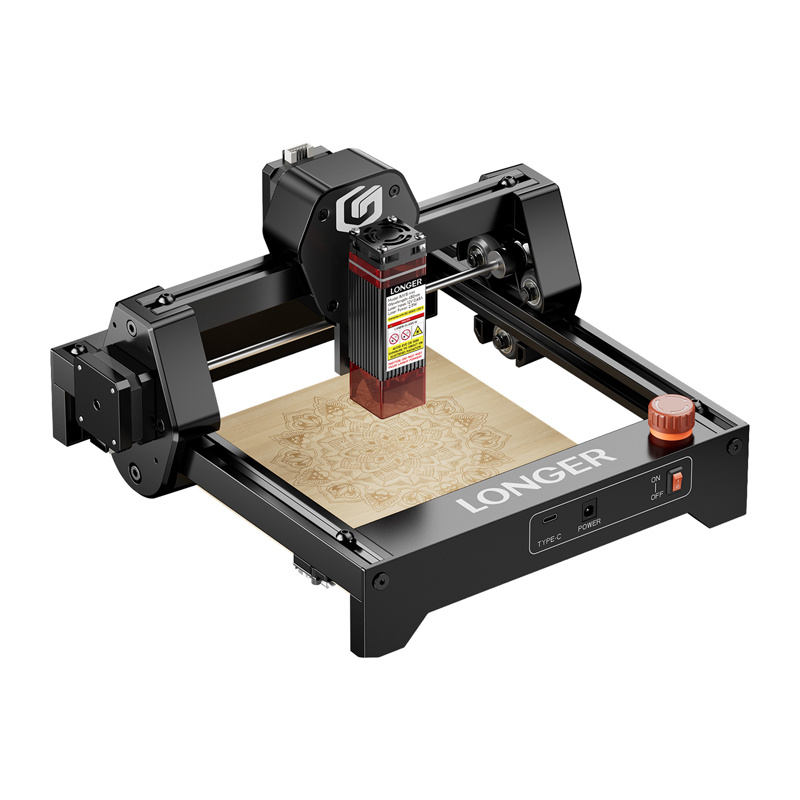

Longer Ray5 mini laser engraver (3.5 W)

Personalizing small objects, decorations or DIY prototypes at home? The Longer Ray5 mini engraver with 3.5 W diode laser lets you get started without having to rearrange your workspace or workshop. The device is factory-assembled, so you can start your first project right after purchase, instead of spending hours on assembly and calibration. The 130 × 140 mm work surface provides space for key chains, plaques or decorative elements, while the speed of up to 12,000 mm/min means that even larger designs can be created efficiently. The 0.04 mm laser spot and 450 nm wavelength allow you to reproduce details that are often lost or mixed up in this class of devices. This allows you to work precisely even in small spaces.

Details that really stand out

The 0.04 x 0.04 mm laser spot ensures that even very fine designs on wood, leather or metal remain clear and legible. Focusing the energy on such a small area allows you to engrave fine lines, small fonts and delicate decorative elements without losing sharpness. Whether you are preparing personalized gifts, DIY jewelry or originals, you can maintain accuracy even on a very small scale. Details such as leaf structure, fine typography and precise contours remain clear instead of blurring. This level of precision allows you to go from simple inscriptions to more complex, decorative patterns.

Shorter delivery time – from idea to final product

With a maximum head speed of 12,000 mm/min, even the most complex projects are completed efficiently and you don't have to spend hours at the machine. In practice, a small pattern measuring approximately 30 × 10 mm is created in approximately 3 minutes and a larger pattern of 100 × 100 mm in approximately 25 minutes, which clearly demonstrates the true speed of the device. When engraving a plate with graphics or a series of identical elements, subsequent copies are ready faster, so you can smoothly proceed to the next stage of the work. You will especially appreciate this for sales projects or personalized orders. Faster engraving also reduces the risk of overheating the material during long sessions, while the laser unit's lifespan of more than 10,000 hours allows you to maintain this performance even with regular, intensive use. This keeps the entire process stable and predictable even with more frequent use.

Create in wood, leather, metal and many other materials

A 130 × 140 mm field and compatibility with over 300 materials allow you to transfer an idea to different surfaces — from wood, acrylic and leather to metal, fabrics and ceramics. You can engrave decorative elements, signs, original elements or personalized accessories without changing the device. The FAC 3.5 W diode laser also allows you to cut thinner materials up to 12 mm thick (depending on their type and density), further expanding the range of DIY applications. The Longer Ray5 mini offers the flexibility to experiment and develop projects, rather than being limited to one type of substrate.

Beginner-friendly

The pre-assembled design makes the engraving tool ready to use almost immediately after connecting it. The 2 mm focus block helps you quickly set the correct distance between the laser and the material, so you don't have to guess or measure by eye. Support for LaserGRBL or LightBurn software allows you to easily load your design and start engraving in a familiar environment, while compatibility with JPG, PNG, BMP and DXF formats makes it easy to import files from various graphics and CAD programs. If you're just starting out, the transition from your first file to the physical result is short and intuitive. It's a solution that really shortens the path between your idea and the final object.

Freedom to work from your computer or phone – even offline

USB and Wi-Fi connectivity and the LaserBurn mobile app allow you to control the engraver from your computer or smartphone, depending on where you’re preparing your design, while compatibility with Windows, macOS, Linux, Android and iOS makes it easy to work across devices. Once the file is uploaded, offline work is possible, so the device doesn’t require a constant connection to a computer during engraving. In effect, you can prepare the design at your desk and start the process elsewhere in your workspace or studio. This is especially convenient when workspace is limited or shared.

Quiet operation thanks to design safety measures

Built-in X/Y axis limit switches control the range of head movement, preventing the working area from being exceeded during operation. A physical emergency stop button allows you to immediately stop the device in a situation that requires a reaction, without searching for options in the software. An acrylic protective screen and a laser module cover limit the spread of light towards the user. The set also includes safety glasses that increase safety when working with exposed material, while compliance with CE, FCC, FDA and RoHS standards confirms that it meets international safety standards.

Easy to transport and install wherever you create

As one of the smallest (286 x 292 x 165 mm) and lightest (1.47 kg) engraving machines in its class, the Longer Ray5 mini fits on a desk, shelf or mobile workbench without taking up much space. The desktop design with rigid aluminum alloy makes it easy to move between rooms, workshops and design stations, while the 12V power supply from a compact external adapter allows you to easily connect the device to different workspaces. If you are an occasional creator, you can store the equipment after work and set it up again in a matter of minutes. This makes engraving accessible even in a small home environment.

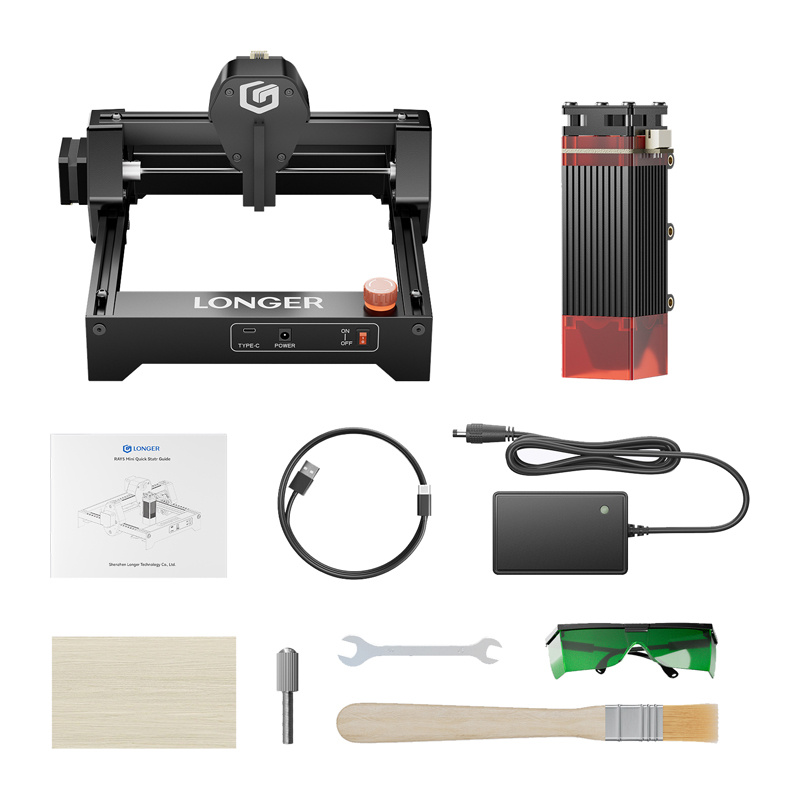

Included:

• Machine frame
• Laser unit
• Power supply
• Data cable
• Safety glasses
• Focus block
• Key
• Wooden brush
