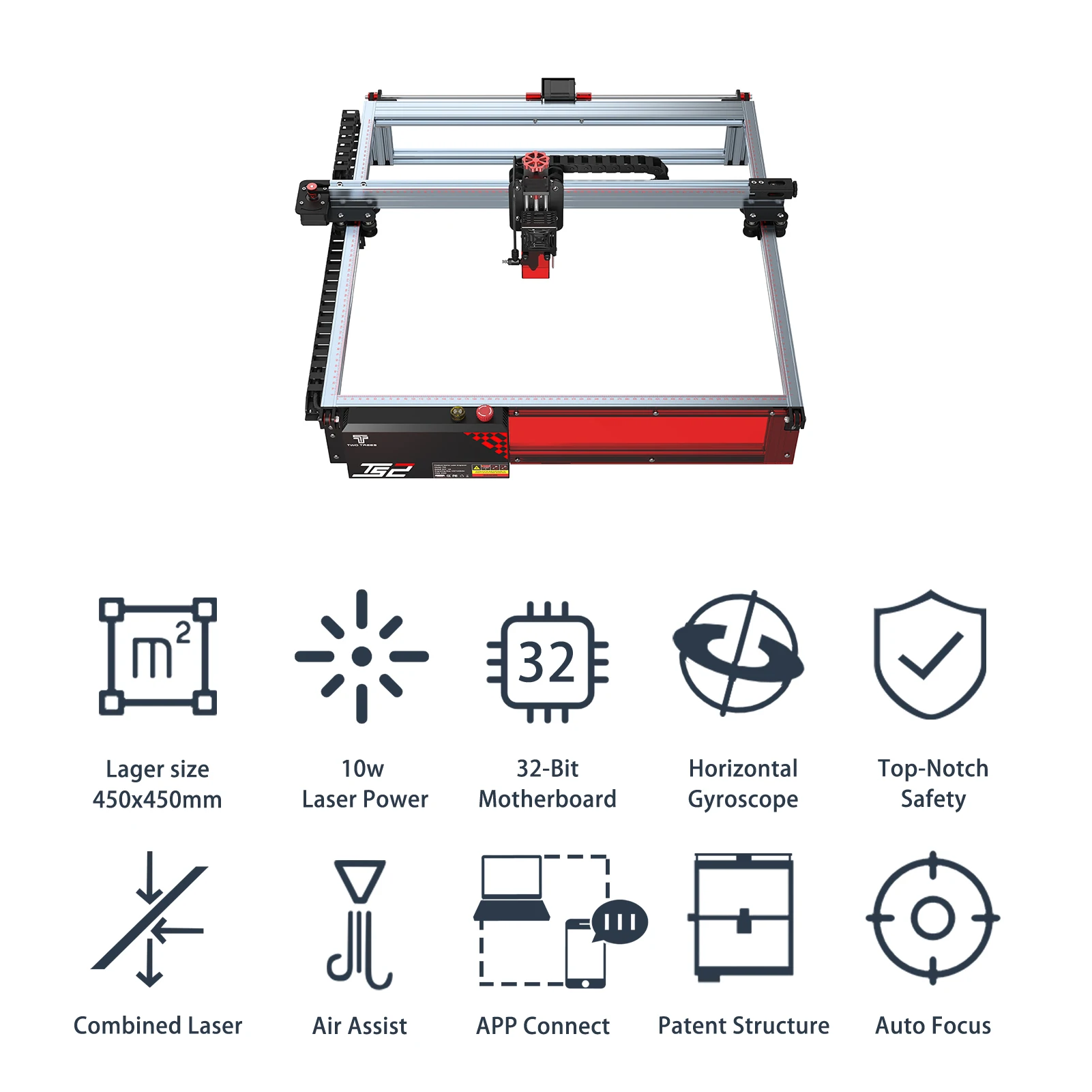

Features:

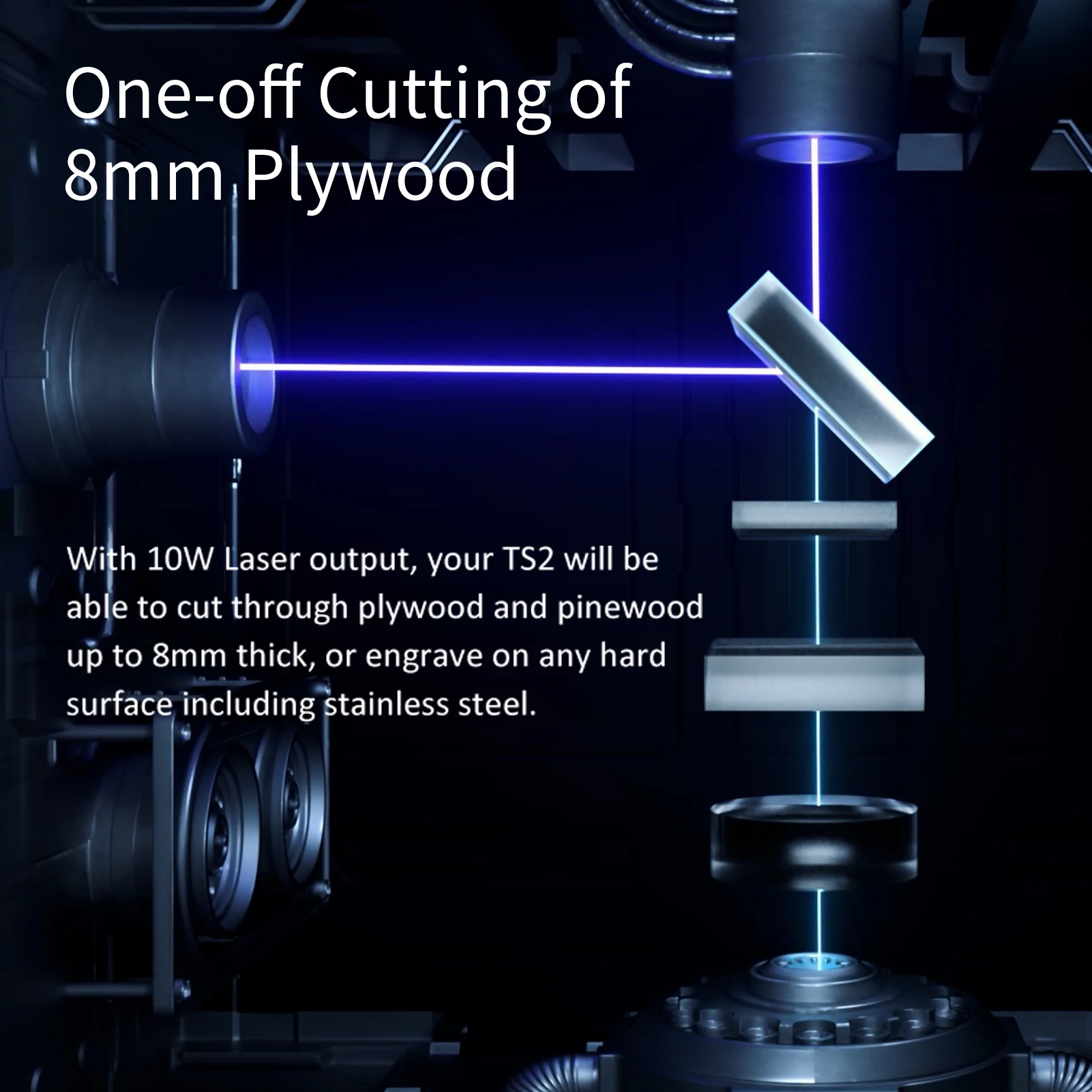

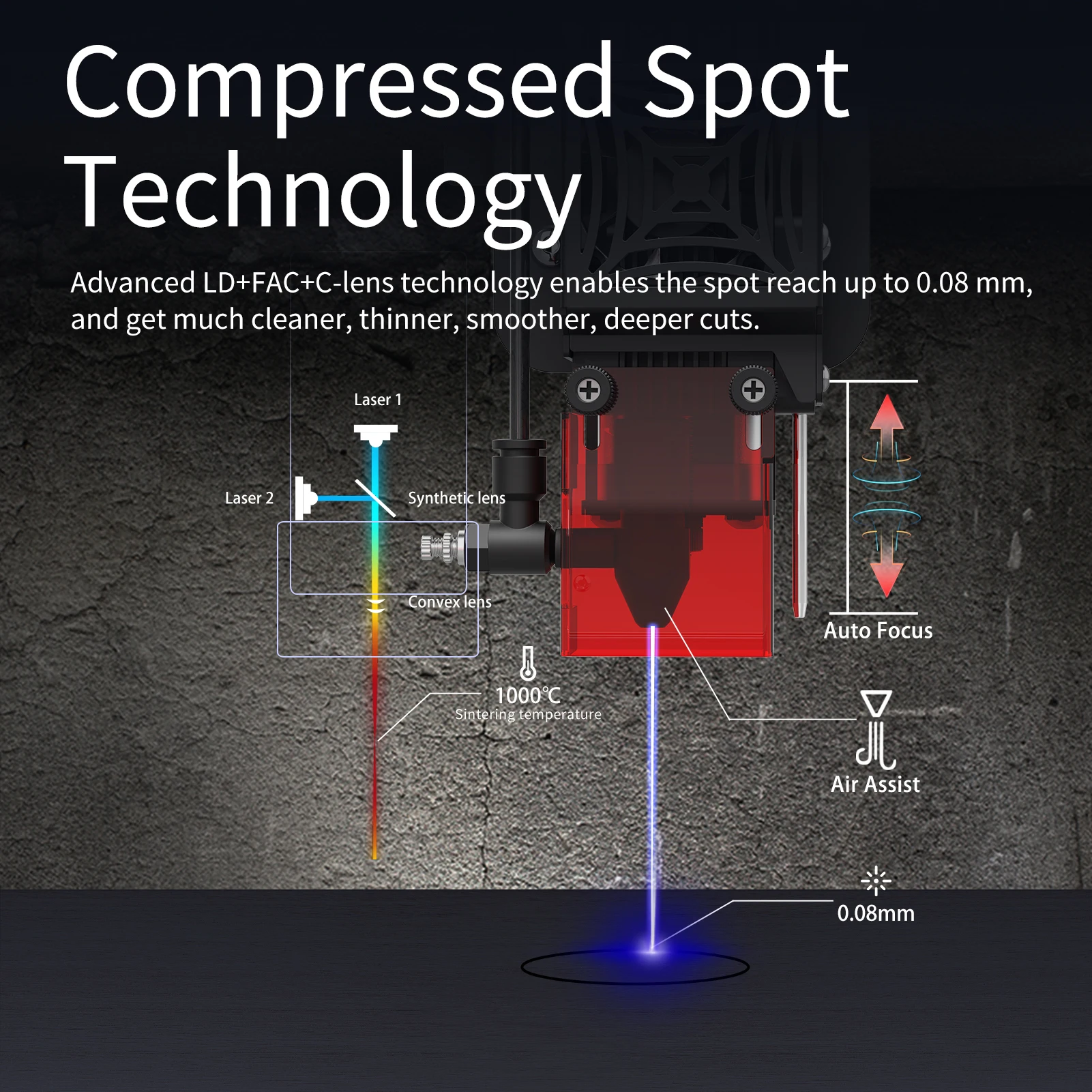

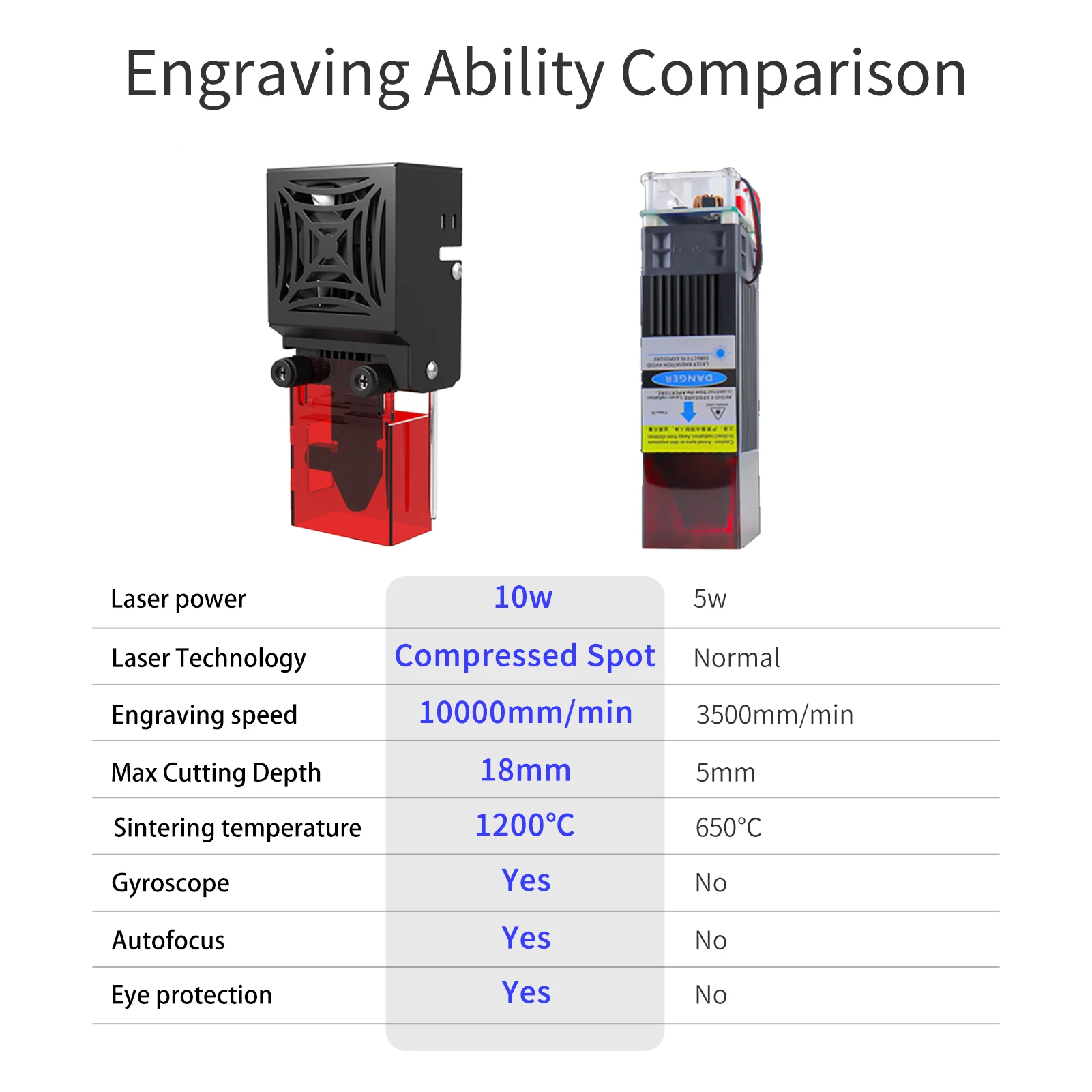

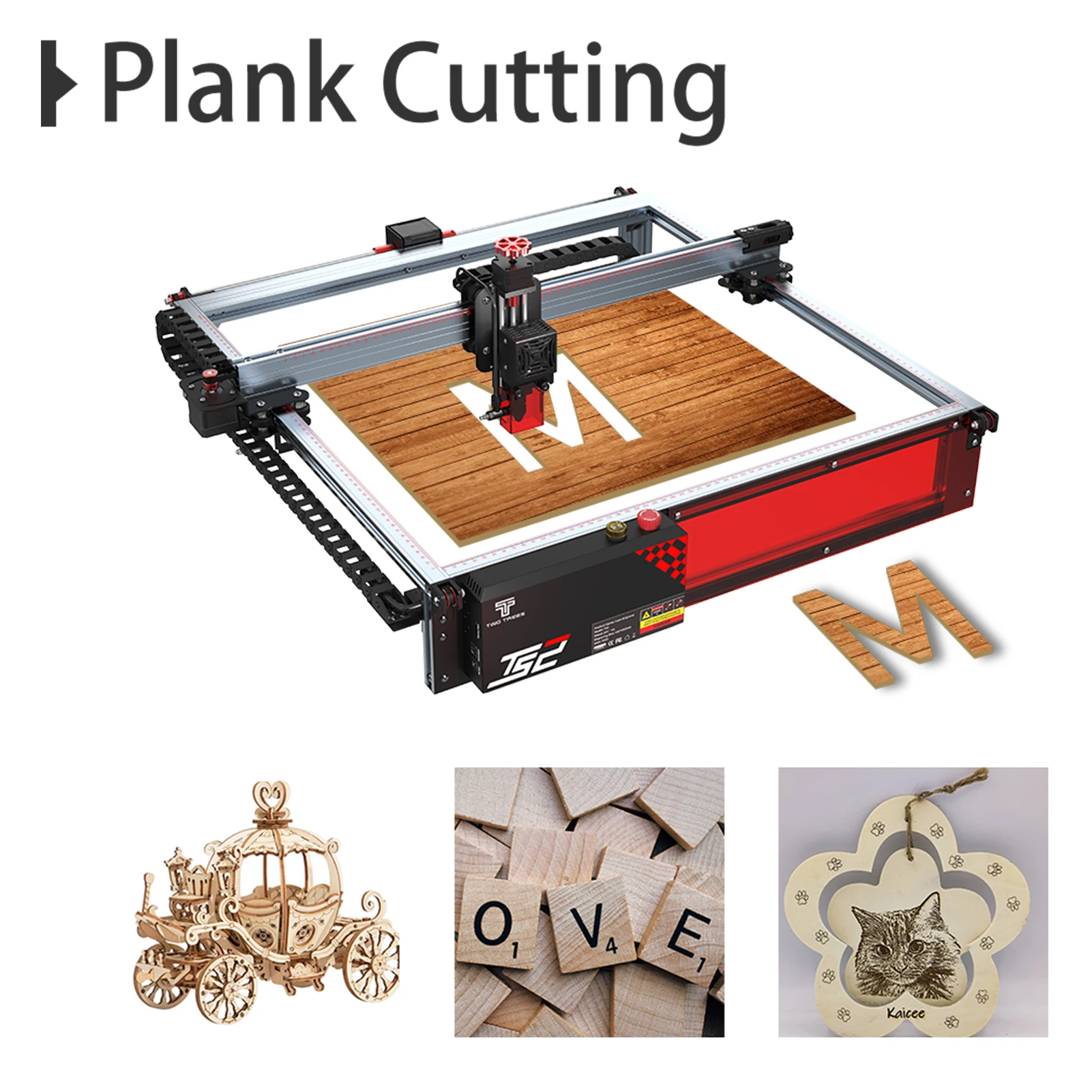

10W Laser Power - Advanced LD+FAC+C lens technology allows the spot to reach down to 0.08mm, and achieve much cleaner, finer, smoother and deeper cuts. Laser Autofocus, no need for manual adjustment. A 8mm plywood cutter, able to cut 18mm acrylic plate (black) and plywood multiple times.

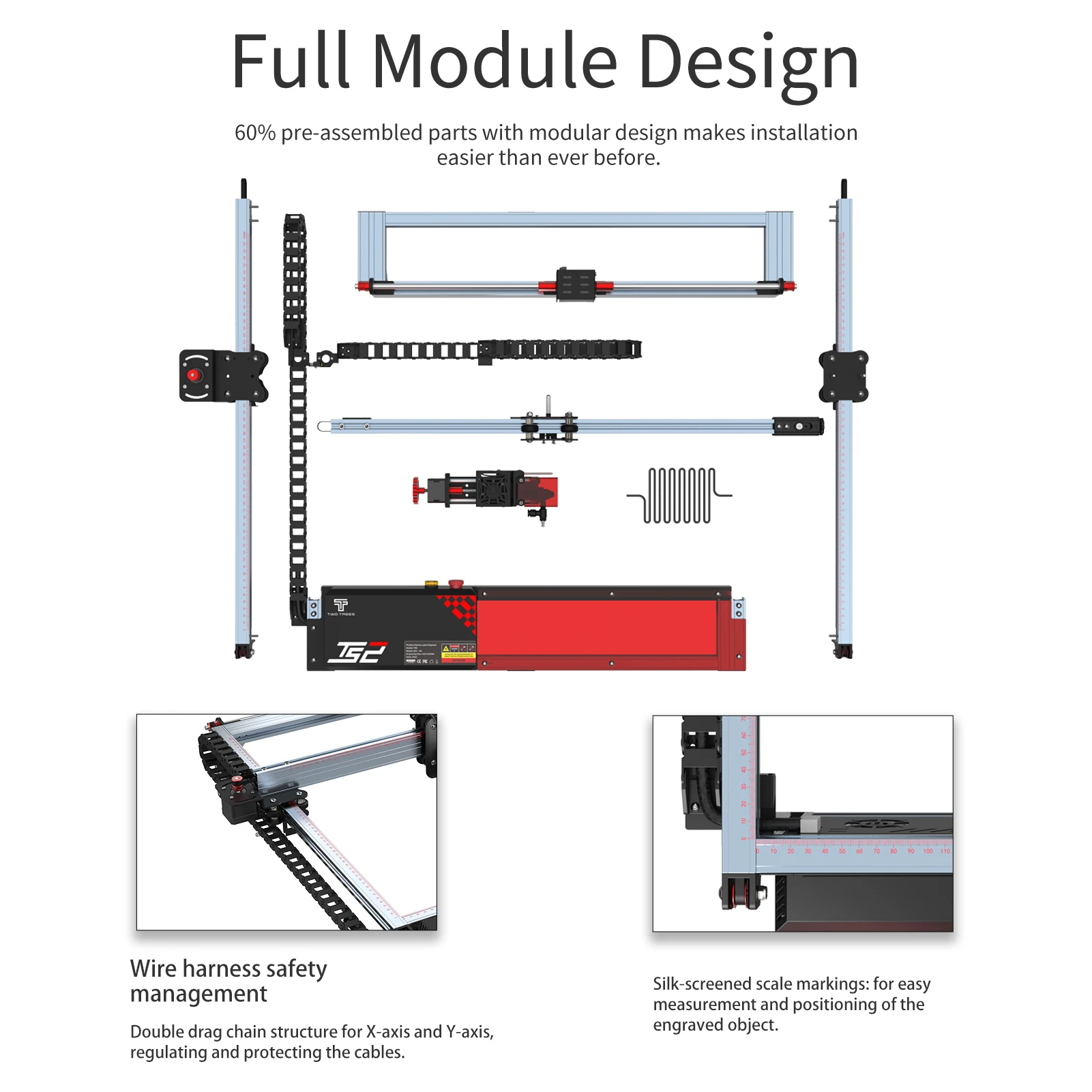

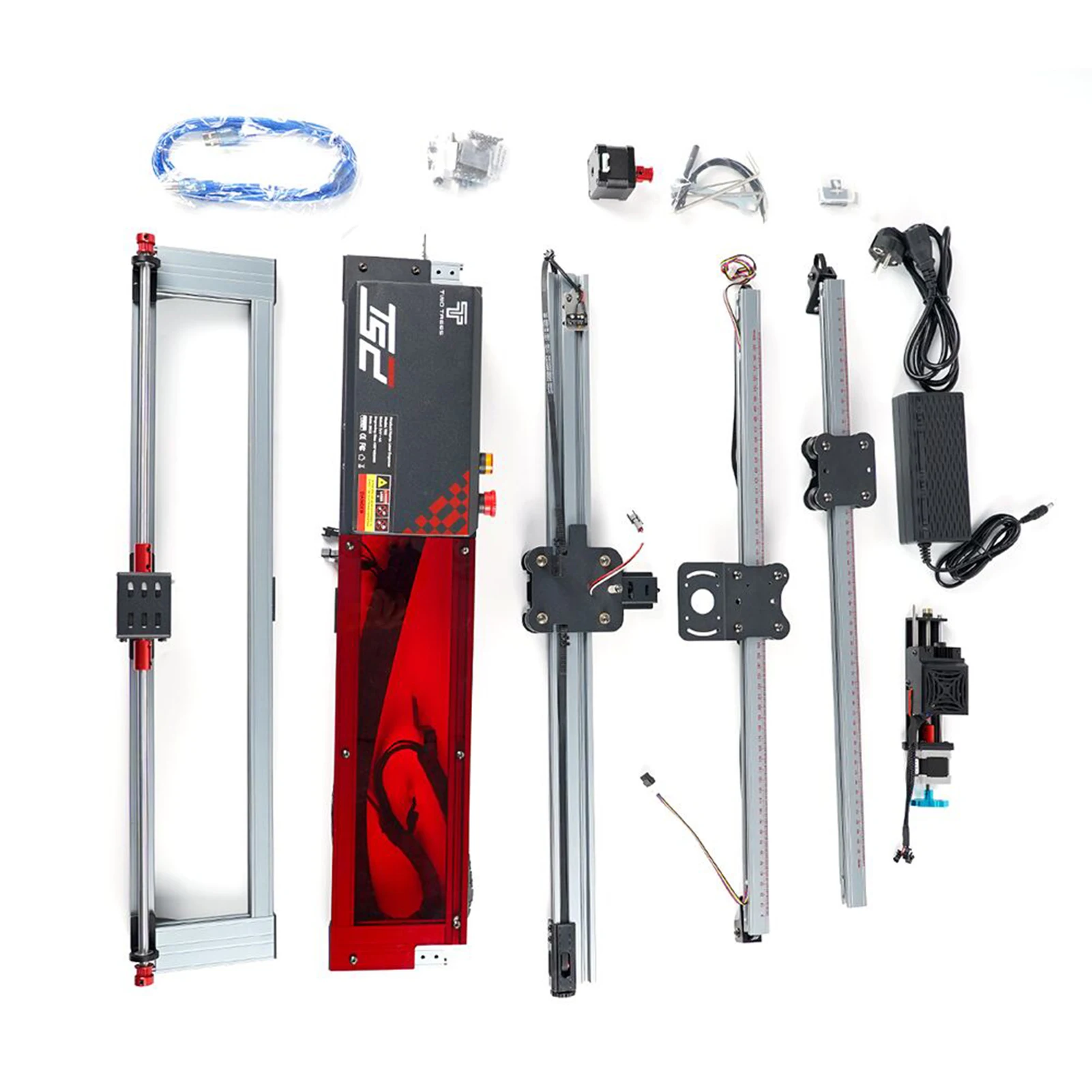

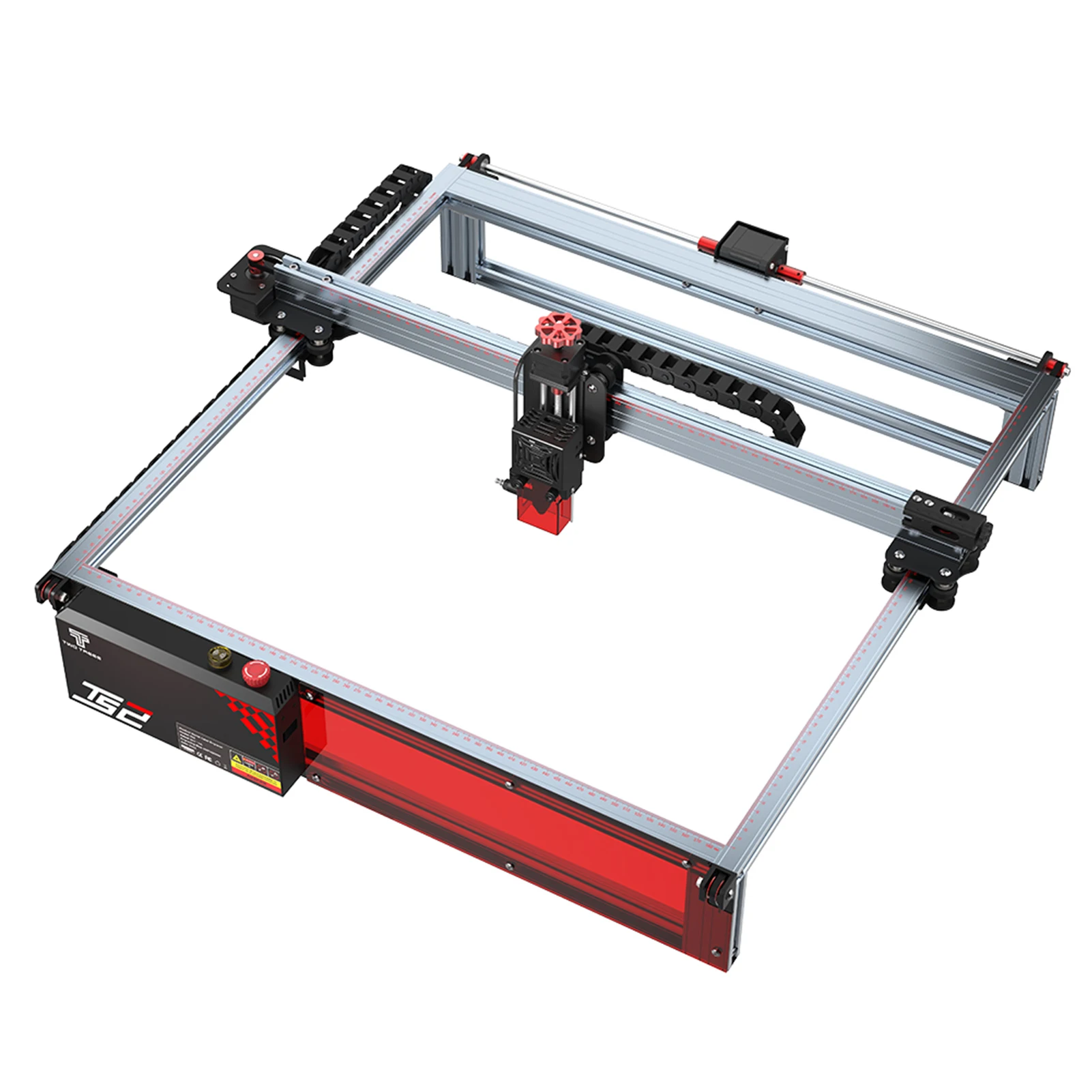

TS2 Complete Module Burner - 60% pre-assembled parts with modular design makes installation easier than ever. 450x450mm large working area satisfy your DIY with various materials.

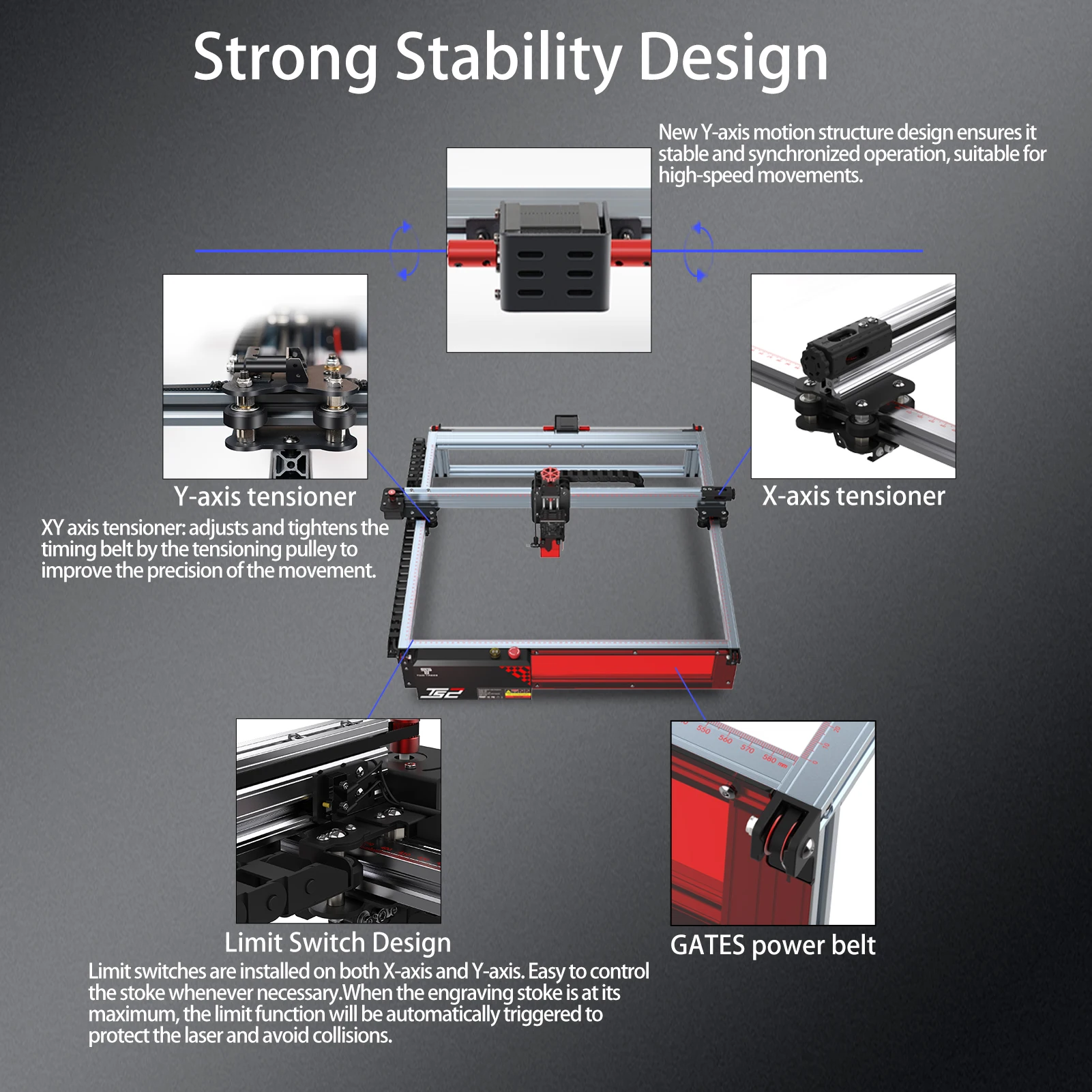

New X-axis design - New Y-axis movement structure design ensures it stable and synchronized operation, suitable for high-speed movements. Equipped with an XY axis tensioner which adjusts and tightens the timing belt by the tension pulley to improve the precision of movement.

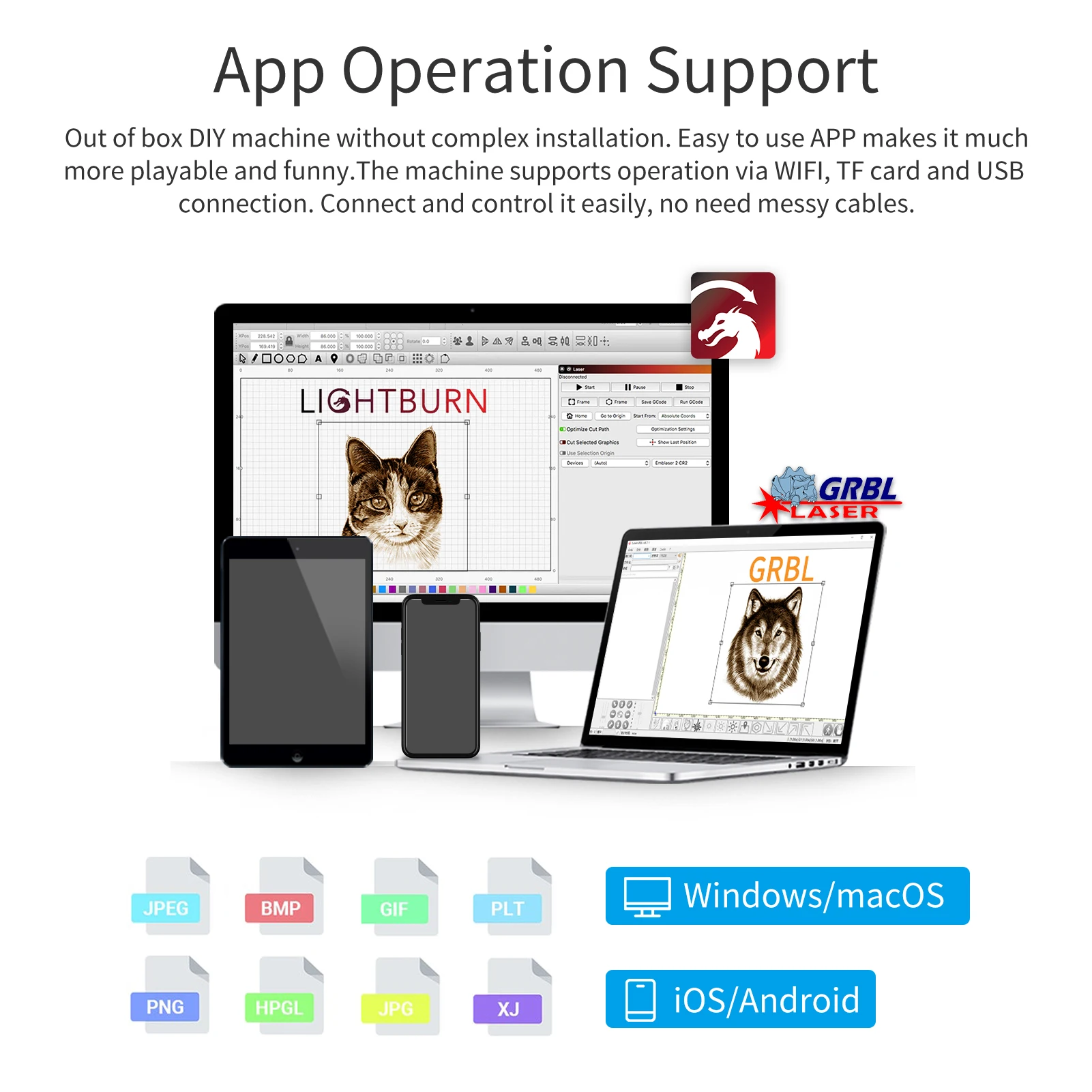

Offline Engraving and APP Connection - High-speed ESP32-DOWD-V3 smart chip, 32-bit LX6 microprocessor, high-speed cutting, compatible LaserGRBL and LightBurn software, makes it more convenient to use by supporting APP connection. Compatible with windows, MacOS, iOS and Android system.

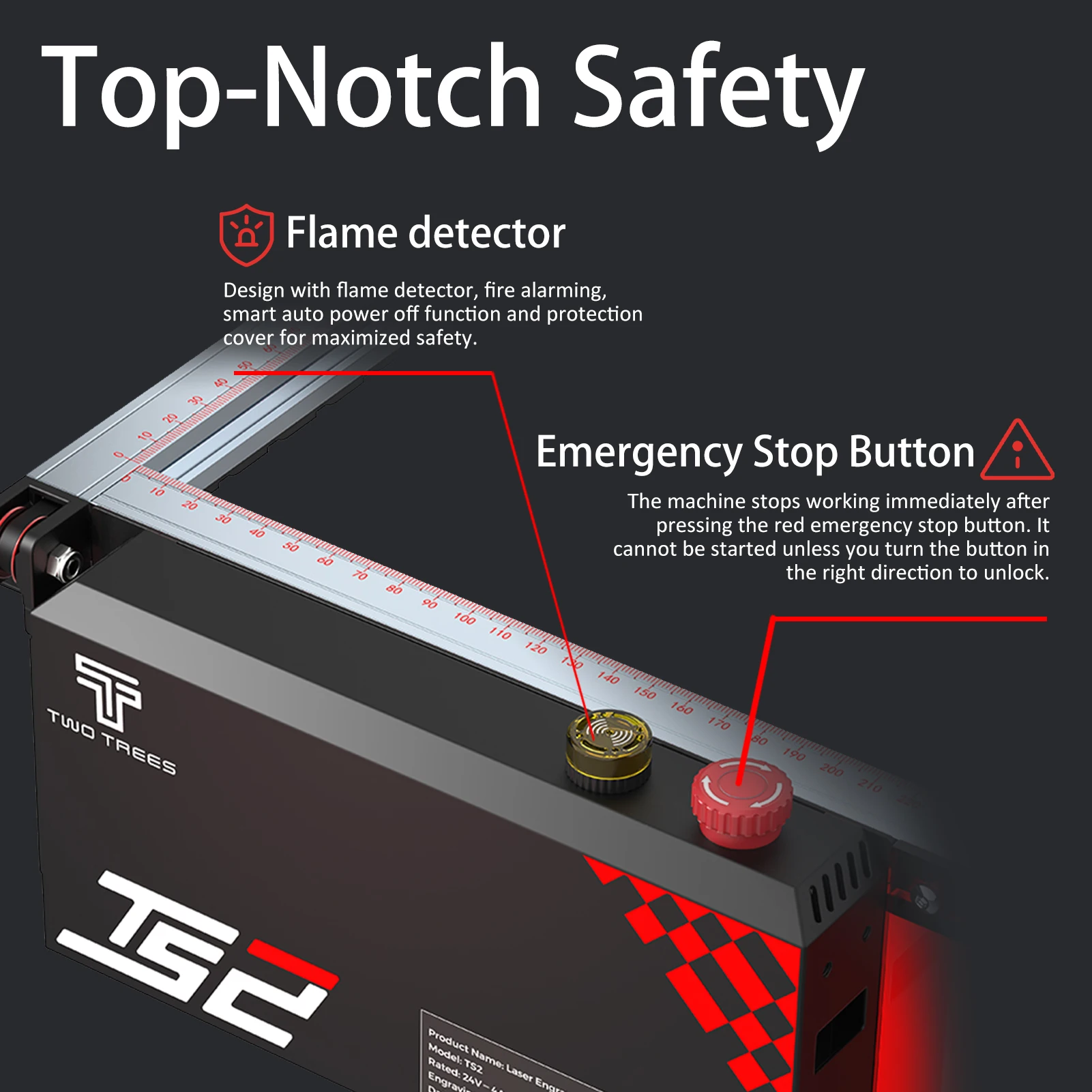

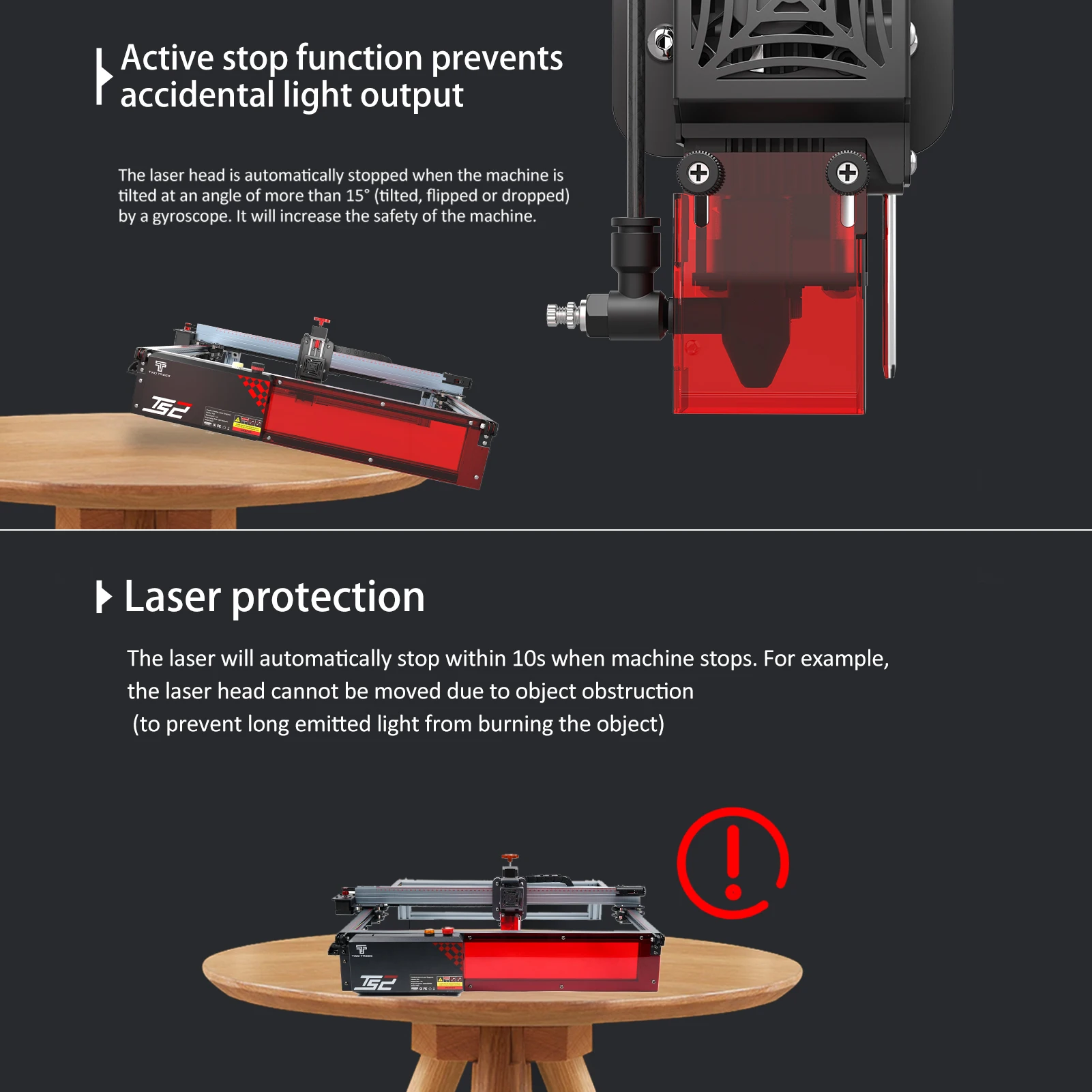

Top-notch safety design with flame detector, emergency stop button, tilt angle detection and laser protection, we try our best to make sure the machine and things work in a safe situation.

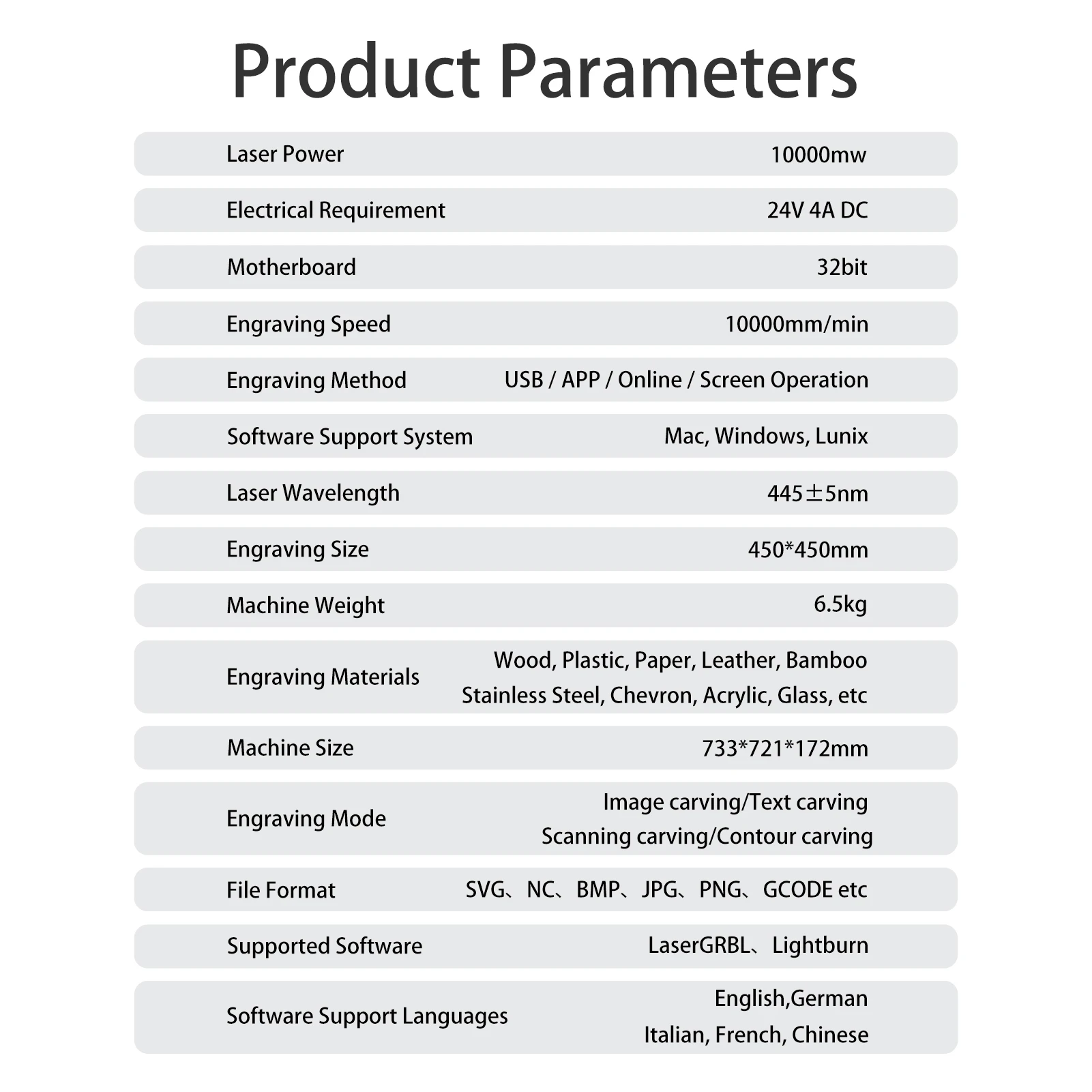

Specification:
Model: TS2
Laser Power: 10W
Electrical Requirement: 24V 4A DC
Motherboard: 32 bit
Engraving Speed: 10000mm/min
Engraving Method: USB/APP/online/screen operation
Software Support System: Mac. Windows, Lunix
Laser Wavelength: 445±5nm
Engraving Size: 450x450mm
Machine Weight: 6.5 kilograms

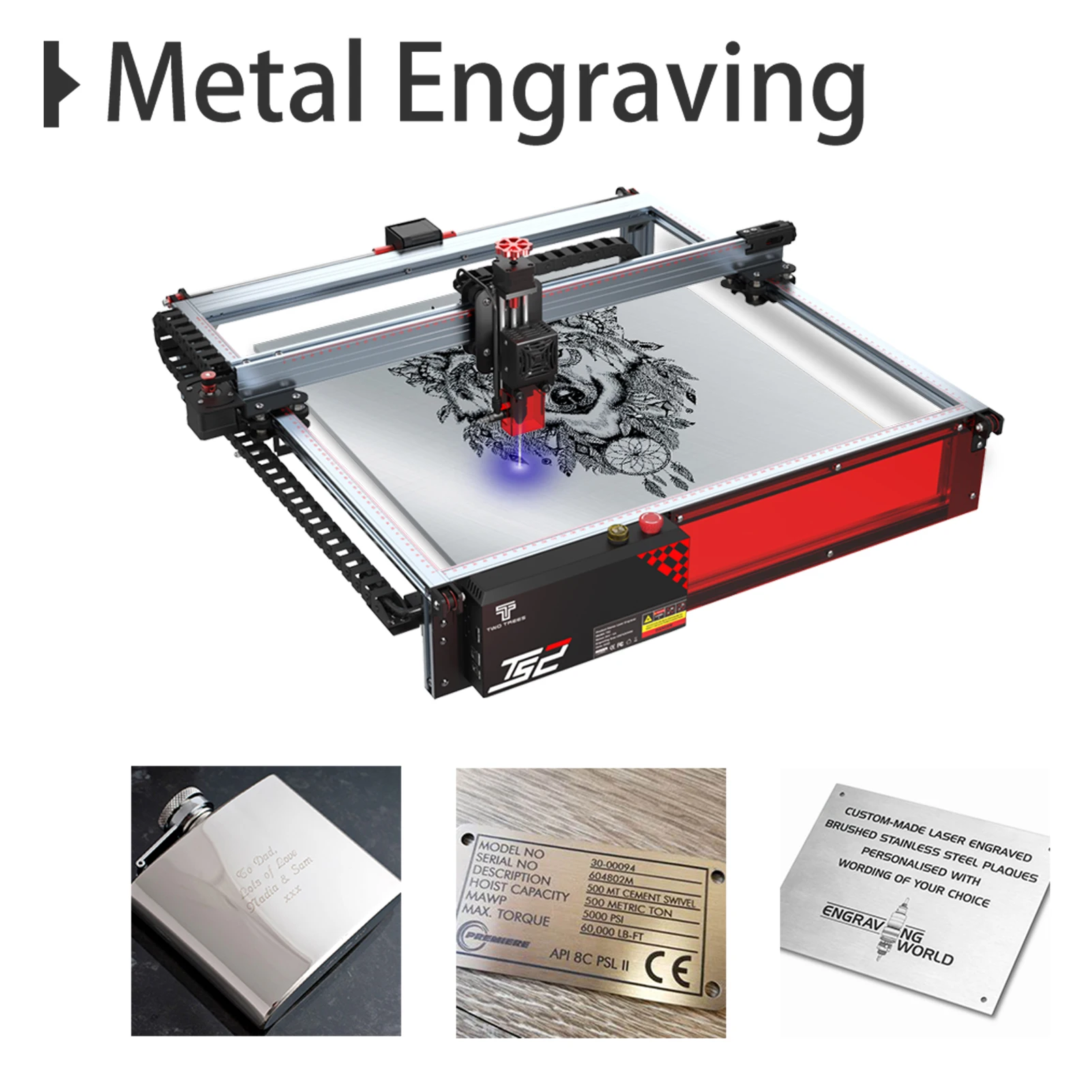

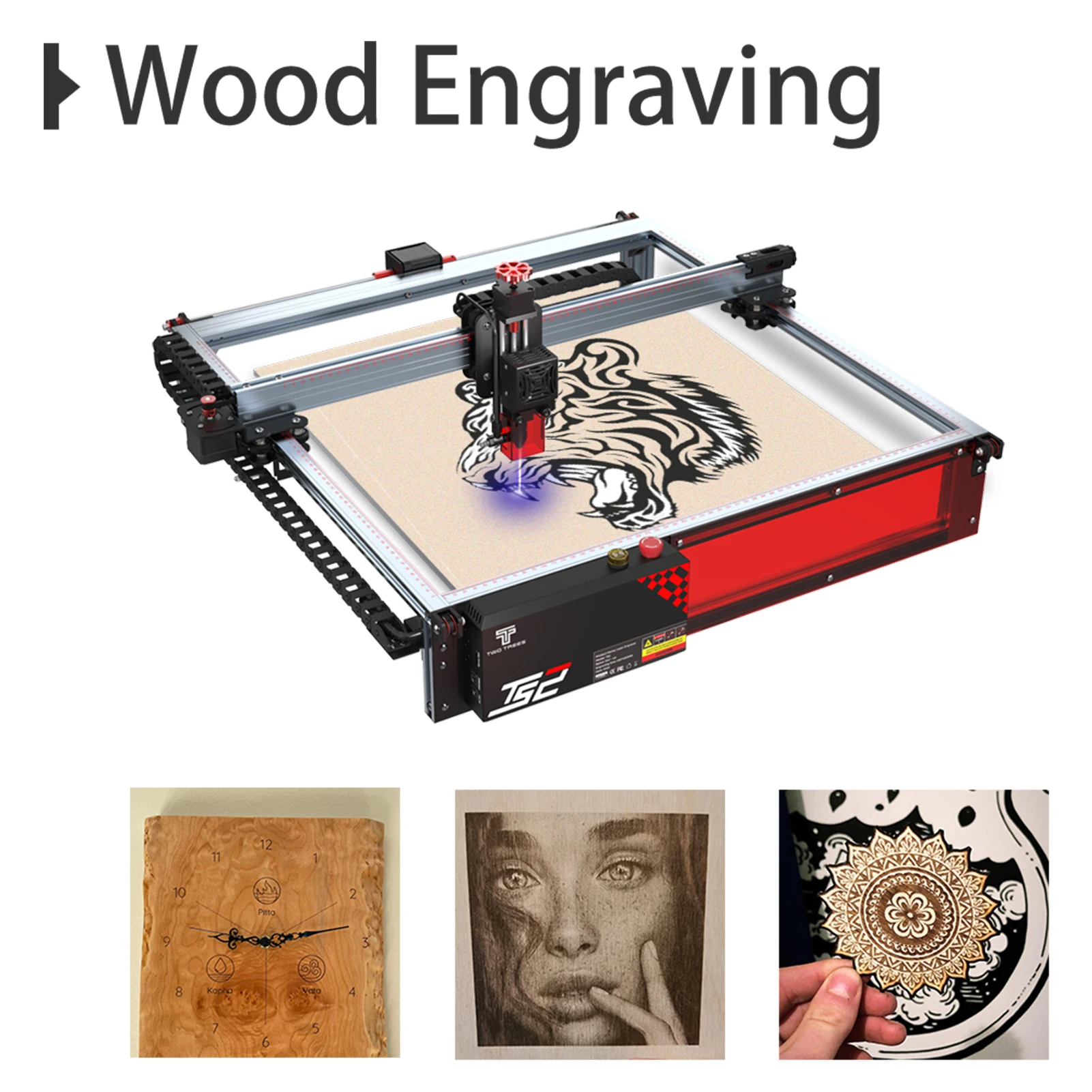

Engraving Materials: Wood, Plastic, Paper, Leather, Bamboo, Stainless Steel, Chevron,
Acrylic, glass, etc.
Machine Size: 733x721x172mm
Engraving Mode: Image Carving/Text Carving/Sweep Carving/Contour Carving
File Format: SVG. CN. BMP, JPG, PNG, GCODE etc.
Support software: LaserGRBL. Lightburn
Software Support Language: English, German, Italian, French, Chinese
Package Size: 76 x 23 x 34.5cm/30 x 9 x 13.7in
Package Weight: 12.5kg/27.5lb Package
List:

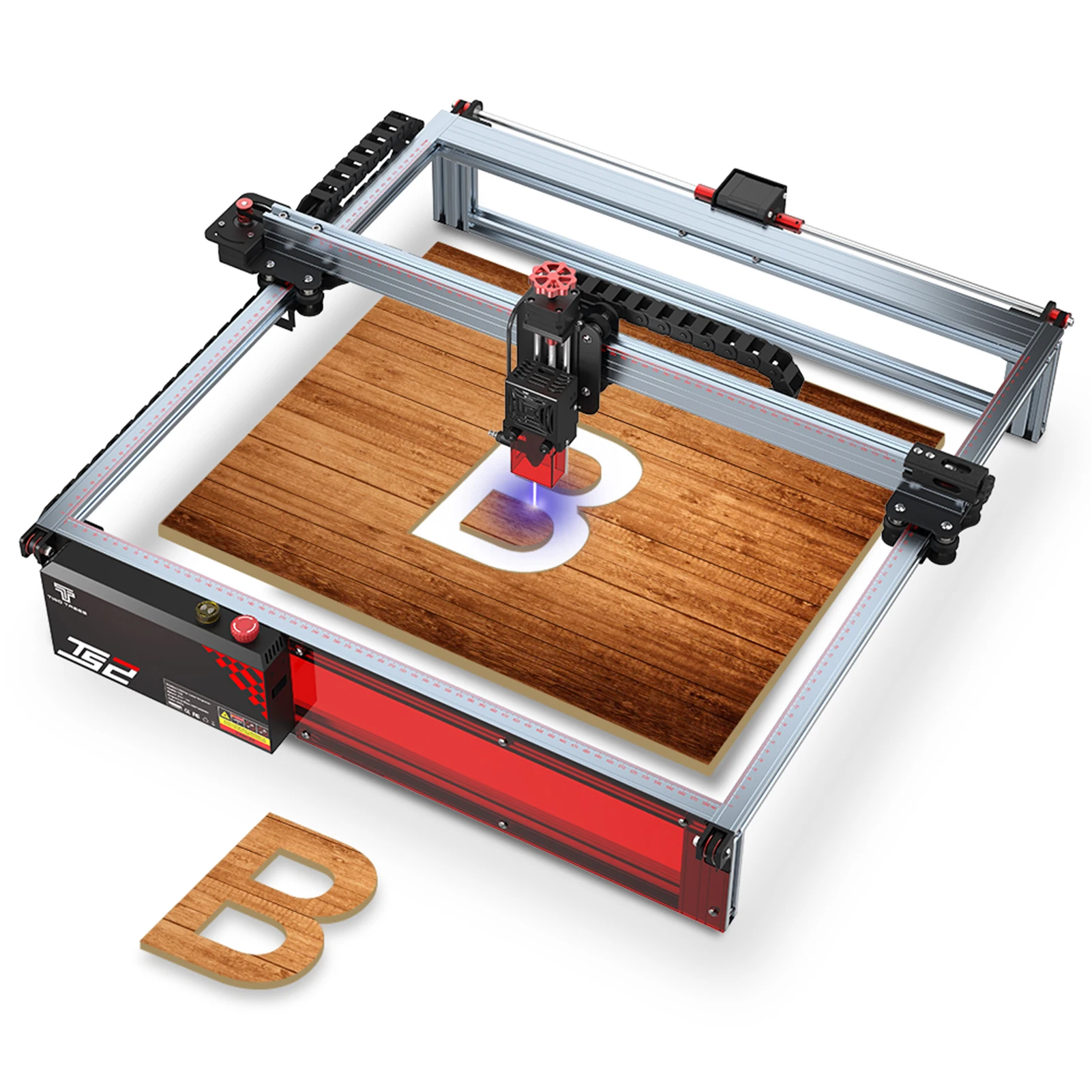

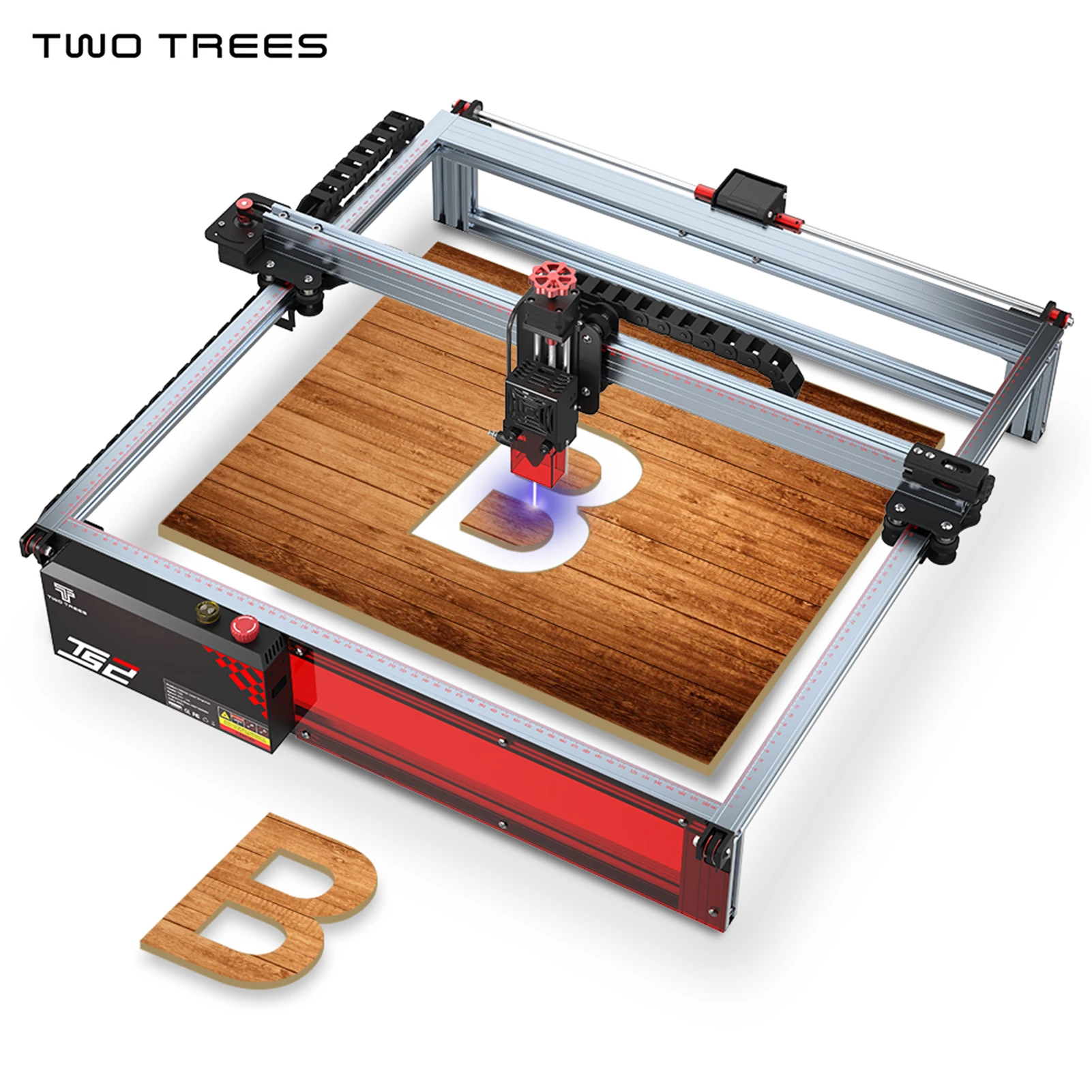

1 x TS2 Laser Engraver Kit
