Arduino compatible Nano Board, ATmega328PB, USB-C, extra IO

Κωδικός Κατασκευαστή (MPN): ARD-NANOV4-MC

ΚΩΔΙΚΟΣ: AA3549

MANUFACTURERJOY-IT MPNARD-NANOV4-MC

ATmega 328PB microcontroller board The NanoV4-MC is a particularly small microcontroller and has been specially developed for working with plug-in boards thanks to the pin header that leads out at the bottom. The integrated USB Type-C interface can be used to supply the circuit and board with...

€11²³

Χωρίς ΦΠΑ: €9.06

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

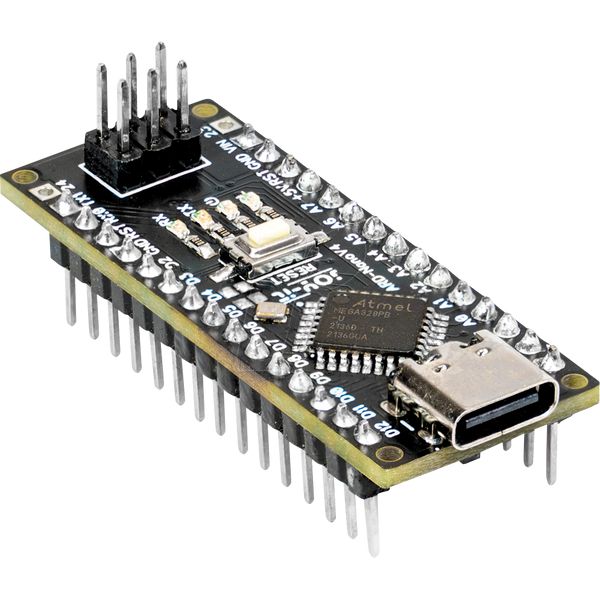

ATmega 328PB microcontroller board

The NanoV4-MC is a particularly small microcontroller and has been specially developed for working with plug-in boards thanks to the pin header that leads out at the bottom.
The integrated USB Type-C interface can be used to supply the circuit and board with power and to transfer programs to the microcontroller.
Compared to the NANO-V3, the NanoV4-MC has 2 additional IO pins and an additional hardware I2C and SPI interface in addition to the USB-C interface.

The bootloader used is compatible with most existing Arduino libraries.

Features
- Microcontroller: Atmel Mega328PB
- Bootloader: Minicore
- Clock frequency: 16 MHz
- Logic level: 5 V
- analog pins: 8
- digital pins: 16 (6 PWM)
- USB-C
- additional IO pins

Specifications
- current (DC) per I/O pin: 40 mA
- 32 kB memory (2 kB for bootloader)
- 2 kB SRAM
- EEPROM: 1 kB
- Operating voltage: Vin-PIN: 7 - 12 V / USB Type-C: 5 V
- Current consumption: 20 mA
- Dimensions (WxD): 18.5 x 47 mm
