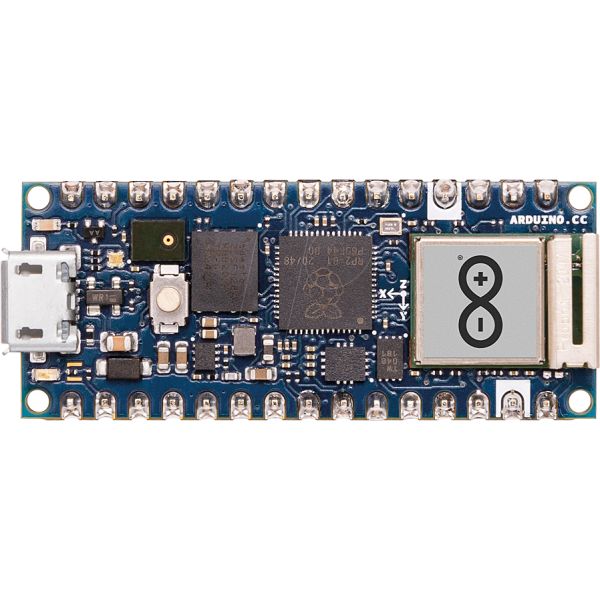

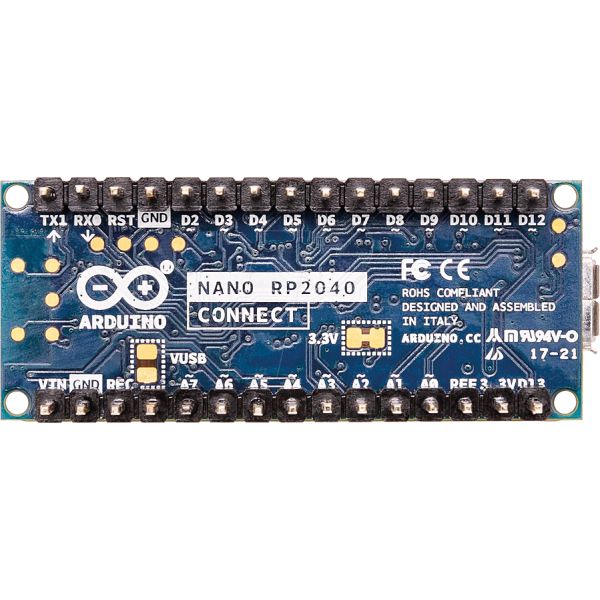

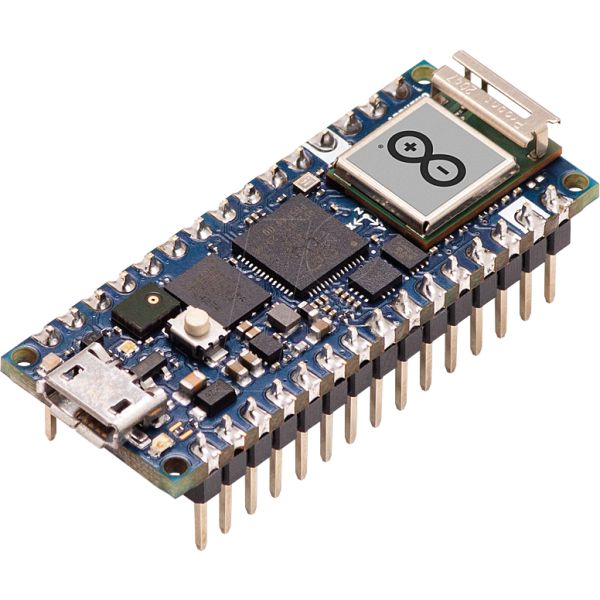

Arduino Nano RP2040 Connect, RP2040, with Header

The Arduino Nano RP2040 Connect is an Arduino with a Raspberry Pi inside, as the board's "brain" is the Raspberry Pi's own RP2040 dual-core ARM Cortex M0+ running at 133 MHz.

Thanks to the u-blox NINA-W102 radio module, the RP2040 CONNECT is the only networked board in this series, and in addition, the built-in microphone is used to activate and control the board, as well as voice recognition via AI. Furthermore, an intelligent, six-axis IMU with AI features ensures that the board detects movements such as falling down, tapping twice, etc.

Arduino Cloud
Program and operate your NANO RP2040 CONNECT directly from your browser. Fully compatible, from day one.
Upload and operate your sketches wirelessly with the smartphone app "Arduino IoT Remote".

Technical features - WLAN: 802.11b/g/n
- Bluetooth Low Energy v4.2
- supports Arduino IDE 2.0
- compatible with Raspberry Pi RP2040 software
- full support for MicroPython

• General
• • Type

  • Arduino

  • Category

  • Board

  • Design

  • Standard

  • Model

  • Nano

  • Analog inputs

  • 8

  • Clock

  • 133 MHz

  • Bit

  • 32

  • SD card

  • No

• Implementation
• • Microcontrol

  • RP2040

  • Flash

  • 16384 KB

  • SRAM

  • 264 KB

  • EEPROM

  • 0

• Electrical values
• • Voltage

  • 5 V

• Interfaces
• • Digital I/O pins

  • 22

  • with PWM

  • 20

  • USB

  • Yes

  • SPI

  • Yes

  • I²C

  • 1x

  • ICSP

  • No

  • TWI

  • No

  • UART

  • Yes

  • CAN

  • No

  • SAC

  • No

  • LAN

  • No

  • Bluetooth®

  • Yes

• External I/O Ports
• • WLAN

  • Yes
