Arduino Shield - Motorino, 16 channel controls

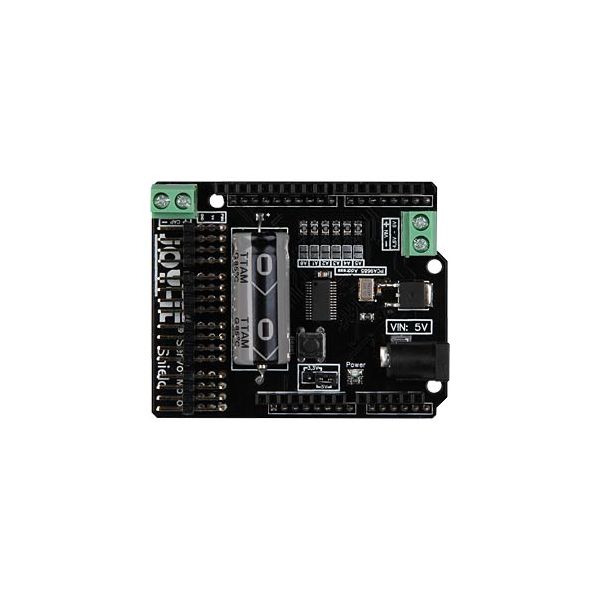

The Motorino board is an extension-board to control and use up to 16 PWM-controlled 5V-Servo-motors.

The included clock generator ensures a very precise PWM signal and a very precise positioning. The board has 2 inputs for voltage from 4.8V to 6V which can be used for up to 11A. With this input, a perfect power supply is always guaranteed and even bigger projects are no problem. The supply runs directly over the Motorino which provides a connection for voltage, ground and control.

With the build in capacitor, the voltage is buffered which prevents a sudden voltage-drop at a high load. But there is also the possibility to connect another capacitor. The control and the programing can be done, as usual, with the Arduino. Manuals and code examples allows a quick introduction for beginners.

Specifications
- 16 Channels , own clock generator
- Input 1: Coaxial power connector 5.5 / 2.1 mm , 4.8 ... 6 V, 5 A max.
- Input 2: Screw-terminal, 4.8 ... 6 V, 6 A max.
- compatible with Arduino Uno, Mega and may more microcontroller with Arduino compatible pinout

Scope of supply
- board
- manual

Dimensions: 69 x 24 x 56 mm

• Implementation
• • Model

  • Arduino

• General
• • Category

  • Shield

  • Type

  • Treiber

  • Engine Type

  • für Servomotoren

  • Number of motors

  • Up to 16

• Power supply
• • Output voltage

  • 5 V

• Electrical values
• • Output current

  • 4.8 A
