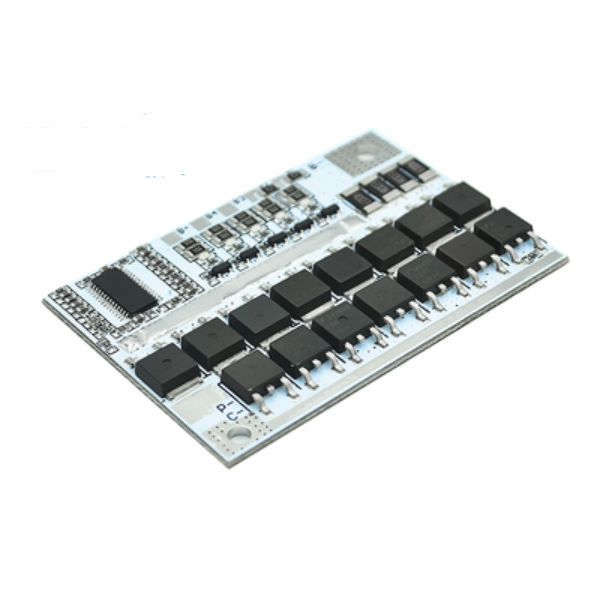

3S-5S 3.2V/3.7V BMS Li-ion LMO LiFePO4 Ternary Lithium Battery Protection Circuit Board Li-POLYMER Balance Charging Board Module

3S-5S 3.2V/3.7V BMS Li-ion LMO LiFePO4 Ternary Lithium Battery Protection Circuit Board Li-POLYMER Balance Charging Board Module

Description:

1.This protection board is 3s 4s 5s in common use LiFePo battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium. 2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc. 3.Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A. 4.Can use for LiFePo battery,battery packs etc.

Parameter: Single cell battery overcharge protect voltage : 3.61-3.69 V Single cell battery overcharge  protect recover voltage : 3.5-3.6V Overcharge protect delay : 1.5-2.5S Single cell battery over-discharge  protect voltage : 2.27-2.43 V Single cell battery over-discharge  protect recover voltage : 2.45-2.65 V Overcharge protect Current : 100A Over-discharge protect Current : 100A Over-discharge protect delay : 0.5-1.5S Temperature protect : Yes,have Temperature control interface. Disconnect protect : Yes Shortage protect : Yes Shortage delay : 100-600 uS Shortage protect recover mode: Off load release. Contact discharge current:80A Synopline discharge current:60A Charging current:60A balance function:yes Ampere balance (Current) : 50MA Voltage alance accuracy : 3.355-3.455 V
