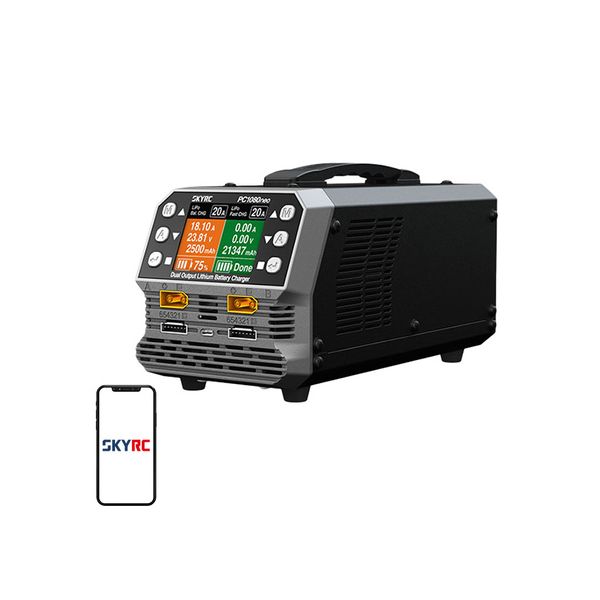

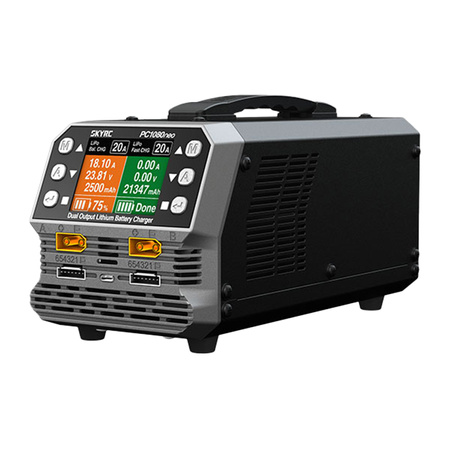

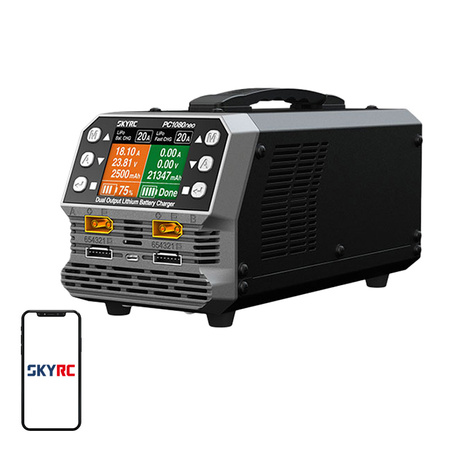

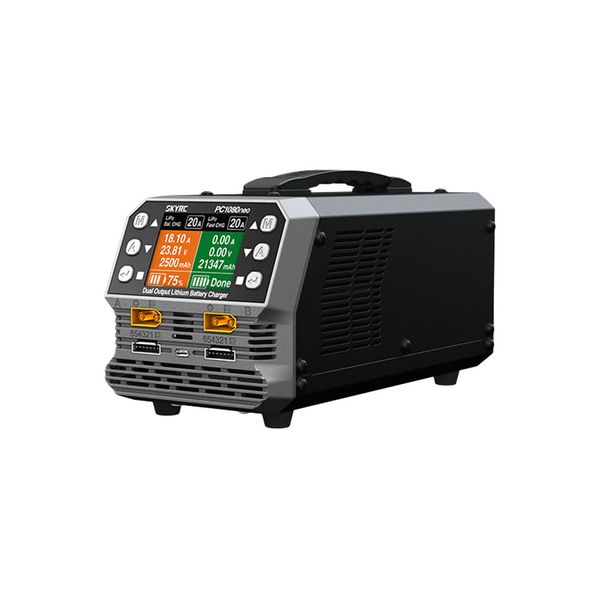

SkyRC PC1080neo Dual Channel Lithium Battery Charger

Dual Channel Lithium Battery Charger

SkyRC PC1080neo is an advanced charger designed for LiPo and LiHV lithium batteries. The device is designed for users who require high power, accurate charging and easy operation. With two independent channels and a total power of 1080 W, it allows you to charge two batteries simultaneously, which significantly reduces the time required to prepare your equipment for use.

High power and two independent channels

The charger offers a total output power of up to 1080 W, or 540 W per channel. This makes it possible to quickly charge even large batteries used in drones and professional equipment, among others. Each channel works independently, so you can charge two batteries with different parameters at the same time. The charging current range from 1 to 20 A allows you to adapt the process to a specific battery.

Support for LiPo and LiHV batteries

The PC1080neo model is compatible with LiPo and LiHV batteries with up to 6 cells. The charger allows a wide range of final voltage adjustment, so you can adapt the parameters to different battery types. For LiHV batteries, the voltage can be adjusted from 4.25 V to 4.50 V per cell, allowing for greater capacity while maintaining control over charging safety.

Different functions to suit your needs

The charger offers various functions to suit your current needs. The fast charge function reduces the time required to prepare the battery for use. The balancing function equalizes the voltage of the individual cells, improving the performance and life of the pack. There is also a storage function, which sets the optimal voltage for long-term storage of the battery.

Clear display and simple operation

The device is equipped with a 2.8-inch color display with a resolution of 320 × 240 pixels. The display is set at an angle of 65°, so that all information is clearly visible during operation. The interface displays parameters such as voltage, current, capacity and charge level in real time, which makes it easy to control the entire process.

Precise operation thanks to the Cortex-M3 processor

At the core of the charger is an ARM Cortex-M3 processor, which is responsible for the stability and accuracy of operation. This allows the device to accurately control the charging voltage and current, ensuring a safe and stable process. The cell balancing accuracy reaches up to ±10 mV per cell in balancing mode.

Efficient and stable operation thanks to Active PFC

The use of Active PFC technology increases the energy efficiency of the device. This function stabilizes the input voltage and reduces interference in the electrical network. As a result, the charger achieves a high energy conversion efficiency of about 90%.

Global supply

The charger supports a wide input voltage range from 100 to 240 V at 50/60 Hz. This allows it to be used in different countries without the need for additional voltage converters.

Security system

The SkyRC PC1080neo is equipped with an extensive set of safety features that protect both the charger and the batteries. The Multi Safe Circuit system includes protection against short circuits, reverse polarity, overheating, overvoltage and overcharging. In addition, a timeout function and automatic shutdown in case of malfunction are included.

Software update

The device can be updated via the USB-C port using the Charger Master app available for Windows and macOS. This allows the user to easily update the firmware and improve the compatibility and functionality of the charger.
