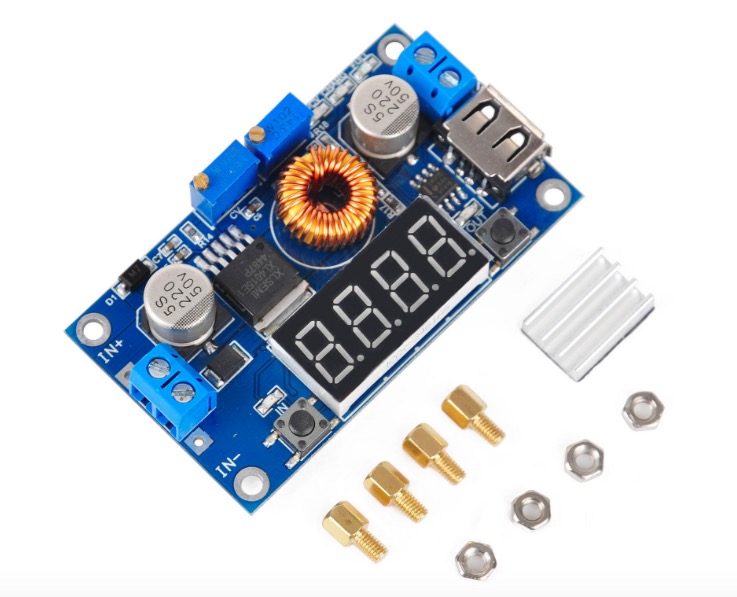

Adjustable 5A DC-DC Power Step-down Charge Module LED Driver W/ USB Voltmeter

Κωδικός Κατασκευαστή (MPN): HR0596

ΚΩΔΙΚΟΣ: AA0246

MANUFACTURERHAITRONIC MPNHR0596

The DC-DC Adjustable Step Down Converter Module has large power, high efficiency, low-ripple. With power indicator, on-board voltmeter. The voltmeter can calibrate automatically. The measure can be changed between input and output voltage, with indicator. The voltmeter can also be shutdown. The board uses connection terminal for easy wiring.

€6⁹⁴

Χωρίς ΦΠΑ: €5.60

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Note:

When you use the product, the module inputs and outputs to be isolated from ground.
USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V.
When you encounter this problem the module can not adjust the output voltage is always equal to the input voltage, please counterclockwise rotation of the “voltage potentiometer” 10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V.

Specification:

Highlights :Contains the voltmeter, ammeter, power meter, USB interface for charging the digital products
Input voltage range:5-36V DC
Output voltage range:1.25-32V DC adjustable
Output current: 0-5A
Output power: 75W
High efficiency up to 96%
Built in thermal shutdown function
Built in current limit function
Built in output short protection function
Input reverse polarity protection: None (if required, high current diode in series with the input).
Size:6.8x3.8x1cm(LxWxH)
Application:Use as a step-down modules with overcurrent protection
