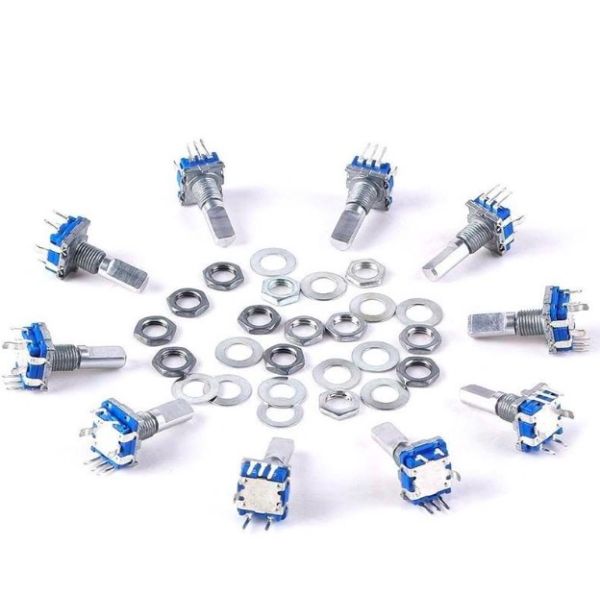

Rotary Encoder with switch - Audio Digital Potentiometer 20mm handle for Arduino

Κωδικός Κατασκευαστή (MPN): HR0594

ΚΩΔΙΚΟΣ: AA0514

Features: • 100% brand new and high quality • Type: Continuous Rotary Encoder Switch • With built in push button switch (push to operate) • Can input the data when used with in-car CD player • Can control the volume, on/off and data selection through LED or LCD...

€1³⁹

Χωρίς ΦΠΑ: €1.12

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Features:

• 100% brand new and high quality

• Type: Continuous Rotary Encoder Switch

• With built in push button switch (push to operate)

• Can input the data when used with in-car CD player

• Can control the volume, on/off and data selection through LED or LCD display

• Great for use with PIC or ATMEL microcontrollers

Specification:

• Rotary Shaft Length: approx. 12mm/ 0.5"

• Shaft Full Length: approx. 20mm/ 0.8"

• Shaft Diameter: approx. 6mm/ 0.25"

• Size: approx. 15 x 12mm/ 0.6 x 0.8" (L*W)

• Output: 2-bit gray code

• Closed Circuit Resistance: 3 ohms maximums

• Max. Rating: 10 mA at 5 VDC

• Operating Temperature Range: 30 to 70 degrees celsius

Storage Temperature Range: 40 to 85 degrees celsius
