PL2303HX USB to TTL RS232

This is a newly designed product, using the Taiwan prolific production company PL2303HX chips, PL2303HX perfectly compatible with win XP/VISTA/7/8/8.1 system

PL2303HX provides a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL2303HX highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready without having to rewrite the COM port software application.

By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL2303HX is capable of achieving higher throughput compared to traditional UART (Universal Asynchronous Receiver Transmitter) ports.When real RS232 signaling is not required, baud rate higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of PL2303HX could be programmed to generate any rate between 75 bps and 6M bps.

PL2303HX is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode, PL2303HX is perfect for bus powered operation with plenty of power left for the attached devices. Flexible signal level requirement on the RS232-like serial port side also allows PL2303HX to connect directly to any 3.3V~1.8V range devices.

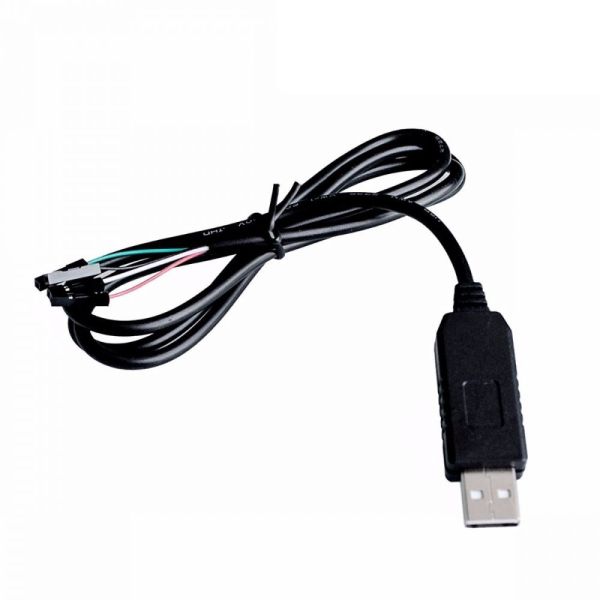

This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead,

Red +5 V

Black GND

White RXD

Green TXD

Product Applications:

• Single-chip upgrade solution for Legacy RS232 devices to USB interface

• USB to RS232 converters/cables/dongles

• Healthcare/Medical USB Interface Data Transfer Cable

• Personal Infotainment/Media Player Docking USB Interface

• Cellular/PDA USB Interface Data Transfer Cable

• Serial-over-IP Wireless Solution

• USB Barcode/Smart Card Readers

• GPS/Navigation USB Interface

• Point-of-Sale (POS) Terminals/Printers

• PC Docking Station/Port Replicators

• Industrial/Instrumentation/Automation Control USB Interface

• USB Modem/Wireless/Zigbee USB Interface

• Set-Top Box (STB) / Home Gateway USB Interface

• BatteryCharger Application

MCU-based devices to USB interface

* NO SUPPORT WINDOWS 10
