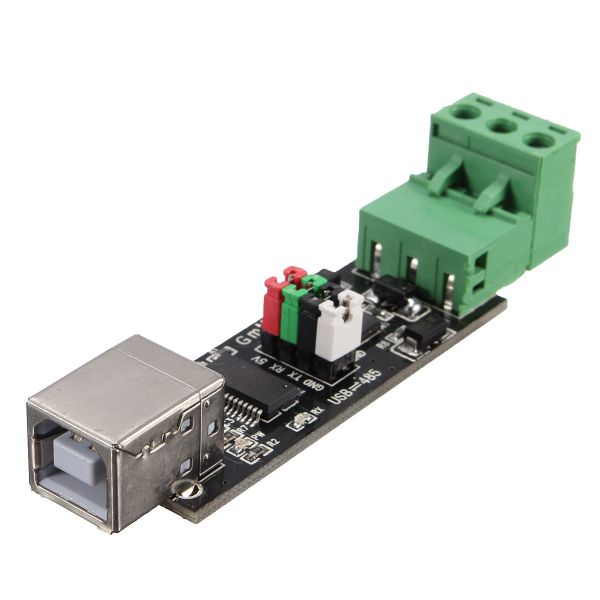

USB to RS485 TTL Serial Converter Adapter FTDI-FT232RL

Standard: USB2.0 standard, backward compatible, in line with RS485 standard

Direction control: automatic data flow control technology, automatic identification and control data transfer direction

Baud Rate :300-9216000bps, automatically detect the serial data rate signal

Load capacity: supports multipoint, each converter allows connecting 32 RS485 interface device

Interface protection: TVS tube protection, USB self-recovery protection

Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac

Supports devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX, CNC machine, SCM, etc.

New products, industrial grade USB to 485 modules, 485 chips to facilitate the replacement for the 485 chip hardware debug easy to burn out the case easier to use.

USB to 485 programs on the market to analyze the

Option One: CH341 +485; shortcomings unstable and prone to cause your computer to black;

Option Two: PL2303 + RS232 + RS485; This program is first converted into the serial port using the PL2303, then turn into a serial port 485; advantage of low cost, there may be unstable shortcomings industrial applications, high speed does not fit.

Option Three: FT232 +485; advantages: industrial-grade applications, speed, anti-jamming capabilities are very good, very suitable for industrial areas, the individual's application.
