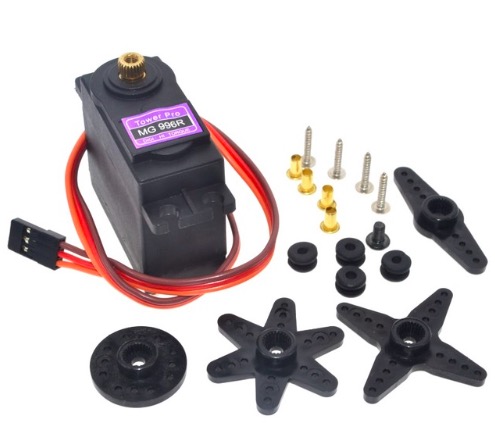

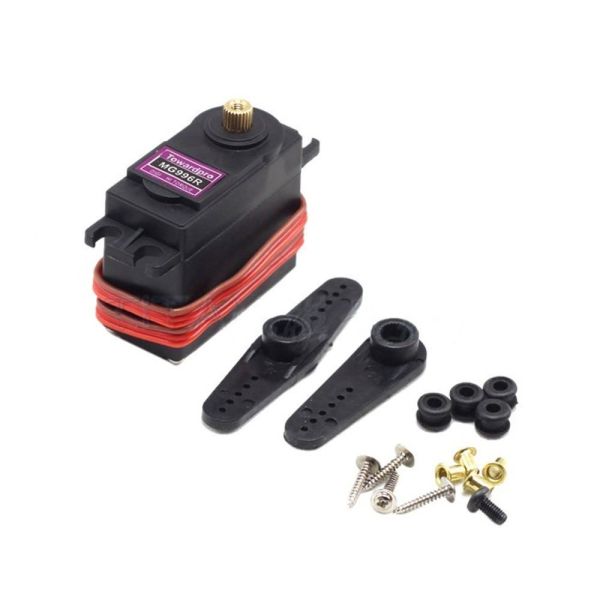

MG996R Servo - Metal Gear / High Torque Motor for Arduino

Κωδικός Κατασκευαστή (MPN): HR0145

ΚΩΔΙΚΟΣ: AA0066

MANUFACTURERHAITRONIC MPNHR0145

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

€6²⁰

Χωρίς ΦΠΑ: €5.00

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Specifications

• Dimension : 40mm x 19mm x 43mm

• Weight : 55g

• Operating Speed : 0.17sec / 60 degrees (4.8V no load)

• Operating Speed : 0.13sec / 60 degrees (6.0V no load)

• Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V

• Stall Torque : 15 kg-cm (208.3 oz-in) at 6V

• Operation Voltage : 4.8 - 7.2Volts

• Gear Type: All Metal Gears

• Connector Wire: Heavy Duty, 11.81" (300mm)

Features

• Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

• Great for truck, Boat, Racing Car, Helicopter and Airplane.

• This is essentially an upgraded version of the famous MG995 servo. It now has a redesigned PCB and IC control system which makes it far more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering.

• All specifications are the same as the previous model MG995, however this servo is far more accurate, and safe to use in aircraft which require precise servo movements and perfect centering.

• Power Supply: Through External Adapter.

• Stable and Shock Proof.- Metal Gear - Double Ball Bearing - Connector Wire Length 300mm
