1.3inch TFT Full Color LCD Display Module

Κωδικός Κατασκευαστή (MPN): HS4558

ΚΩΔΙΚΟΣ: AA3016

MANUFACTURERHAITRONIC MPNHS4558

1.3inch TFT Full Color LCD Display Module 1.3inch TFT Full Color LCD Display Module 1.Features SIZE1.3inch Display ModeNormally black IPS Display FormatGraphic 240RGB*240 Dot-matrix Input DataSPI interface Drive ICST7789VW ...

€7⁴⁴

Χωρίς ΦΠΑ: €6.00

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

1.3inch TFT Full Color LCD Display Module

1.Features

SIZE1.3inch

Display ModeNormally black IPS

Display FormatGraphic 240RGB*240 Dot-matrix

Input DataSPI interface

Drive ICST7789VW

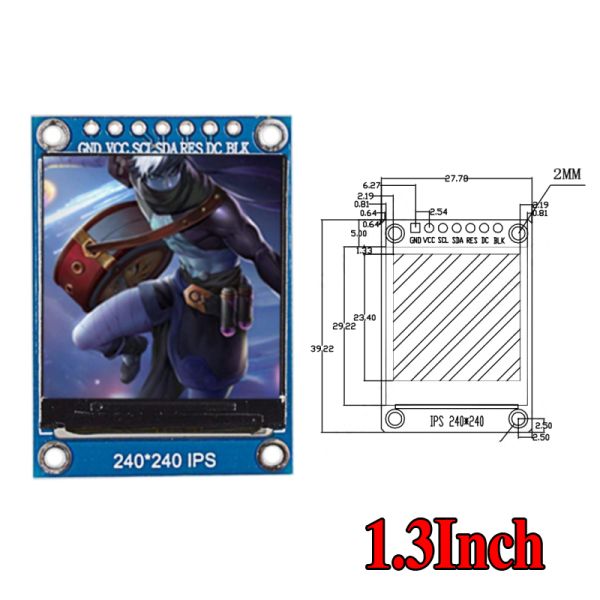

Dimensional outline27.78(W)*39.22 (H)*3.0+/-0.1(T)mm

Resolution240RGB*240 Dots

LCD Active area23.4 (W)*23.4 (H)

Dot pitch0.0975(H) x 0.0975(V) mm

Viewing DirectionAll View

Operating Temperature-20～70°C

2.Pin Descriptions:

PIN NoSymbolDescription

1GNDGround

2VCCPower 3.3V

3SCLSerial clock pin.

4SDASerial data input

5RESLCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is executed.

Keep this pin pull high during normal operation.

6DCData/Command Control 7BLKBacklight control pin
