Αρχική/ΗΛΕΚΤΡΟΝΙΚΑ/PROTOTYPING/CONNECTORS/Wago 5 Way Electrical Wire Connector - Insulating spring lever Reusable Connector(221-415)

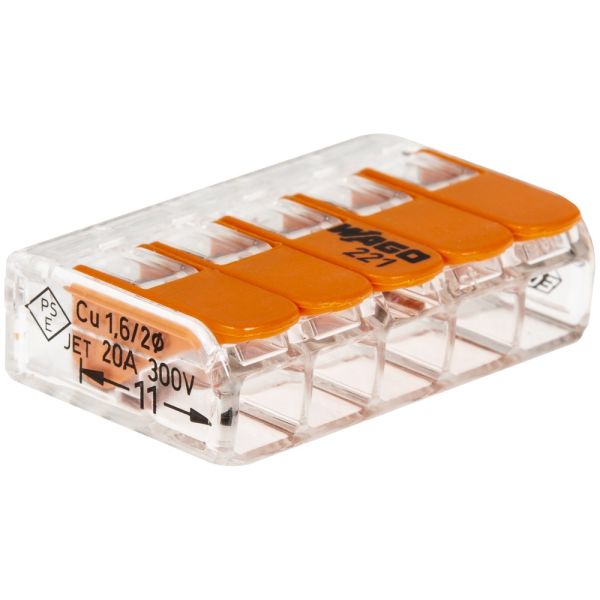

Wago 5 Way Electrical Wire Connector - Insulating spring lever Reusable Connector(221-415)

Κωδικός Κατασκευαστή (MPN): 221-415

ΚΩΔΙΚΟΣ: AA0938

MANUFACTURERWAGO MPN221-415

Description: 1 Way Electrical wire spring lever connector Clear visible indication and a simple colour coded scheme make inspection and identification fool proof. There is an electrical test point in the base of the housing for checking the on/off supply. Simply strip wire length at 10mm and...

€1⁵⁴

Χωρίς ΦΠΑ: €1.24

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Description:

1 Way Electrical wire spring lever connector
Clear visible indication and a simple colour coded scheme make inspection and identification fool proof. There is an electrical test point in the base of the housing for checking the on/off supply.
Simply strip wire length at 10mm and insert into the connector and secure the lever then release the lever to remove the cable and re-use the connector.
Voltage: 240/440v
Strip length: 9 - 10 mm
Current: 32 A
Colour: Grey/Orange
Size: 5
For use with:
0.75mm - 2.5mm - Solid Cables
1.5mm - 2.5mm - Stranded Cables
0.08 - 4mm - Flexible Cables

Cables must be the same polarity i.e all lives or all neutrals etc.
