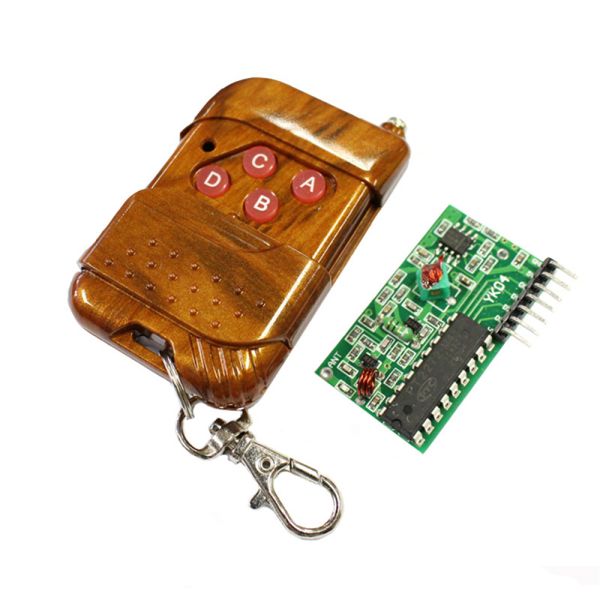

315MHz 4CH Wireless Remote Control Receiver for Arduino ( IC 2262/2272 )

HR0153
AA0413

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

2.Size: 6*22*41mm

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.

500
Χωρίς ΦΠΑ: 4.03
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής
  • Operating voltage: DC12V (LR27A/12V battery x1 NOT INCLUDED )
  • Operating Current: 10mA @ 12V
  • Radiated power: 10mw @ 12V
  • Size: 6.2 x 3.8 x1.4cm(LxWxD)
  • Modulation mode: ASK (Amplitude Modulation)
  • Transmitting frequency: 315MHZ (SAW frequency stabilization)
  • Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)
  • Encoder types: fixed code
  • The frequency of this product is 315 mhz.
  • With decoding receiver board

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6*22*41mm

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.

MANUFACTURER
HAITRONIC
MPN
HR0153
