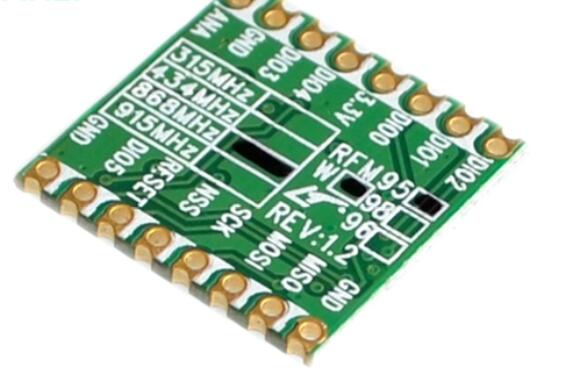

RFM95 wireless long range transceiver module lower power

Κωδικός Κατασκευαστή (MPN): HS1172

ΚΩΔΙΚΟΣ: AA0645

MANUFACTURERHAITRONIC MPNHS1172

Low power Long Range wireless transceiver module working frequency:868MHZ Modulation mode:LoRA/FSK/GFSK/00K Transmit power:20dBm Receiving sensitivity:-148dBm(AT)FSK 0.018K~37.5Kbps(AT)LoRa Transmission rate:200Kbps emission current:120mA(AT)20dBm receiving...

€13⁸⁹

Χωρίς ΦΠΑ: €11.20

Μη Διαθέσιμο

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Low power Long Range wireless transceiver module

working frequency:868MHZ

Modulation mode:LoRA/FSK/GFSK/00K

Transmit power:20dBm

Receiving sensitivity:-148dBm(AT)FSK

0.018K~37.5Kbps(AT)LoRa

Transmission rate:200Kbps

emission current:120mA(AT)20dBm

receiving current:10.3mA

standby current:0.2uA

data interface:SPI interface

communication distance:>8000m (AT)LoRa

antenna resistance:50 Ohm

operation temperature:-20 ~ 70 °C

power:DC 1.8V ~ 3.7V

size:16*16mm
