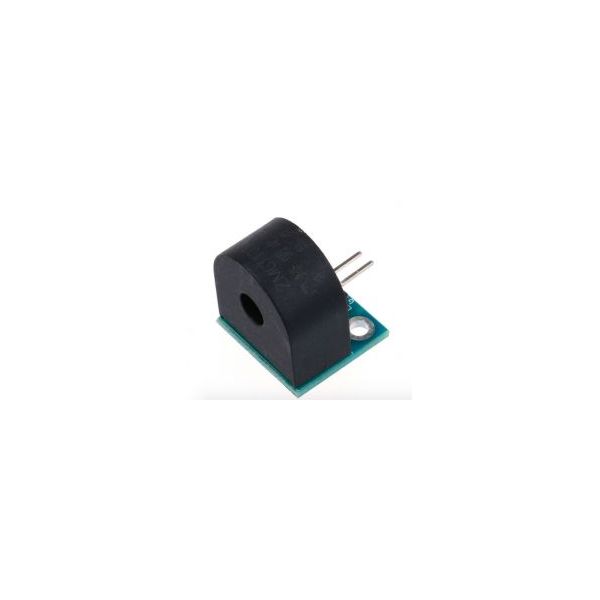

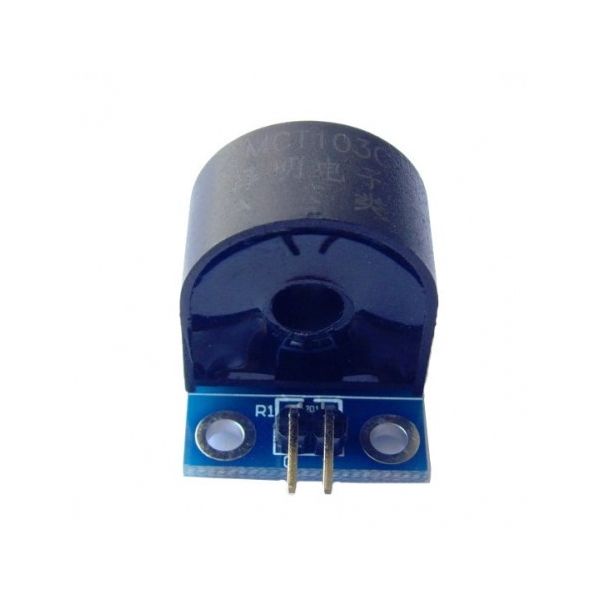

5A Range AC Current Sensor Module For Arduino

Κωδικός Κατασκευαστή (MPN): HR0214-82A

ΚΩΔΙΚΟΣ: AA0589

MANUFACTURERHAITRONIC MPNHR0214-82A

Product Description: • 1. On-board micro-precision current transformer • 2. Onboard sampling resistor • 3. Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA • 4. Rated input current: 5A • 5. Rated output current: 5mA •...

€2⁷⁴

Χωρίς ΦΠΑ: €2.21

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Product Description:

• 1. On-board micro-precision current transformer

• 2. Onboard sampling resistor

• 3. Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA

• 4. Rated input current: 5A

• 5. Rated output current: 5mA

• 6. Change: 1000: 1

• 7. The linear range: 0 ~ 10A (100 ohm)

• 8. Linearity: 0.2%

• 9. Precision rating: 0.2

• 10. Uses isolation voltage: 3000V Measurement

• 11. Sealing material: epoxy resin

• 12. Operating temperature: - 40 Celsius - + 70 Celsius
