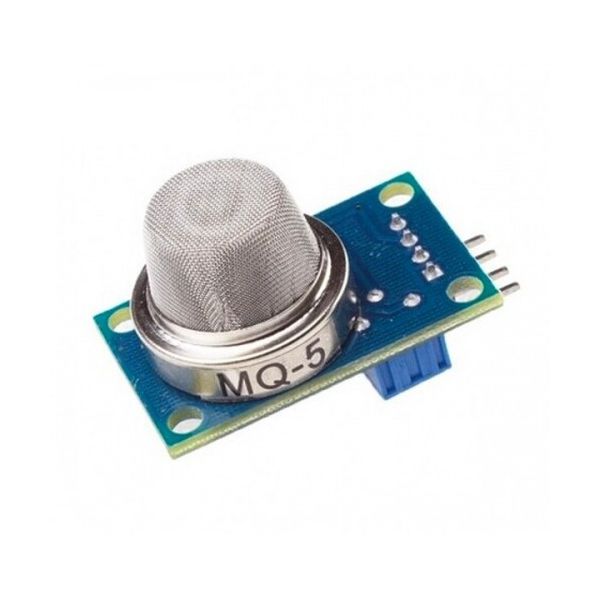

MQ-5 Methane Gas Sensor For Arduino (MQ5)

Κωδικός Κατασκευαστή (MPN): HR0207

ΚΩΔΙΚΟΣ: AA0224

Size: 32X22X27mm Main Chip: LM393, ZYMQ-5 gas sensor Operating Voltage: DC 5V Input Voltage: DC5V Power: 150mA DO Output: 0.1V/5V AO Output: 0.1-0.3A Features: Indication of the signal output Dual signal output (analog output, and TTL level output) TTL...

€2⁷³

Χωρίς ΦΠΑ: €2.20

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Size: 32X22X27mm
Main Chip: LM393, ZYMQ-5 gas sensor
Operating Voltage: DC 5V
Input Voltage: DC5V
Power: 150mA
DO Output: 0.1V/5V
AO Output: 0.1-0.3A
Features:
Indication of the signal output
Dual signal output (analog output, and TTL level output)
TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
0 ~ 5V analog output voltage, the higher the concentration, the higher the voltage
Liquefied petroleum gas, natural gas, city gas, better sensitivity
Has a long life and reliable stability
Fast response and recovery characteristics
