GPS Station NEO-6M-0-001 with EEPROM Ports SMA IPEX

Κωδικός Κατασκευαστή (MPN): HR0214-67A

ΚΩΔΙΚΟΣ: AA0892

Description : It is a mini GPS module including an NEO-6M orignal chip and an EEPROM memory chip. The onboard SMA and IPEX antenna port and the cell phone's push button battery ensure strong positioning efficiency and fast satellite discovery speed. The serial port provides the initial simple...

€12⁴⁰

Χωρίς ΦΠΑ: €10.00

Άμεσα διαθέσιμο

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Description :

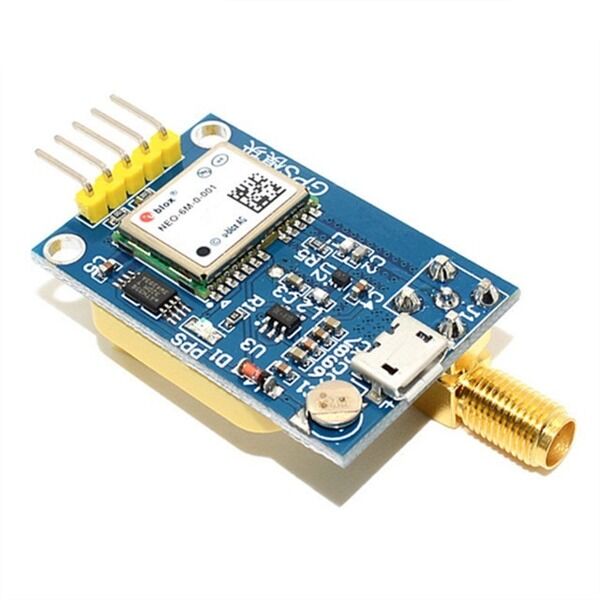

It is a mini GPS module including an NEO-6M orignal chip and an EEPROM memory chip.
The onboard SMA and IPEX antenna port and the cell phone's push button battery ensure strong positioning efficiency and fast satellite discovery speed.
The serial port provides the initial simple knowledge to be in contact with the MCU most compatible with the Arduino STM32.

Characteristics :

- Supply voltage: 3.3 - 5 VDC
- Operating current: 45 mA
- Communication speed: 9600 Bauds configurable from 4800 to 115200 Bauds
- Navigation update: 5 Hz max. (1 Hz default)
- Capture time: at started 27s, running 1s
- Operating temperature: -40 ° C - + 85 ° C
- separate GPS antenna (not included): 18x18 mm

- Size: 22x30x13 mm
