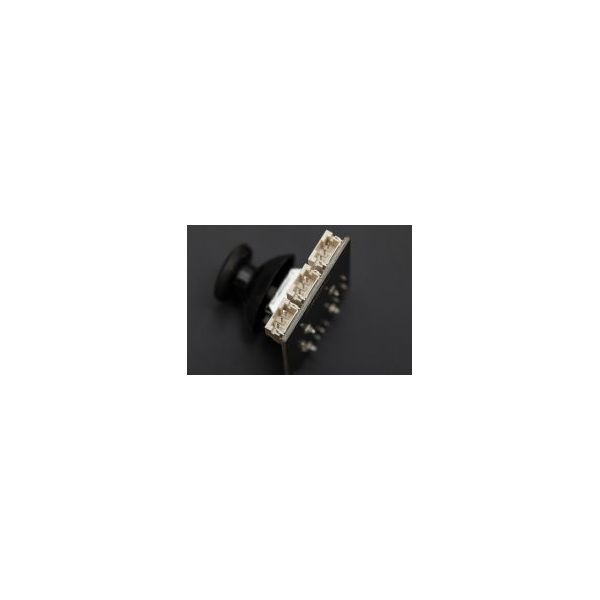

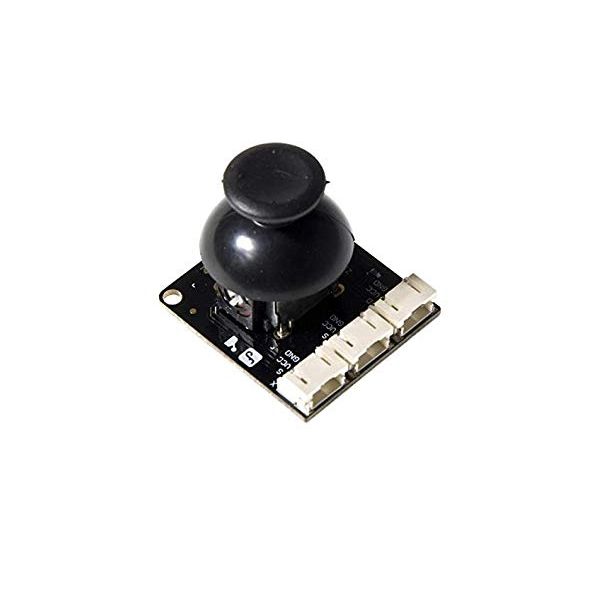

Gravity: Joystick Module V2(DFR0061)
INTRODUCTION
Lots of robot projects need joystick. This updated joystick
module V2 provides an affordable solution. Simply connect to two
analog inputs, the robot is at your commands with X,Y control. It also has a
switch that is connected to a digital pin. This joystick module can be
easily connect to Arduino by our
IO
Expansion Shield
with supplied cables.
Notice: The new version of analog sensor port pin mapping
has been changed as the following two features.
FEATURES
·
Wide voltage range from 3.3V to 5V
·
Standard assembling struct (two 3mm
holes with multiple of 5cm as interval)
·
Easily recognitive interfaces of
sensors ("A" for analog and "D" for digital)
·
Icons to simplely illustrate sensor
function
·
High quality connector
·
Immersion gold surface
SPECIFICATION
·
Supply Voltage: 3.3V to 5V
·
Interface: Analog x2,Digital x1
·
Size:35x39mm (1.38x1.53'')
DOCUMENTS
·
WikiDoc
SHIPPING
LIST
· Joystick Module V2 x1
