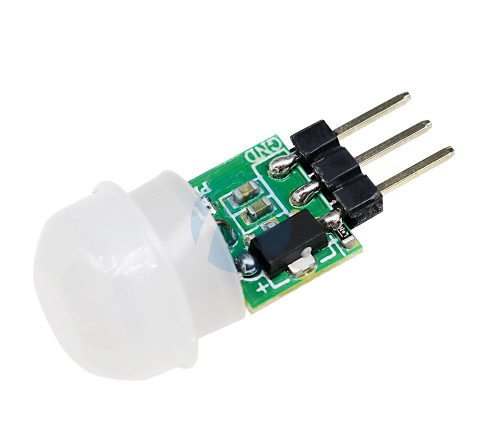

AM312 Sensor Mini IR Pyroelectric Infrared PIR Motion Human Sensor Automatic Detector Module Board

Κωδικός Κατασκευαστή (MPN): HS0869

ΚΩΔΙΚΟΣ: AA0145

MANUFACTURERHAITRONIC MPNHS0869

AM312 Sensor Mini IR Pyroelectric Infrared PIR Motion Human Sensor Automatic Detector Module Board

€2⁴⁸

Χωρίς ΦΠΑ: €2.00

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

AM312 Sensor Mini IR Pyroelectric Infrared PIR Motion Human Sensor Automatic Detector Module Board

Product Features:

1. Low power consumption, small size, easy to install

2. Internal use of digital signal processing, pit interference strong

3. High sensitivity, reliability, and can be widely used in automatic sensing circuit

4. Repeatable trigger mode: that is, after the induction output is high, in the delay period, if the body in its induction range of activities, the output will remain high until the delay after the person to become Low level. (Ie, the sensing module automatically detects a delay period after each activity of the human body, and takes the last active time as the starting point for the delay time).

Technical Parameters:

Operating voltage: DC 2.7-12V;
Static power consumption: <0.1mA;
Delay time: 2 seconds;
Block time: 2 seconds;
Trigger mode: repeatable;
Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)
Working temperature: -20 - + 60 ℃
PCB Dimensions: 10mm * 8mm
Module lens: small lens
