Current to voltage module 0/4-20ma to 0-3.3v 5v 10v voltage transmitter

Description

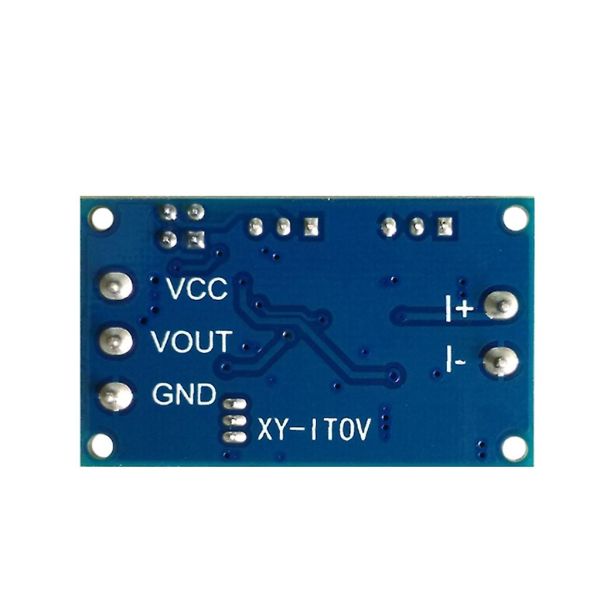

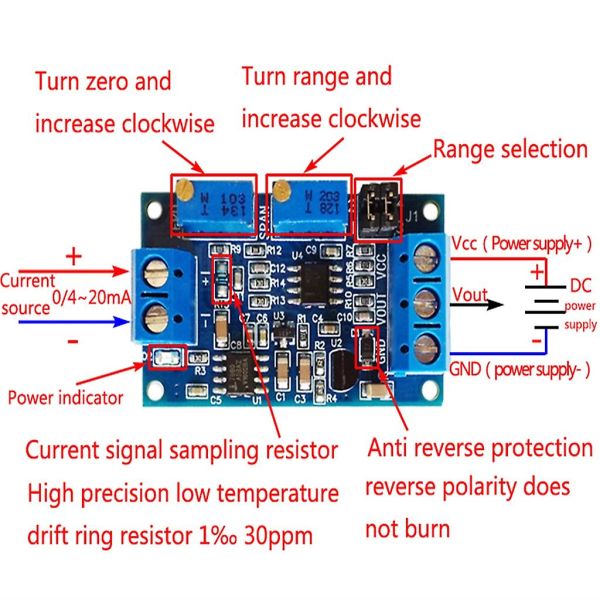

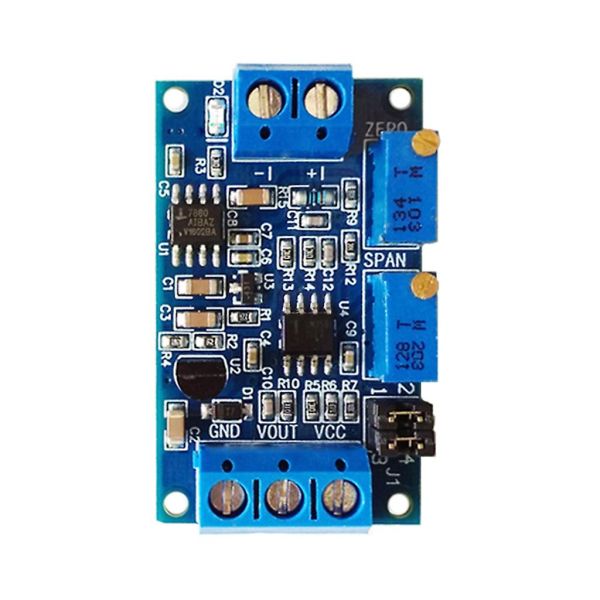

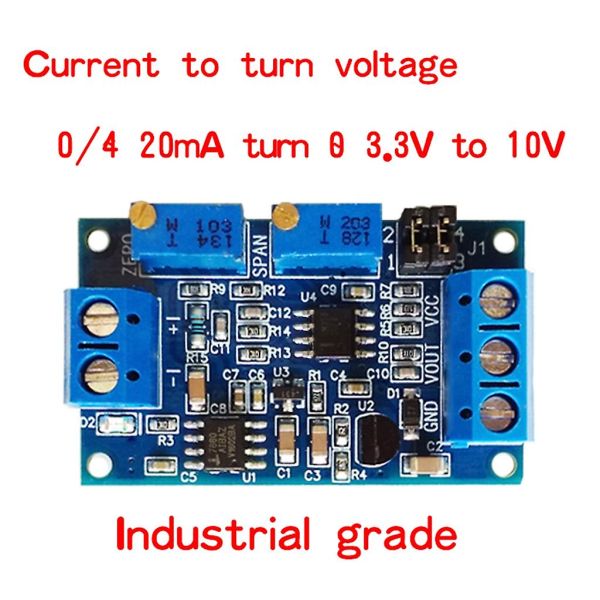

Description: The process of circuit signal transmission, the voltage signal will increase with the transmission distance becomes weak, the use of current transmission can avoid signal weakening. This module is used for the end of the current signal transmission, the signal to a voltage signal for single-chip detection. Input current support 4-20Ma, 0-20mA, output voltage support 0-3.3V 0-5V 0-10V Features: Supply voltage range, output voltage to support multiple Zero range and range can be adjusted High stability, good linearity, industrial grade Sensitive signal sampling resistance with high-precision color ring resistance, high precision, temperature drift small, high strength Constructions for use: 1. Module according to the specification of the wiring, power supply voltage 7-36V (if the output to 10V, the supply voltage must be more than 12V) 2. After power on, the indicator light D2 should be on, otherwise check the line connection. Board with reverse protection, reversal does not burn. 3. When the current input is minimum (0mA or 4mA), adjust the ZERO potentiometer so that the output VOUT is minimum (0.0V or other voltage) 4. When the current input is maximum (20mA), set the SPAN potentiometer so that the output VOUT is the maximum (3.3V or 5V or 10V, the output can be as low as 2.5V when the input is 4-20ma) Alignment to your needs, through the jumper cover to choose the appropriate range: 4--20ma: 0-2.5V range: J1 1.2 feet short, 3.4 feet short 0 - 3.3V range: J1 1.2 feet long, 3.4 feet long 0 - 5.0V range : J1 1.2ft short, 3.4ft short 0--10.0V range: J1 1.2ft short, 3.4ft long 0--20ma: 0--3.3V range: J1 1.2ft short, 3.4 ft short 0 - 5.0V range: J1 1.2 ft short, 3.4 ft short 0--10.0V range: J1 1.2 ft short, 3.4 ft long Size: 4.2x2 .5cm/1.65x0.98inch Recess: 1 Pc Note: Recess allows 1-3mm error due to manual measurement. pls make sure you don't mind before bidding The difference between different monitors, the picture may not reflect the actual color of the item. Thank you Package contents: 1 Pc x current to voltage module

Συσκευασία περιεχόμενα:
1 Pc x ρεύμα στην ενότητα τάσης
