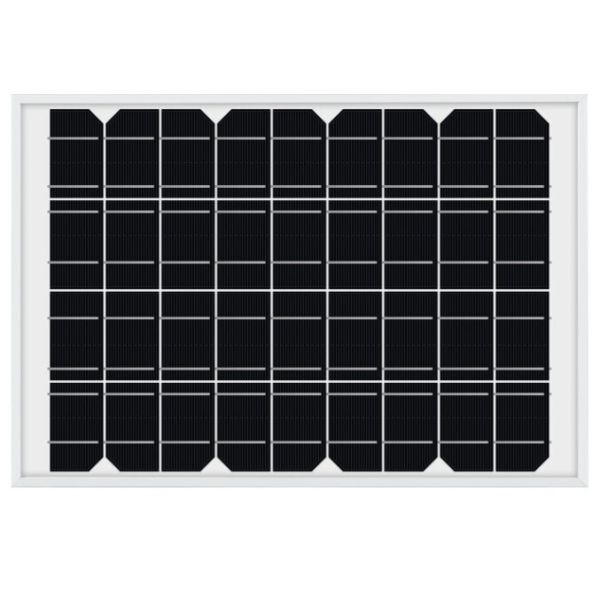

Waveshare 19598 Solar Panel (18V 10W)

Κωδικός Κατασκευαστή (MPN): 19598

ΚΩΔΙΚΟΣ: AA3510

MANUFACTURERWAVESHARE MPN20909

Specifications Key specifications Solar cell type polysilicon Power 10 Wp (Max) Output power tolerance ±3>#/td### Conversion efficiency >20>#/td### Operating voltage 17.6 V Operating current 0.57 A Open circuit voltage 21.6 V Short...

€26⁹⁵

Χωρίς ΦΠΑ: €21.73

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Specifications

Key specifications
Solar cell type	polysilicon	Power	10 Wp (Max)
Output power tolerance	±3>#/td###	Conversion efficiency	>20>#/td###
Operating voltage	17.6 V	Operating current	0.57 A
Open circuit voltage	21.6 V	Short circuit current	0.61 A
Cell quantity	36 (4×9)	Standard system voltage	1000 V (Max)
Others
Operating temperature	-40? ~ +85?
Pressure on panel	30m/s(200kg/sq.m) (Max)
Cable length	90 cm
Frame material	anodic oxidation aluminum alloy
Dimensions	340 × 232 × 17 mm
Weight	0.935 kg

Key specifications
Solar cell type polysilicon Power 10 Wp (Max)
Output power tolerance ±3>#/td### Conversion efficiency >20>#/td###
Operating voltage 17.6 V Operating current 0.57 A
Open circuit voltage 21.6 V Short circuit current 0.61 A
Cell quantity 36 (4×9) Standard system voltage 1000 V (Max)
Others
Operating temperature -40? ~ +85?
Pressure on panel 30m/s(200kg/sq.m) (Max)
Cable length 90 cm
Frame material anodic oxidation aluminum alloy
Dimensions 340 × 232 × 17 mm
Weight 0.935 kg

conversion efficiency > 20>#/h2###
polysilicon solar panel, widened chips, larger receiving area, capturing trivial source

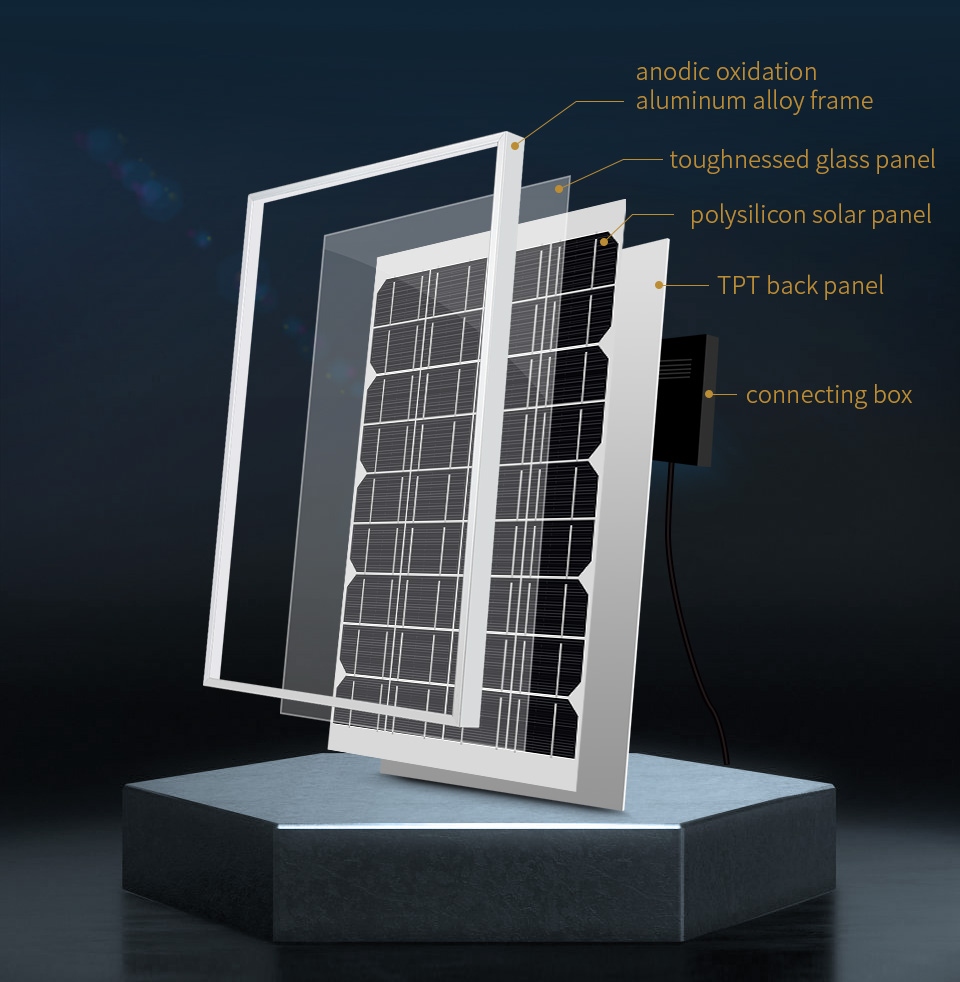

high strength frame

anodic oxidation aluminum alloy material, multi layers structure, waterproof and durable

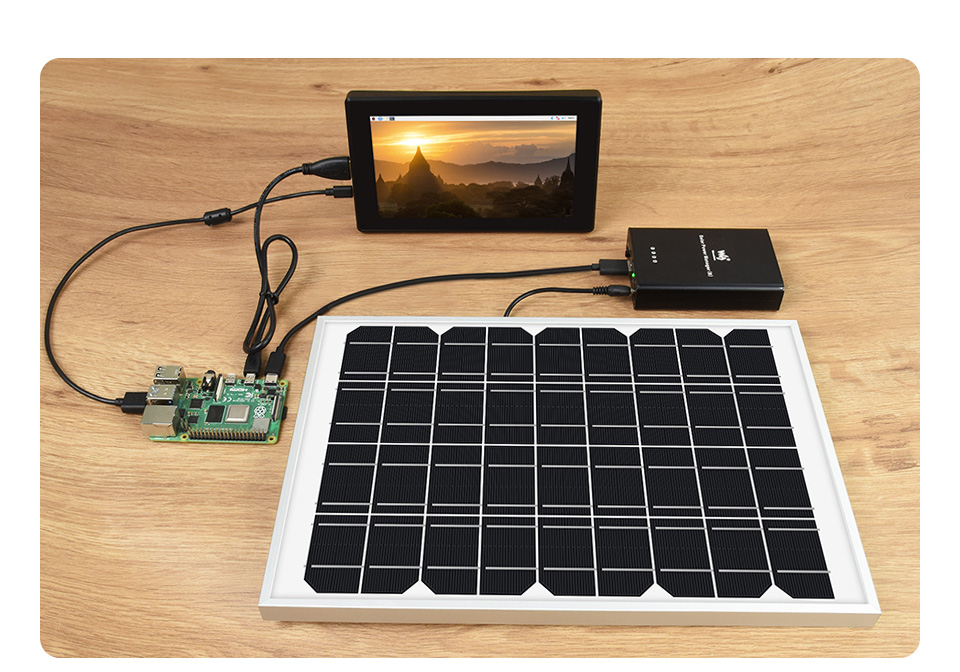

Application example

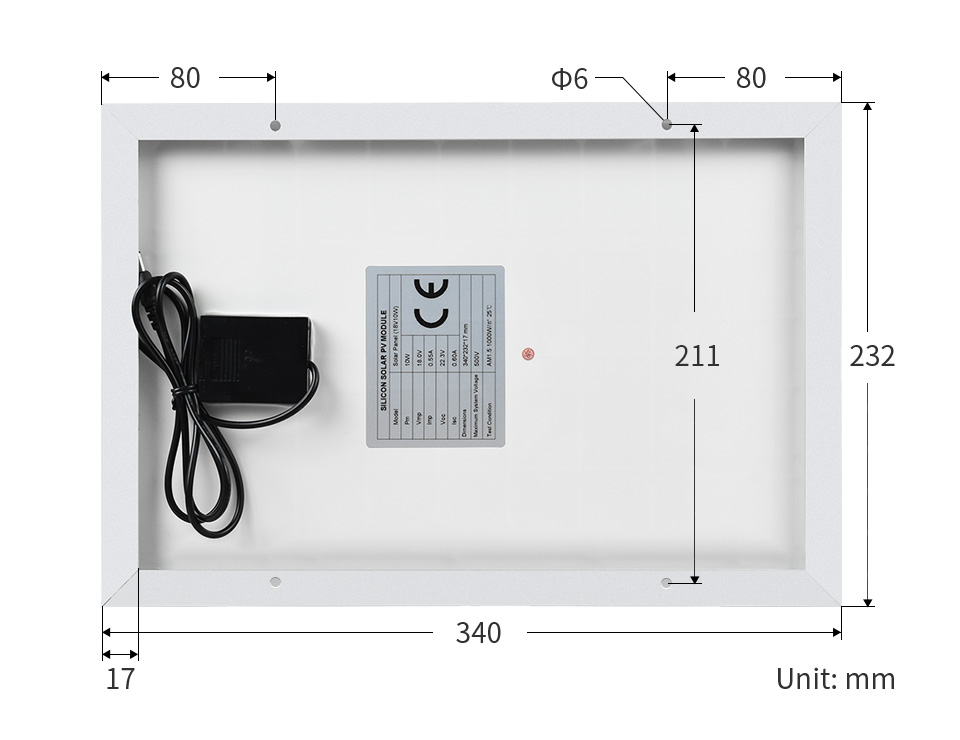

Outline Dimensions
