Habotest Digital RCD/Loop Earthing Tester HT5910 (Black/Red)

Κωδικός Κατασκευαστή (MPN): HT5910

ΚΩΔΙΚΟΣ: IA0286

Habotest HT5910 Digital RCD/Loop Earth Tester The Habotest HT5910 resistance tester is a tool that will allow you to take resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear...

€125⁷⁴

Χωρίς ΦΠΑ: €101.40

Άμεσα διαθέσιμο

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

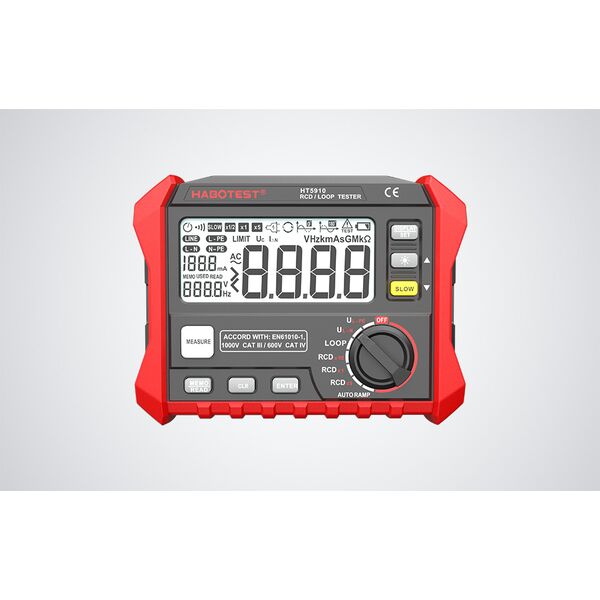

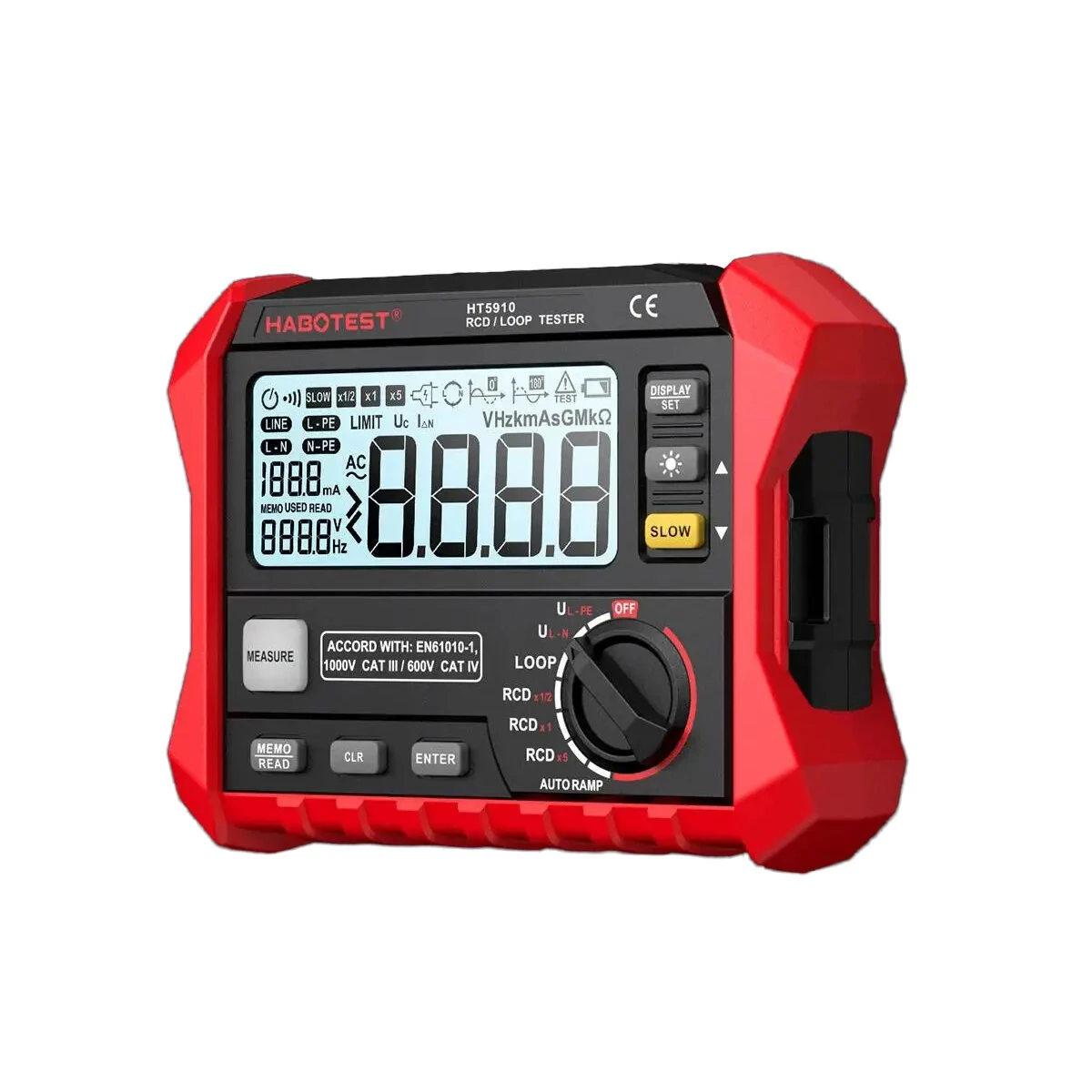

Habotest HT5910 Digital RCD/Loop Earth Tester

The Habotest HT5910 resistance tester is a tool that will allow you to take resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data being taken.

Functionality first and foremost

With the help of the meter you will successfully obtain information about the earth resistance. You will gain access to 100 groups, which store data from the measurements taken. The device is equipped with a special button that allows you to select the desired measurement type and start the meter operation with the "Measurement" button.

Ease of use

The HT5910 uses an easy-to-read LCD screen that displays all the data being received. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately.

Specifications:

Manufacturer	Habotest
Model	HT5910
Activation time	1 x ID N300 (500ms), 5 x ID N40ms (150ms) (±3ms)
Activation current	(0.2-1.1)IΔN (±0.1IΔN)
Contact voltage	0~99.9V (±10%+0.2V)
Alternating voltage	0~440V (±3%+3V)
Frequency	DC, 45~65Hz (±1Hz)
Loop resistance (RL)	0.1~2000Ω (±10%+0.2d)
RL current test	0.51 IΔN (±10%+10d)
Power multiplication of the measurement current	x0.5, x1, x5
Current level (IΔN)	10mA, 30mA, 100mA, 300mA, 500mA
Phase angle	0° or 180°
Power supply	6 x 1.5V AA battery (not included)
Dimensions	180 x 140 x 65mm
Weight	About 95g
Safety rating	EN61010-1 / CAT.III600V
Data storage	100 groups
Interconnection	USB2.0
