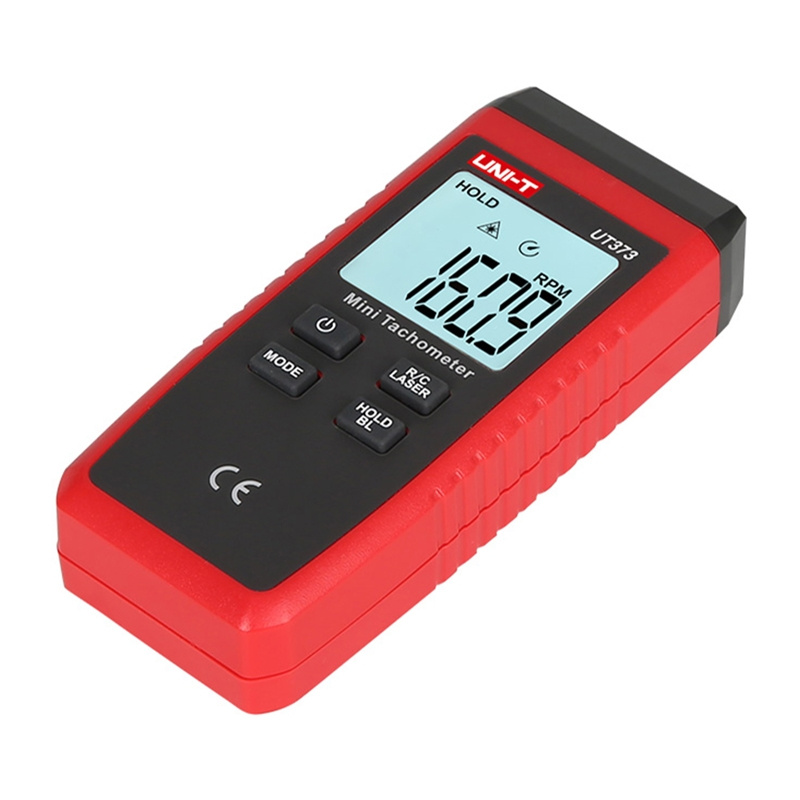

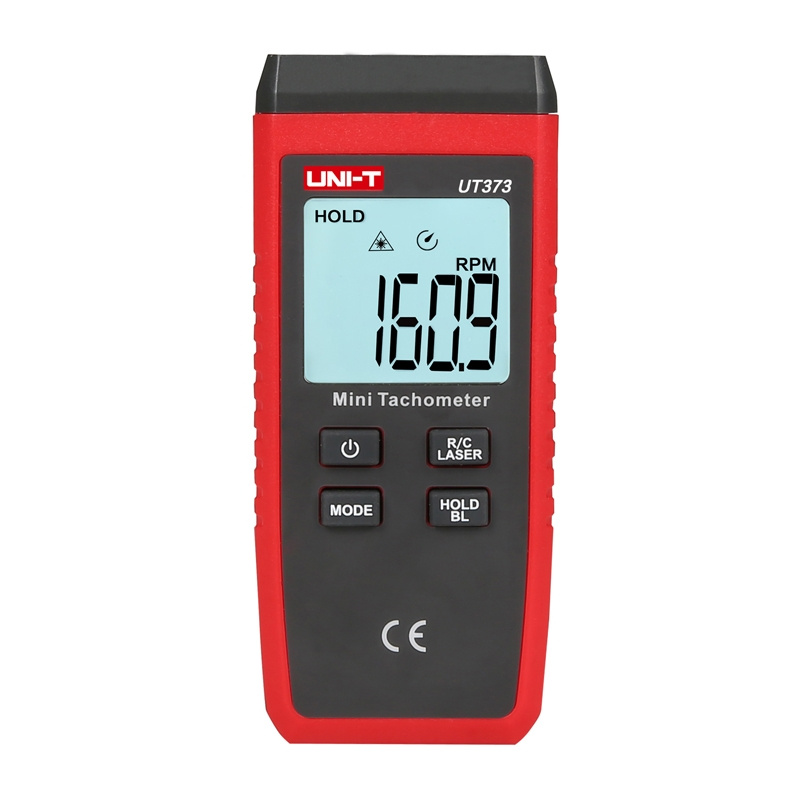

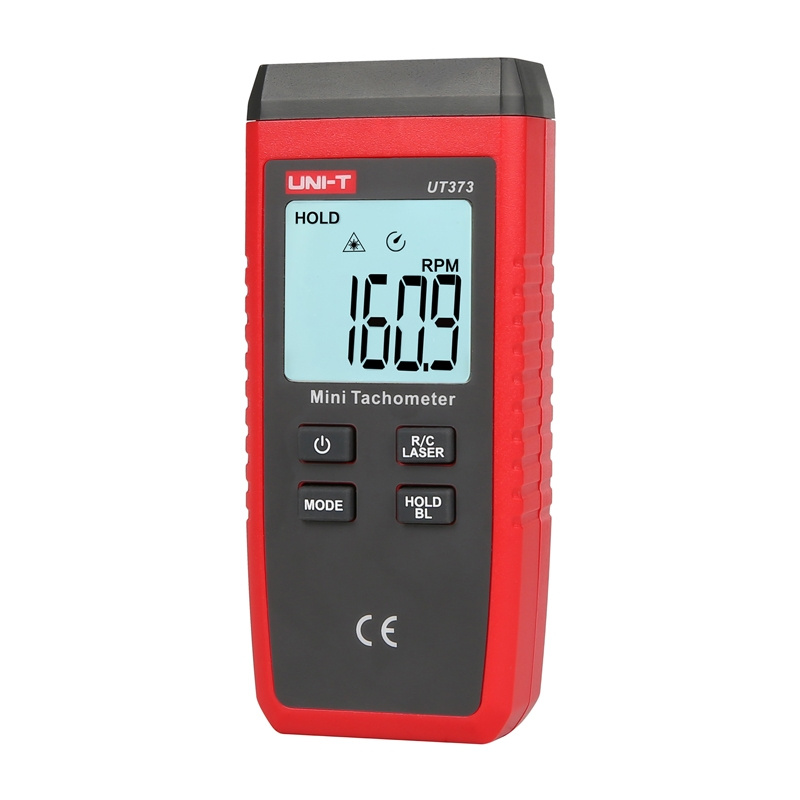

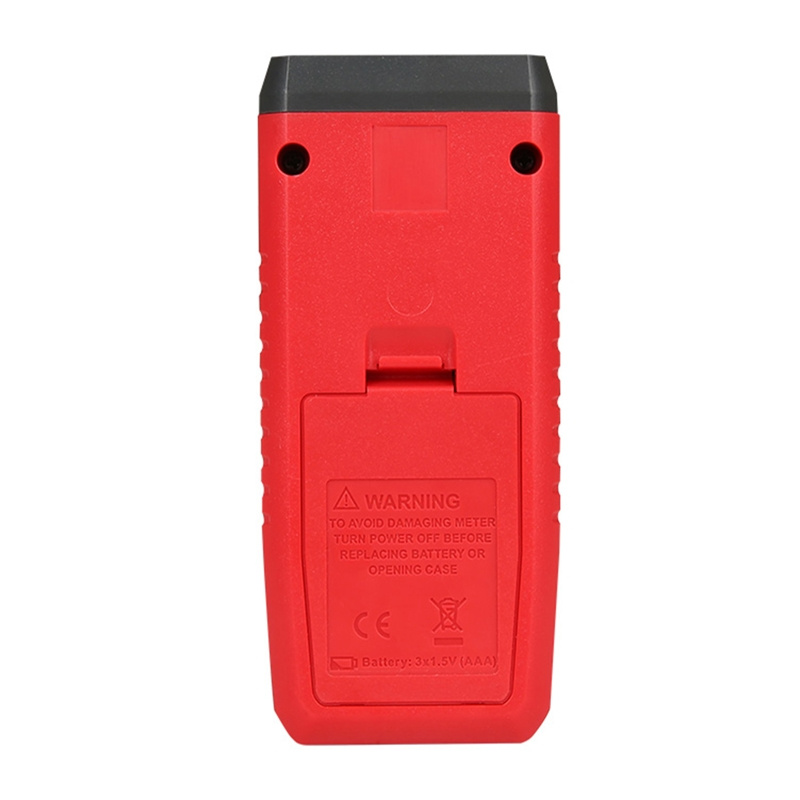

UNI-T UT373 Non-Contact Tachometer

UT373
IA0279
UNI-T UT373 Non-Contact Tachometer The UNI-T UT373 non-contact tachometer is a reliable tool for measuring the speed of engines and other machines, providing safe and accurate results without the need to contact a rotating object. The device allows measurement in RPM units, offering...
2096
Χωρίς ΦΠΑ: 16.90
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

UNI-T UT373 Non-Contact Tachometer

The UNI-T UT373 non-contact tachometer is a reliable tool for measuring the speed of engines and other machines, providing safe and accurate results without the need to contact a rotating object. The device allows measurement in RPM units, offering automatic range selection and displaying values up to 99999, with an overload indication ("OL"). The UT373 features Max/Min functions, data hold, active measurement indication (Signal Trigger/Laser-On), as well as low-charge indication and automatic shutdown. The backlit LCD display ensures readability in all operating conditions, while CE and UKCA certifications confirm high quality and safety standards.

Functionality that makes everyday work easier

The UT373 is designed for quick and easy operation - automatic range selection allows for immediate accurate results, while Max/Min functions help monitor extreme values during testing. The data hold function allows you to conveniently save the result on the screen, which is extremely useful when analyzing measurements. The tachometer indicates laser activity and low-charge status, ensuring uninterrupted operation without unnecessary interruptions.

Robust design and ease of use

The UNI-T UT373 features a lightweight, ergonomic design and the robustness required for industrial environments and laboratories. Thanks to the backlit LCD display, reading the results is possible even in poorly lit areas. Automatic shutdown of the device after a period of inactivity helps save energy and prolongs battery life. The UT373 is the ideal solution for professionals who value safety, accuracy and comfort every day.

Included

  • revolution counter
  • Batteries
  • reflective tape
  • user manual


Specifications:

ManufacturerUNI-T
ModelUT373
Power supply3 × 1.5V battery (R03)
Screen5-digit department code - maximum value 99999
ColorRed, gray
Weight85 g (without battery)
Dimensions183.8 × 56 × 34mm
Speed measurement (RPM)10.0 ~ 9999.9 RPM (resolution: 0.1 RPM)
Speed measurement (RPM)10000 ~ 99999 RPM (resolution: 1 RPM)
RPM measurement0 ~ 99999 counts (resolution: 1)
Accuracy:RPM measurement: ±(0.04%+2); RPM measurement: ±1
Automatic range selectionSupported
Automatic shutdownSupported
Low battery indicatorBuilt-in
Active laser indicatorSupported
Data reservation functionSupported
Recording of maximum and minimum values (MAX/MIN)Supported
Toggle speed/count modeSupported
Overload markingSupported
LCD screen backlightBuilt-in
Refresh rate1 s to 7 s (for speeds >120 RPM: 1 s)
Sensor typePhotodiode and laser tube
Measurement distance50mm ~ 200mm
Measuring angle±30° from the vertical axis
Drop test1m


MANUFACTURER
UNI-T
MPN
UT373
EAN
6935750537305
