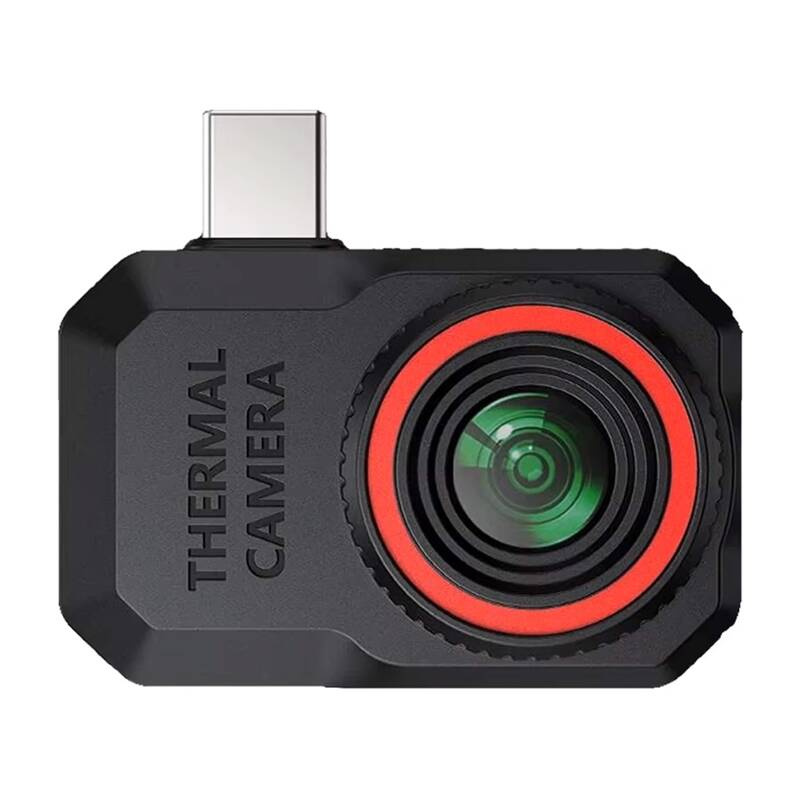

Habotest HT820 industrial infrared thermal imaging camera
The Habotest HT820 industrial infrared thermal imaging camera will turn your smartphone into an advanced diagnostic tool. Thanks to its high-resolution sensor and wide temperature measurement range (from -15°C to 600°C), the device allows for accurate real-time thermal imaging. Its compact design, intuitive operation, and features such as high and low temperature monitoring, point, linear, and area measurement, and limit alarm make it ideal for industry, construction, automotive, and technical diagnostics.
Advanced sensor and wide measurement range
With a resolution of 256x192 pixels and a frame rate of 25 Hz, the camera offers smooth and detailed thermal imaging. High measurement accuracy (±2°C or ±2% of reading) allows reliable monitoring of temperature changes in a variety of working environments. An advanced thermal sensor with a sensitivity of <50mK @25°C allows the detection of even the smallest temperature differences, which is crucial for accurate thermal analysis.
Intelligent temperature monitoring features
The Habotest HT820 camera automatically detects and monitors the highest and lowest temperature areas, facilitating quick diagnosis. You can also define your own measurement points and use an audible alarm to notify you when a set limit is exceeded.
Convenient connection to your smartphone
The device runs on Android, with a direct connection via the USB-C port. Thanks to a special application, you will gain access to various imaging functions and the ability to record and analyze measurements in the form of photos and videos. In addition, the application allows you to customize temperature units, edit images by adding drawings and text notes, and set thermal alarms. The Polish-language interface makes the camera easy to use.
Durable design
The aluminum housing provides durability and resistance to damage. Despite its robust construction, the camera weighs only 17 grams. Its dimensions are 43 x 36 x 18 mm - so it is extremely handy and fits in a pocket, making it an excellent solution for those working in the field. The IP54 standard guarantees protection against dust and splashes, so the device will perform well even in demanding working conditions.
Flexible application
The Habotest HT820 is an essential tool for building diagnostics, industrial quality control, machine monitoring and automotive diagnostics. With a choice of 6 color palettes and a variety of measurement modes, it is ideal for professionals looking for an accurate and mobile thermal analysis device.
Included: Axial thermal energy measurement and measurement system:
- Habotest HT820 industrial infrared thermal imaging camera
- USB-C/USB-C cable
- Storage case
- User manual
| Manufacturer | Habotest |
|---|
| Manufacturer code | HT820 |
|---|
| Analysis | 256x192 |
|---|
| Working wavelength | 8-14 μm |
|---|
| Refresh rate | 25Hz |
|---|
| NETD | <50mK @25℃ |
|---|
| Focal length of the lens | 3.2mm |
|---|
| Visual field | 56° x 42° |
|---|
| Temperature measurement | Automatic high and low temperature monitoring, center point temperature measurement, spot temperature measurement, area temperature measurement, line temperature measurement, temperature range display, and quick check of high temperature areas |
|---|
| Temperature measurement range | From -15°C to 600°C |
|---|
| Temperature measurement accuracy | ±2°C or ±2% of reading |
|---|
| Temperature range display | Yes |
|---|
| Settings | Configure thermal imaging parameters, temperature units, language, high temperature alarm settings. |
|---|
| Real-time image rotation | Yes |
|---|
| Image color palettes | White hot, black hot, iron red, rainbow, red hot, cool blue |
|---|
| Operating temperature | -10°C to 75°C |
|---|
| Storage temperature | -45°C to 85°C |
|---|
| Waterproof and dustproof | IP54 |
|---|
| Housing material | aluminum alloy |
|---|
| Dimensions | 43 x 36 x 18 mm |
|---|
| Weight | 17g |
|---|
| Color | black |
|---|
