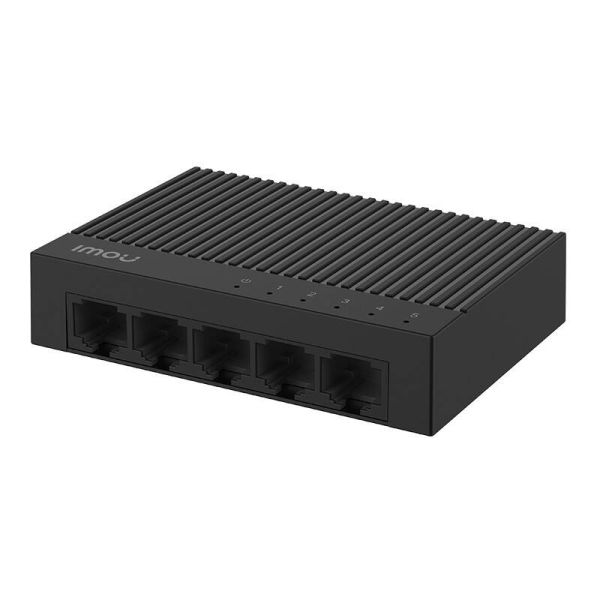

IMOU LAN Switch 5 ports SF105C 100Mb/s (Black)

LAN Switch 5 ports 100 Mbps IMOU SF105C

The IMOU SF105C LAN Switch provides fast and stable network connectivity with its 5 RJ45 ports. It offers automatic speed configuration in the 10/100Mbps range and the Auto MDI/MDIX function eliminates the need for crossover cables. In addition, the 802.3X Flow Control protocol ensures effective data flow control. Finally, the device is easy to install, while the Plug & Play function enhances user convenience.

Quick connection

The SF105C model provides high performance and connectivity flexibility. It is equipped with 5 RJ45 ports, making it ideal for managing intensive data traffic and ensuring the performance required for modern network applications. All ports support auto-configuration, allowing for automatic adjustment of data transfer speeds from 10 to 100Mbps. As a result, the switch is highly compatible with various devices and allows optimizing the connection speed according to current needs, ensuring smooth and efficient network operation, whether you are transferring large files, streaming high-definition video, or using advanced applications.

Efficient data flow management

The device supports the advanced 802.3X Flow Control function, ensuring stability and efficiency of data flow within the network. The implemented flow control mechanism allows for the management and coordination of data transmission between the switch and connected devices, which is necessary during high network load. As a result, the switch effectively prevents data packet loss and reduces the risk of network congestion, which makes it an excellent solution for both advanced home applications and demanding professional uses.

Efficient operation

The switch is unmanaged, which translates into ease of use without the need for complex settings. It offers an overall throughput of 1Gbps and a packet forwarding speed of 0.1488Mpps per port. The packet buffer memory is 768Kb, allowing for efficient handling of network traffic. The device also supports Jumbo frames up to 2K and has a MAC table with 2K entries. Finally, it provides surge protection up to 2KV in common mode and 1KV in differential mode.

Easy configuration

Support for Auto MDI/MDIX makes the IMOU switch automatically detect the type of cable connected, eliminating the need for special crossover cables, thereby simplifying the network configuration process. Another advantage is Plug & Play, a feature that ensures immediate operation of the device without the need to install additional drivers.

Well-designed construction

The device's casing is made of high-quality plastic, ensuring lightness (55g) and durability. The device's dimensions are just 87.6 x 62 x 21. mm, allowing you to comfortably place it on a wall or on a desk.
