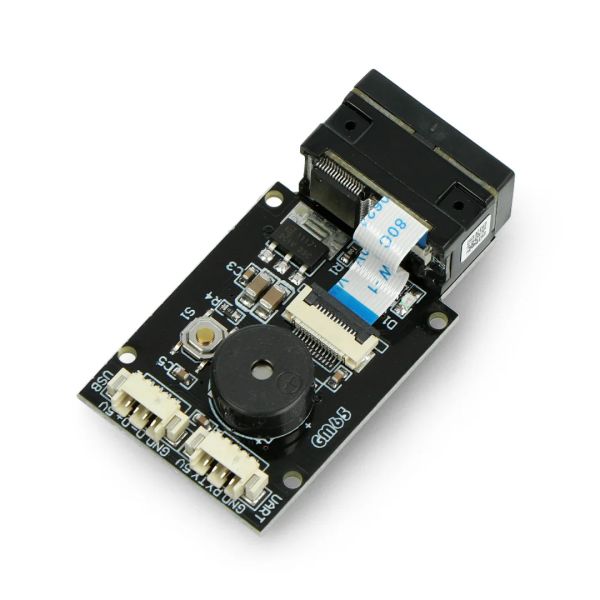

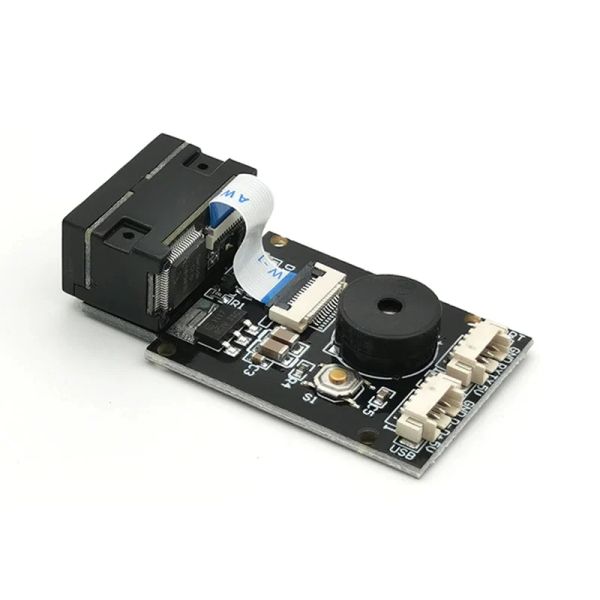

GM65 QR & Barcode Scanner Module(DFR0660)

Κωδικός Κατασκευαστή (MPN): DFR0660

ΚΩΔΙΚΟΣ: AA3411

GM65 qr and barcode scanner support all common 1D barcodes and common 2D codes. Also can directly read barcode from the phone screen. The barcode and qr scanner has both USB and UART TTL interface, so it can be used directly with computer or it can be used in embedded projects with Arduino,...

€77⁷⁶

Χωρίς ΦΠΑ: €62.71

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

This GM65 code scanner module can accurately read the barcode or QR code on paper or screen at high speed (about 1s) even in poor light environment. This module can be easily embedded into multi-medium barcode scanning equipment, including self-service vending machine, subway gate machine, access control, payment machine, etc.

Features

Interface: USB, UART
Voltage: DC 5V
Ambient light: Ambient light: 0~86,000 lux
Reading angle: rotating 360 °, Deflection ± 60 °, Tilt ± 65°
Scanning angle: 34 ° (horizontal) 26 ° (vertical)
Resolution: ≥ 0. 1mm (4mil)
Dimension: 21.4mm x 13.5mm x 11.1mm
