IMOU LAN Switch 5 ports SG105C (Black) 1000mbps

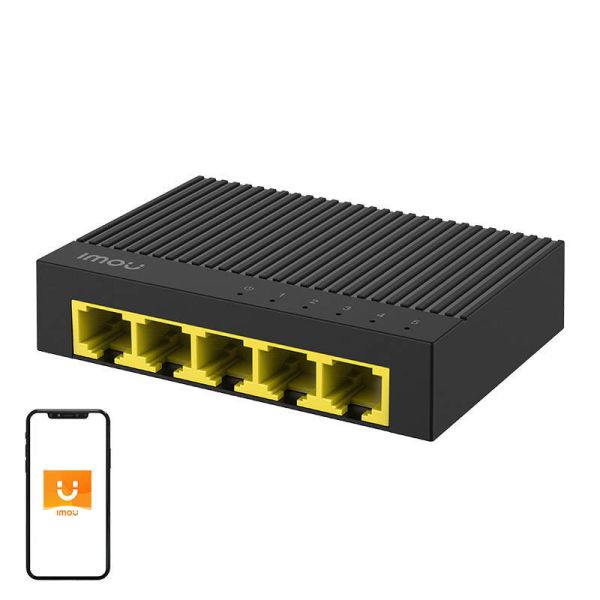

LAN Switch 5 ports IMOU SG105C

The IMOU SG105C LAN Switch offers 5 RJ45 ports, providing fast and stable network connection. It supports automatic speed "negotiation" in the 10/100/1000Mbps range, while the Auto MDI/MDIX function eliminates the need for crossover cables. In addition, the 802.3X Flow Control protocol ensures effective data flow control. The device is easy to install, while the Plug & Play function enhances user convenience.

High-speed connection

Enjoy the convenience of high performance and flexible connections provided by the IMOU SG105C LAN Switch. With 5 RJ45 ports, this device is ideal for handling intensive data traffic and ensures the performance required for modern network applications. Each port supports auto-negotiation, allowing for automatic adjustment of data transfer speeds from 10 to 1000Mbps. As a result, the SG105C is highly compatible with various devices and allows for optimizing the connection speed according to current needs, ensuring smooth and efficient network operation, whether you are transferring large files, streaming high-definition videos, or using advanced applications.

Optimized data flow

The advanced 802.3X Flow Control feature offered by the IMOU device ensures stability and efficiency in data flow within the network. This flow control mechanism allows for the management and coordination of data transmission between the switch and connected devices, which is especially important in high-load network situations. As a result, the device can prevent data packet loss and reduce the risk of network congestion, making it an excellent solution for both demanding business use and advanced home applications.

Impressive performance

The switch is unmanaged, which translates into ease of use without the need for complex settings. It offers an overall throughput of 10Gbps and a packet forwarding speed of 1,488Mpps per port. The packet buffer memory is 384Kb, supporting efficient management of network traffic. The device supports Jumbo frames up to 15K and has a MAC table with 2K entries. It also provides surge protection up to 2KV in common mode and 1KV in differential mode.

Seamless configuration

Thanks to the Auto MDI/MDIX function, the IMOU switch automatically detects the type of cable connected, eliminating the need for special crossover cables. This solution significantly simplifies the network configuration process. An additional advantage is Plug & Play, a feature that ensures immediate operation of the device without the need to install additional programs.

Sophisticated design

The device's casing is made of high-quality plastic, ensuring lightness (50g) and durability. The device's dimensions are just 87.6 x 62 x 21.1mm, allowing you to easily place it on a desk or on the wall.
