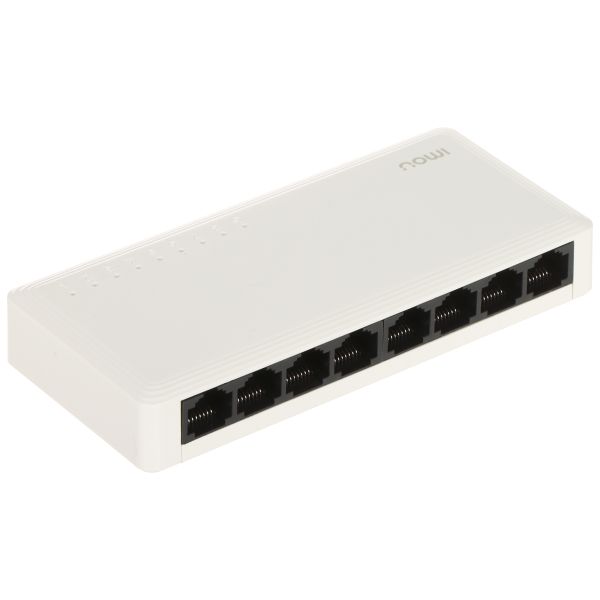

IMOU SG108C 8-port LAN switch (White)

IMOU SG108C 8-port LAN switch.

The IMOU SG108C LAN switch offers 8 RJ45 ports, providing fast and stable network connectivity. It supports auto-negotiation of speed in the 10/100/1000 Mbps range, while the Auto MDI/MDIX function eliminates the need for crossover cables. In addition, the 802.3X Flow Control protocol provides effective data flow control. The device installation is quick and hassle-free, while the Plug & Play function enhances user convenience.

Quick connection

Enjoy the convenience of high bandwidth and flexible connectivity provided by the IMOU SG108C LAN switch. With 8 RJ45 ports, this device is ideal for handling high data traffic and provides the performance required for modern network applications. Each port supports auto-negotiation, allowing for automatic adjustment of data transfer rates from 10 to 1000 Mbps. As a result, the switch is widely compatible with a variety of equipment and allows you to optimize connection speeds according to your current needs, ensuring that you can work smoothly and efficiently on your network, whether you are transferring large files, streaming high-definition video, or using advanced applications.

Optimized data flow

The advanced 802.3X Flow Control feature of the IMOU switch ensures the stability and efficiency of your network data flow. This flow control mechanism allows you to manage and coordinate data transmission between the switch and connected devices, which is especially important in situations of high network load. As a result, the device is able to prevent data packet loss and reduce the risk of network congestion - thus it is an excellent solution for both demanding professional users and advanced home applications.

Impressive performance

The switch is unmanaged, which translates into ease of use without the need for complex configurations. It offers a total throughput of 16 Gbps and a packet transfer rate of 1,488 Mpps per port. The packet buffer memory is 4 Mb, which supports the efficient handling of network traffic. The device supports jumbo frames up to 15K and has a MAC table with 8K entries. It also provides surge protection up to 2 KV in common mode and 1 KV in differential mode.

Hassle-free configuration

With Auto MDI/MDIX support, the IMOU switch automatically recognizes the type of cable connected, eliminating the need for special patch cables. The solution used significantly simplifies the network configuration process. An additional advantage is Plug & Play, a feature that guarantees immediate operation of the device - no need to install additional drivers.

Sophisticated design

The device's casing is made of high-quality plastic, which translates into lightness (79 g) and durability. The dimensions of the switch are only 133.2 x 62 x 21 mm, so you can freely place it on your desk or mount it on the wall.

Specifications:
