Light dimmer for DALI system Shelly DALI Dimmer Gen3

DALIGen3
EA0858
MANUFACTURERSHELLY MPNDALIGen3
Light dimmer for DALI system Shelly DALI Dimmer Gen3 The Shelly DALI Dimmer Gen3 is a compact and highly versatile device for controlling the brightness of lighting in DALI systems. It acts as a controller for a master driver that supports DALI Part 207 (DT6) luminaires and sends...
5207
Χωρίς ΦΠΑ: 41.99
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

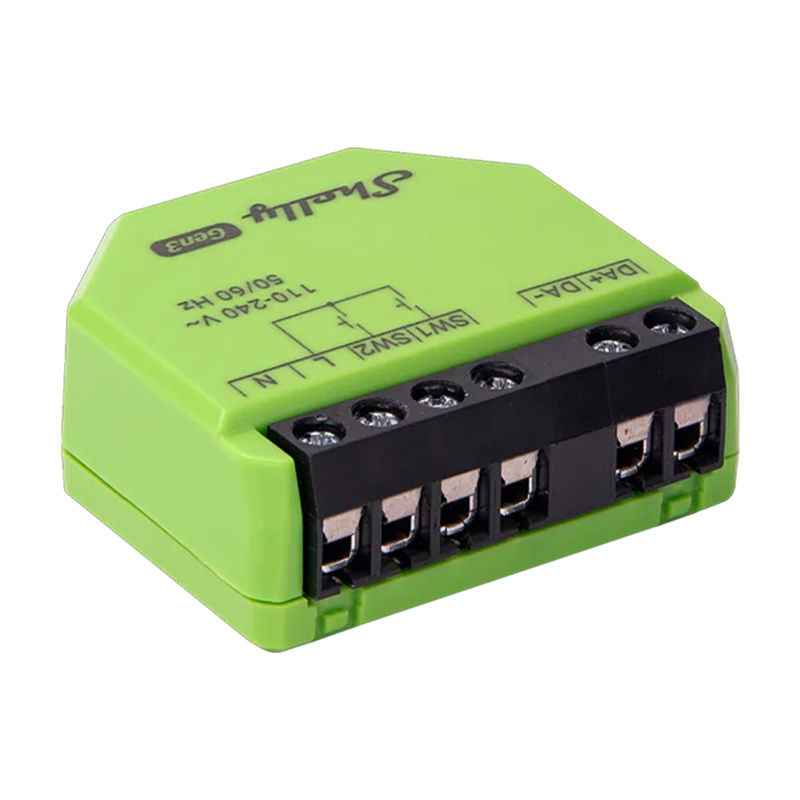

Light dimmer for DALI system Shelly DALI Dimmer Gen3

The Shelly DALI Dimmer Gen3 is a compact and highly versatile device for controlling the brightness of lighting in DALI systems. It acts as a controller for a master driver that supports DALI Part 207 (DT6) luminaires and sends broadcast messages to all devices on the bus. It also supports Wi-Fi, Bluetooth and the BLE Gateway and Wi-Fi Range Extender function. It will work flawlessly in both residential and commercial environments - and without the need for an additional hub.

Integrated DALI power supply and support for 5 luminaires

The device has a built-in 10 mA power supply for the DALI bus, which allows it to power and control up to 5 DALI luminaires without the need for an external power supply unit. This is a huge convenience during installation - both in new buildings and when retrofitting existing lighting installations.

Precise brightness control

The DALI Dimmer Gen3 offers advanced dimming capabilities - including minimum and maximum brightness settings, transition duration and button dimming rate. With the night mode, you can also set a fixed brightness level at specific times. The device also supports timers, weekly programs and DALI bus failure response (light activation at 100%).

Flexible local control

The Shelly DALI Dimmer Gen3 works with classic wall switches and allows flexible lighting control - either with one button or two. So you can easily integrate it into your existing installation.

Full integration with the Shelly ecosystem and external systems

The dimmer integrates seamlessly with the Shelly Smart Control app, allowing remote control, scenes, schedules and local automation - even without a cloud connection. The device also supports scripting, webhooks, MQTT and local actions, giving you great configuration flexibility. In addition, it supports KNXnet/IP communication, so it can be easily integrated into advanced KNX installations. In addition, the dimmer is compatible with popular smart home platforms, such as Amazon Alexa, Google Home and SmartThings. In addition, the product belongs to the Gen3 series, featuring Shelly's proprietary ESP32-C3 chip and 8 MB of flash memory. This not only guarantees high performance, but also allows for future upgrades to the Matter standard, ensuring compatibility with upcoming smart home solutions.

Virtual component support

Shelly DALI Dimmer Gen3 supports the "virtual accessories" feature - new to the Gen3 series. It allows you to create virtual devices in the Shelly Smart Control app and integrate third-party products into the overall Shelly ecosystem, increasing flexibility in scene creation and automation.


ManufacturerShelly
ModelDALIGen3
Dimensions42 × 37 × 17mm
Weight18g
Maximum tightening torque for screw connections0.4 Nm
Cable cross-section0.5-1.5 mm² / 20 to 16 AWG (solid, stranded and bootlace sheathed)
Stripped cable length5-6mm
PlaceIn wall boxes, suspended ceilings
Housing materialPlastic
Housing colorGreen
Operating temperature rangeFrom -20°C to 40°C
Working environment humidity30-70% RH
Maximum installation altitude2000 m
Power supply110-240V AC ±10% 50/60Hz
Power consumption< 2W
Required neutral wireNo
Bus power supplyGuaranteed 10 mA (up to 5 DALI devices), short-circuit current < 35 mA
Bus voltageNominal voltage 16 V
Internal temperature sensorYes
Wi-Fi protocol802.11 b/g/n
Wi-Fi RF Band2401-2495 MHz
Max. Wi-Fi signal strength< 20 dBm
Wi-Fi rangeUp to 30 m indoors, up to 50 m outdoors (depending on conditions)
Bluetooth protocol4.2
Bluetooth RF Band2400-2483.5 MHz
Max. Bluetooth signal strength< 4 dBm
Bluetooth rangeUp to 10 m indoors, up to 30 m outdoors (depending on conditions)
ProcessorESP32-C3 Shelly
Flash memory8MB
Number of programsUp to 20
Webhooks (URL shares)Up to 20 (up to 5 URLs per webhook)
Scripting supportYes
MQTTYes
EncryptionYes, TLS 1.2

MANUFACTURER
SHELLY
MPN
DALIGen3
EAN
3800235261866
