Soldered 333014 Li-ion charger with protection

Κωδικός Κατασκευαστή (MPN): 333014

ΚΩΔΙΚΟΣ: AA3506

MANUFACTURERSoldered MPN333014

€10⁷⁰

Χωρίς ΦΠΑ: €8.63

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Lithium batteries are charged differently than other standard batteries and devices. A charger for lithium batteries, like this one, is required for charging these batteries. Integrated with CC/CV charging technology, it is the simplest method for charging lithium batteries. This charger also provides protection against overcharging, undercharging, and short circuits, which offers common and sufficient protection for the majority of batteries.

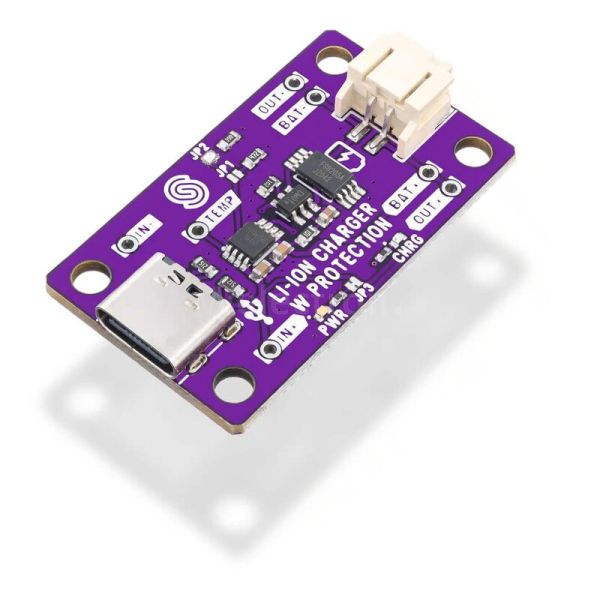

The board features a USB Type-C port for power supply, a JST connector for batteries, the charging circuit, protection, and two status LEDs.

Dimensions: 38 mm x 22 mm Maximum Output Current: 1 A Standby Current Consumption: 100 µA Logic Voltage: 5 V Input Voltage: 4.5 V - 5.5 V Connections: USB Type-C (socket), JST for the battery Mounting Holes: 4
