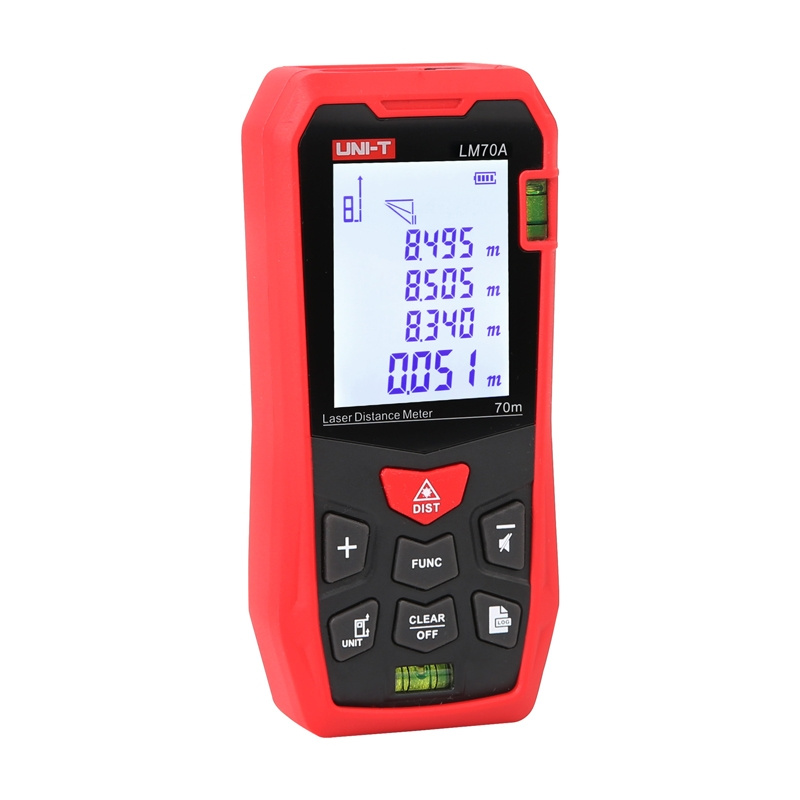

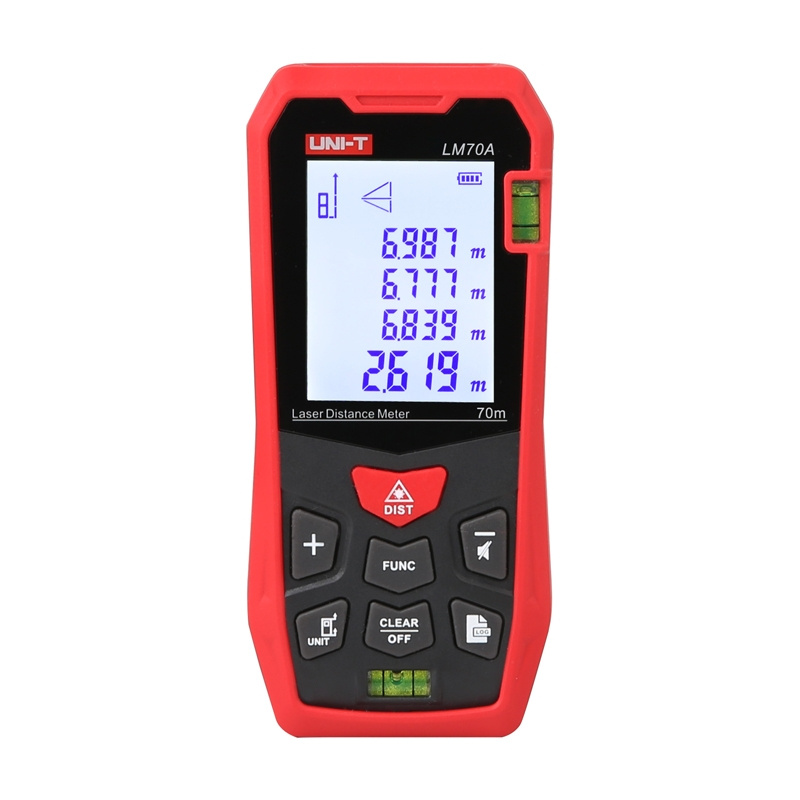

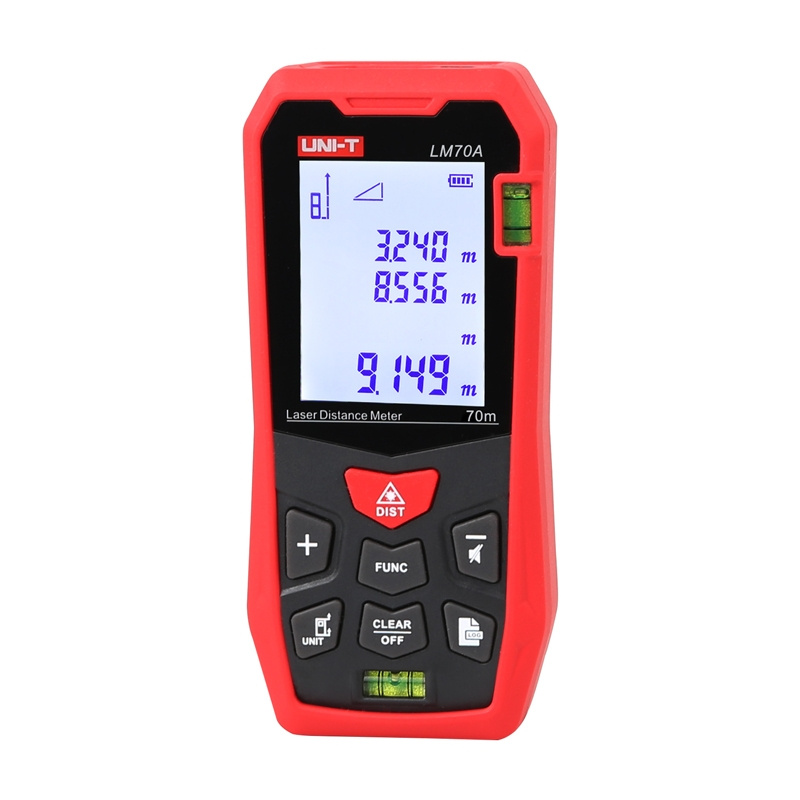

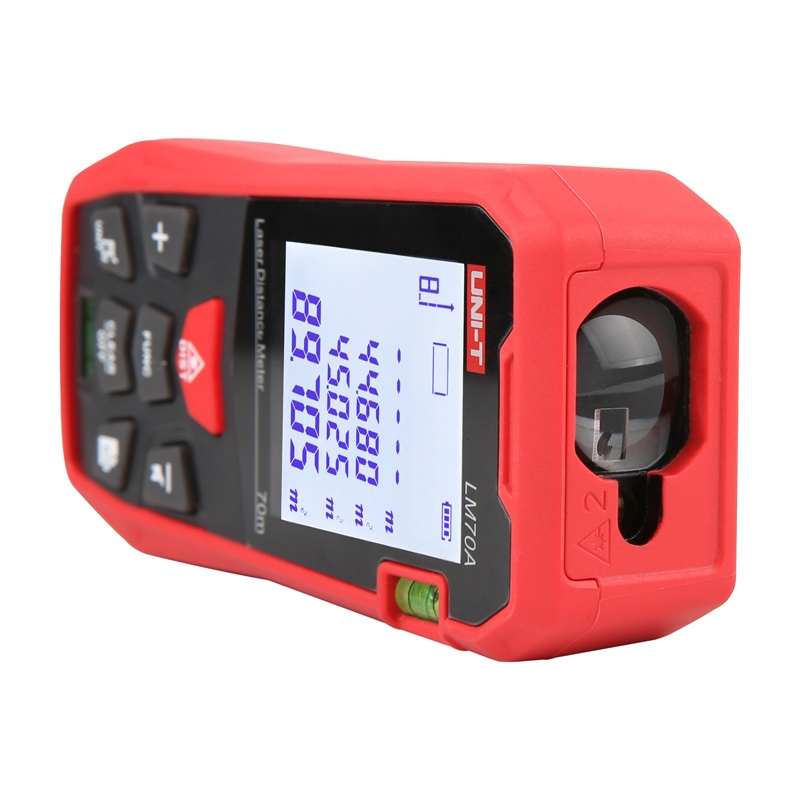

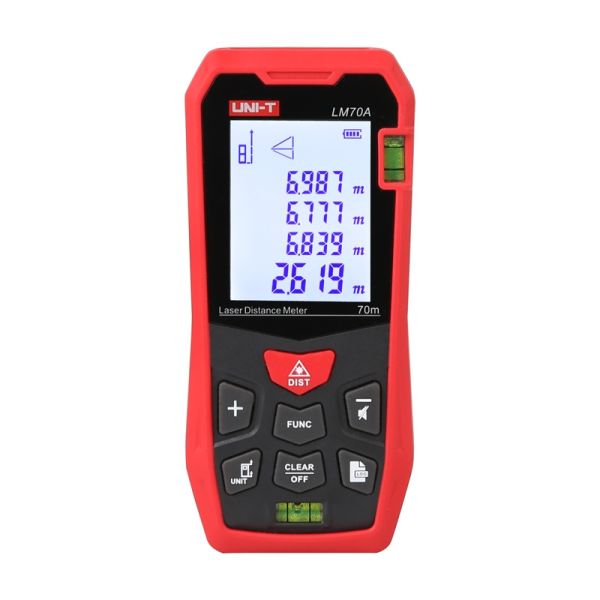

UNI-T LM70A laser rangefinder
The UNI-T LM70A is a laser distance meter designed for precise distance measurements in construction, interior design, engineering and technical supervision. With a range of up to 70 meters and a measurement accuracy of up to 1 mm, it guarantees reliable results even in demanding conditions. Its intuitive operation and ergonomic housing make it an ideal tool for both professionals and individual users.
Functions that make every measurement easier
The LM70A supports not only single and continuous measurements, but also calculation functions such as determining area, volume, indirect measurement (Pythagoras function), as well as adding and subtracting results. The device allows you to select a reference point (front or rear of the device) and work in metric and imperial units (m/ft/in), increasing its flexibility.
Readability and ease in all conditions
A large 2-inch backlit LCD display provides excellent readability of results, while built-in water levels (horizontal and vertical) help align the device and increase measurement accuracy. A 99-measurement result storage function allows quick access to measurement history without the need to keep notes. Automatic laser and instrument shut-off saves energy.
Compact, ready for use in the field
The rangefinder is powered by two AAA (1.5V) batteries, while its compact size and light weight make it easy to use on a daily basis. The robust design makes the LM70A fit well in the hand and withstand intensive use. A practical case is included for easy transport and protection of the device from damage.
Included
- UNI-T LM70A laser rangefinder
- Carrying case
- User manual (English)
Specifications:
| Manufacturer | UNI-T |
|---|
| Manufacturer code | LM70A |
|---|
| Certifications | CE, UKCA, RoHS |
|---|
| Measuring range | up to 70 m |
|---|
| Accuracy | ±(2mm + 0.00005 × D) |
|---|
| Smaller display unit | 0.001m |
|---|
| Units of measurement | Meters (m), feet (ft), inches (in) |
|---|
| Measurement reference point | Front/back of the device |
|---|
| Laser type | 630-670 nm, <1 mW, class 2 |
|---|
| Screen type | LCD, 2.0 inches |
|---|
| Measurement functions: | Pythagoras, addition and subtraction, automatic calibration, levels (horizontal and vertical). |
|---|
| Measurement memory | 99 teams |
|---|
| Automatic shutdown | Laser - after 30 seconds, device - after 3 minutes |
|---|
| Working temperature | 0°C ~ 40°C |
|---|
| Storage temperature | -20°C ~ 60°C |
|---|
| Power supply | 2 × AAA 1.5V battery (LR03) |
|---|
| Color | red-gray |
|---|
| Dimensions | 122 × 52 × 29.5mm |
|---|
