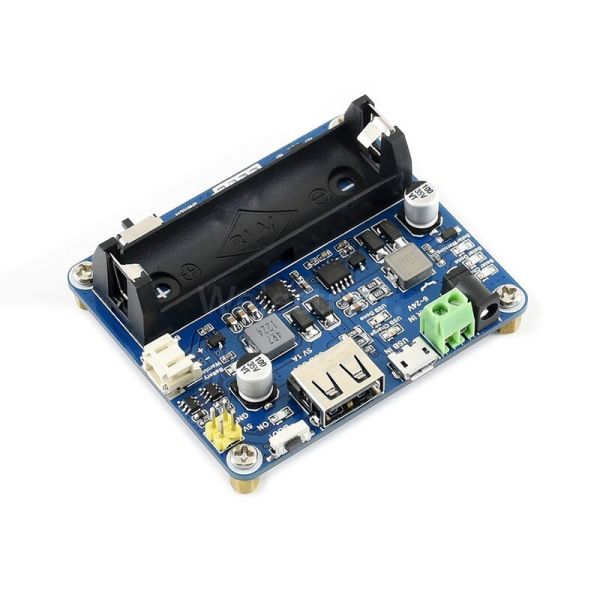

Waveshare 16120 Solar Power Manager

16120
AA3507
This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V rechargeable Li battery through solar panel or USB connection, and provides 5V/1A regulated output. The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits,...
1205
Χωρίς ΦΠΑ: 9.72
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V rechargeable Li battery through solar panel or USB connection, and provides 5V/1A regulated output.

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar powered, low-power IoT, and other environmental protection projects.

Features

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Supports solar panel / USB connection battery charging
  • For 6V~24V solar panel, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
  • Two 5V output interfaces: pinheaders and USB port
  • Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V rechargeable Li battery
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use

Specifications

  • Solar panel input voltage (SOLAR IN): 6V~24V
  • Micro USB input voltage (USB IN): 5V
  • Pinheader / USB output (USB OUT): 5V 1A
  • Charging cutoff voltage: 4.2V±1>#/li###
  • Over discharging protection voltage: 2.9V±1>#/li###
  • Solar panel charge efficiency:: ~78>#/li###
  • USB charge efficiency:: ~82>#/li###
  • 3.7V battery boost output efficiency: ~86>#/li###
  • Max quiescent current: <2mA
  • Operating temperature: -40?~85?
  • Dimension: 65.2mm × 56.2mm × 22.9mm

What's on Board

Solar Power Manager on board resource

  1. Solar panel charging input: charged by solar panel, DC-002 jack or screw terminal
  2. USB charging input: charged by USB connection, connect a 5V power adapter through the Micro USB port
  3. 5V/1A power output: provides regulated 5V/1A output, USB port or 2.54mm pinheader
  4. Battery interfaces: for connecting 3.7V rechargeable Li battery, PH2.0 connector or 14500 battery holder
  5. CS8501: USB power management chip, for USB charging and 5V/1A boost output
  6. CN3791: solar power management chip, for solar panel charging and buck input
  7. Li battery protection chip: Li battery over charge / over discharge protection
  8. Battery switch
  9. MPPTSET switch (bottom side): supported level: 6V/9V/12V/18V/24V select the level closed to input level to improve charging efficiency
  10. BOOT key
  11. Battery capacity indicators
  12. USB charging indicators: USB Charge: on when USB charging USB Done: on when the battery is full charged by USB
  13. Solar panel charging indicators: Solar Charge: on when solar panel charging Solar Done: on when the battery is full charged by solar panel Solar Warning: on when solar panel reverse connection
  14. Battery warning: on when battery reverse connection
  15. Power output indicator: 5V/1A output

Application Example


Wiki : www.waveshare.com/wiki/Solar_Power_Manager

Package Contents

Note: the 14500 battery is NOT included.

  1. Solar Power Manager x1
MANUFACTURER
WAVESHARE
MPN
16120
EAN
5904422371609
