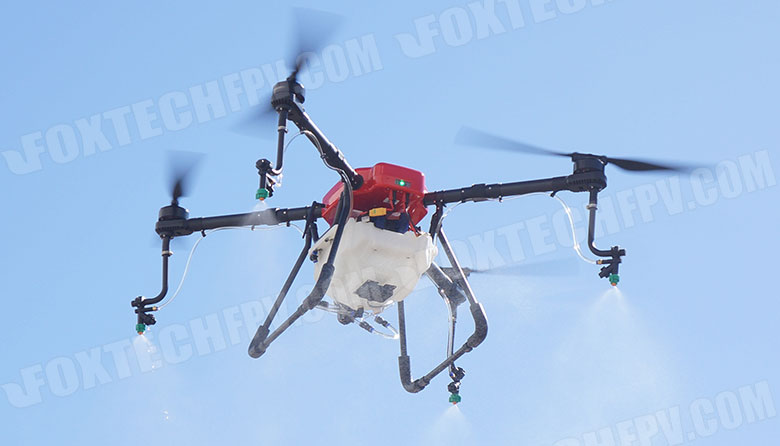

THEA 130 Agriculture Sprayer

THEA 130 is an economical practical spraying drone, which features high temperature resistance, corrosion resistance, stable and reliable operation. The foldable design can save more space and makes it convenient for transportation.

The THEA 130 agriculture sprayer adopts new released flight controller system which including main controller module, GPS Module, power module and microwave radar,etc. The flight control system has the comprehensive flight status monitoring alarm function and perfect emergency protection mechanisms, that greatly guarantee the safe operation of the system, combined with the new spraying system and intelligent operation planning system, the agricultural plant protection efficiency is also significantly improved.

THEA 130 Agriculture Sprayer equipped with this flight control system can realize the functions like autonomous operation, one-key takeoff and landing, terrain following and fixed height flight, the microwave radar can predict the distance between the aircraft and the crop, so THEA 130 can fly at a constant distance to ensure even spraying.

THEA 130 also supports GPS, GLONASS and Beidou satellite navigation mechanism, which greatly improve the reliability; The agriculture sprayer also equipped with efficient power management module, real-time monitors the battery power, supports low voltage voice alarm; You also could equip the spraying drone with high precision liquid level sensor, so that it can monitor the dosage of pesticide in real time, and the ground station supports voice alarm when there is no pesticide in the tank.

Through the ground station software, you can real-time monitor the flight status, and measure the block coordinates, it also supports the voice alarm and flight parameter setting functions.

The THEA 130 agriculture sprayer is equipped with a 10L pesticide tank, and the operation efficiency of THEA 130 is about 1.65-2.5acre per flight. THEA 130 is a cost-effective agriculture spraying drone and can be applied in variety of environments and terrains, like fields, crops, forests and orchards.

Specification:

Wheelbase: 1290mm
Dimensions: 1200×1200×511 mm (arms unfolded, without propellers)
Total Weight (without battery): 10kg
Max Takeoff Weight: 25kg (at sea level)
Nozzle Spraying Volume: 0.8-2.0L/min
Efficiency: 1.65-2.5acre per flight
Working Voltage: 44.4V(12s)
Flying Speed: 0-10m/s
Spraying Swath: 3-5m
Flying Time: 15-20min(Normal spraying operation time)

Features:

Microwave fixed-height radar, support terrain following flight
Android mobile phone ground station, easy to use
PC ground station, full voice broadcast
Real-time data display, monitor flight status
Support route planning, automatic flight operation
Support AB point operation
Support one-key takeoff and landing, greatly improve safety
Provide high-pressure ceramic nozzle, spray rate is adjustable, uniformly spray
Support breakpoint and continue spraying, support no pesticide and low voltage automatic return
Support irregular land route planning
Support to set obstacle points, plan routes to avoid obstacle areas
Support for setting an alternate landing point to facilitate large-scale land operations
Reserve RTK interface, support upgrade and install RTK

Your Purchase Includes:

RTF Combo:

1x THEA 130 Agriculture Spraying Drone
1x 10L Pesticide Tank
4x Sprinkler
4x XRotor Pro X8 Motor & ESC Combo
2x 30inch Folding Propeller
1x DA16S+ Remote Controller
1x Flight Controller with GPS Module, Power Module, Microwave Radar
1x Packing Box

Option:

2x 6S 16000 LIPO BATTERY

BATTERY CHARGER

Manual Download
