Official Raspberry Pi Camera Module V2.1 8MP 1080P30 RS Version made in UK

913-2664
CA0030
Product Details Raspberry Pi HD Camera Board V2.1 The Raspberry Pi High Definition (HD) Camera Board connects to any Raspberry Pi or Compute Module, allowing you to create HD video and still photographs. It utilises the IMX219PQ image sensor from Sony which offers high-speed...
2017
Χωρίς ΦΠΑ: 16.27
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής
Product Details

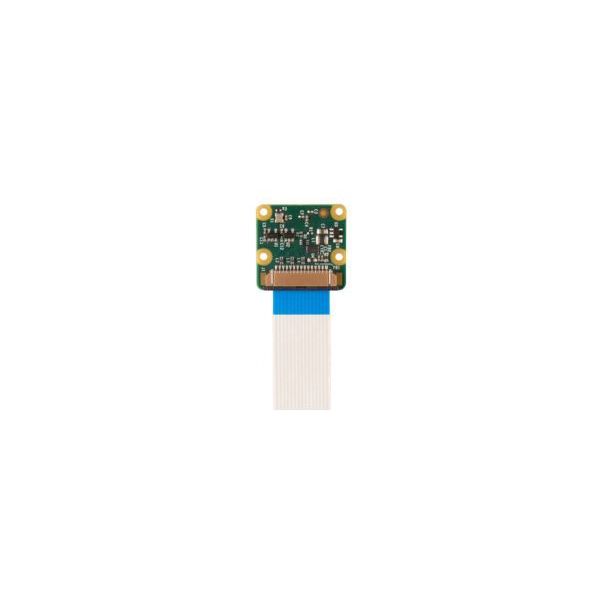

Raspberry Pi HD Camera Board V2.1

The Raspberry Pi High Definition (HD) Camera Board connects to any Raspberry Pi or Compute Module, allowing you to create HD video and still photographs.
It utilises the IMX219PQ image sensor from Sony which offers high-speed video imaging and high sensitivity.
The Raspberry Pi Camera Module offers reduced image contamination such as fixed pattern noise & smearing. It also features automatic control functions such as exposure control, white balance & luminance detection.

Features and benefits:
High-quality imagery
High data capability
8 megapixels fixed focus (includes small focus adjustment tool)
Supports 1080p, 720p60 & VGA90
Sony IMX219PQ CMOS image sensor
15-pin ribbon cable

Connecting the Camera Module to Pi:
A 15 cm ribbon cable attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, you can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs. Alternatively there are libraries such as Picamera Python, and many others that you can find online.

Product Applications:
The Raspberry Pi Camera Module is ideal for HD videos and still photography. You can also try time-lapse and slow-motion.
Other applications include botanical, wildlife watching & home security.

Raspberry Pi Cameras

Specifications
Attribute Value
Type Camera Module
Number of Channels 1
Supported Bus Interfaces CSI-2
Maximum Supported Resolution 3280 x 2464
Maximum Frame Rate Capture 30fps
Dimensions 23.86 x 25 x 9mm
Height 9mm
Length 23.86mm
Maximum Operating Temperature +60°C
Minimum Operating Temperature -20°C
Width 25mm
MANUFACTURER
RS-Online
MPN
913-2664
