Waveshare 19694 Pico-UPS-A-EN

Κωδικός Κατασκευαστή (MPN): 19694

ΚΩΔΙΚΟΣ: AA2608

MANUFACTURERWAVESHARE MPN19694

Uninterruptible Power Supply For Pico Keeps Your Pico Running While Recharging, Monitoring Battery Status Via I2C Features At A Glance The Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching...

€18⁶⁰

Χωρίς ΦΠΑ: €15.00

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Uninterruptible Power Supply For Pico

Keeps Your Pico Running While Recharging, Monitoring Battery Status Via I2C

Features At A Glance

The Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus.

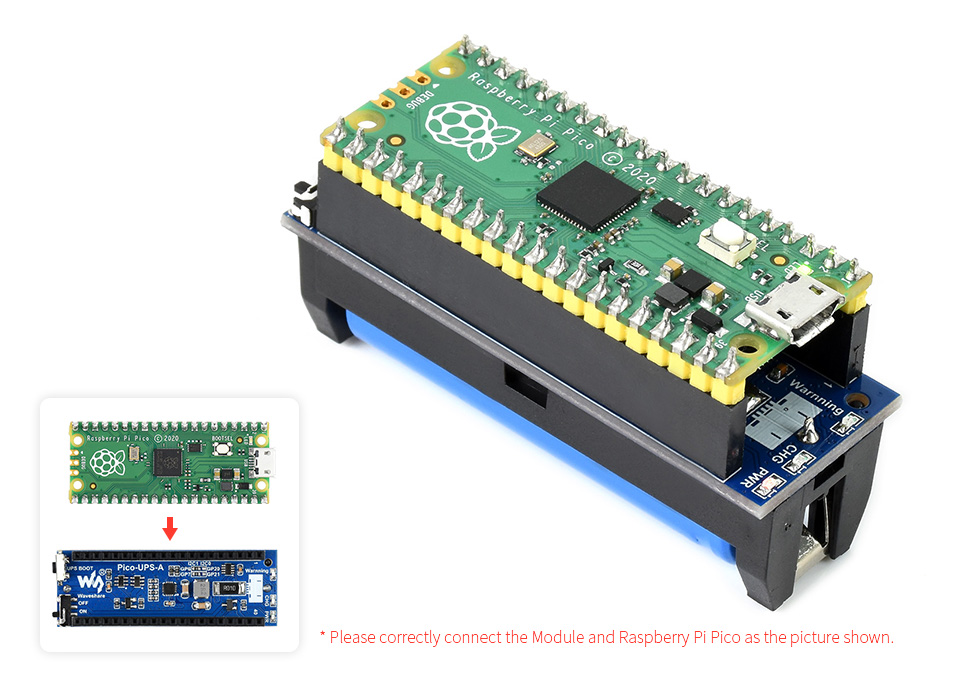

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply

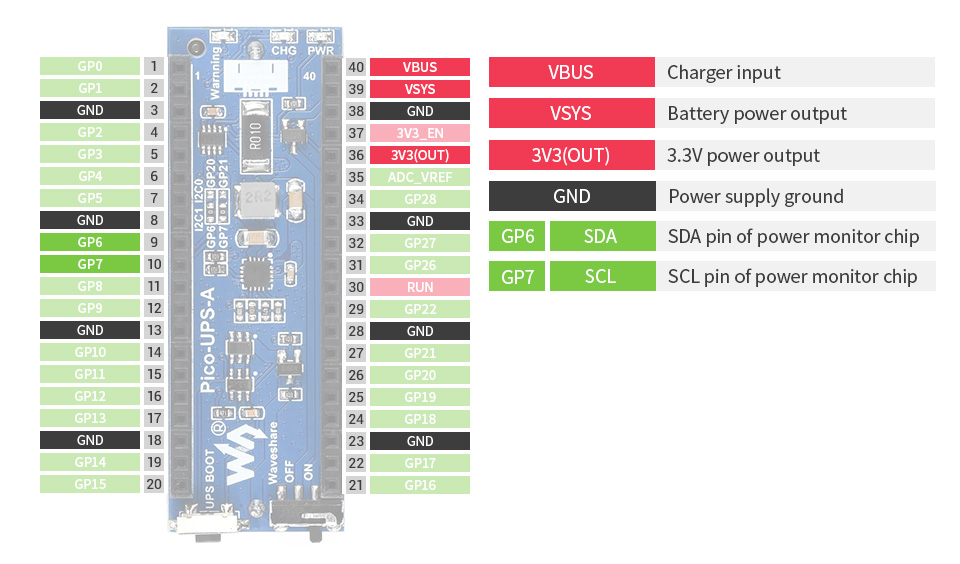

I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

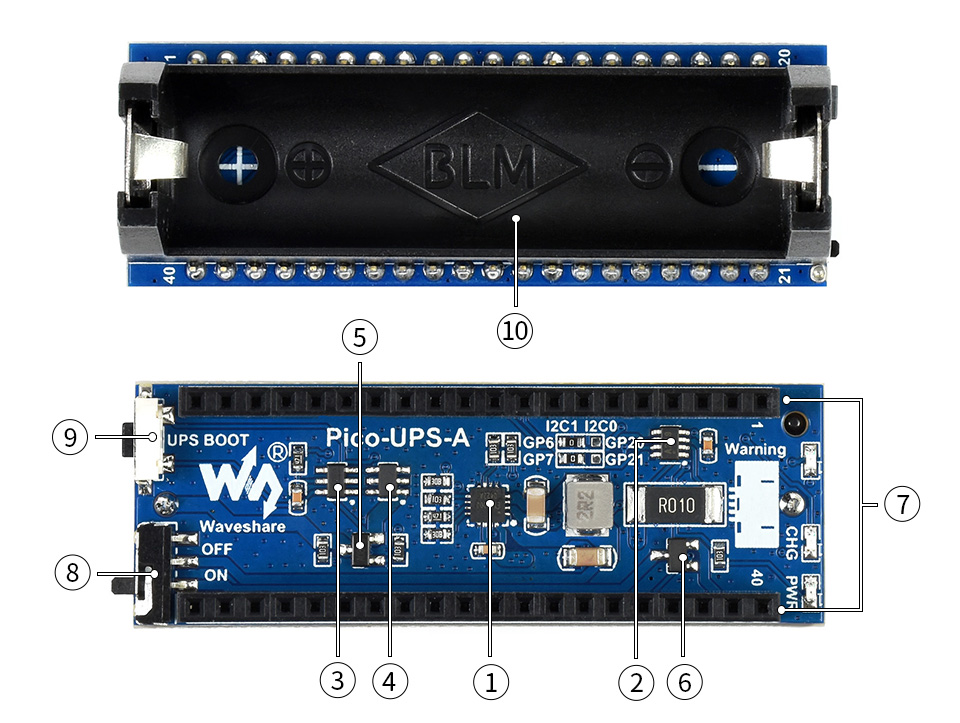

Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
