Waveshare RP2040 Plus

20290
AA2607
RP2040 MCU Board Plus a Pico-like MCU board based on Raspberry Pi RP2040 Compatible With Most Of The Raspberry Pi Pico Add-On Modules Board Specifications Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our...
1612
Χωρίς ΦΠΑ: 13.00
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

RP2040 MCU Board Plus

a Pico-like MCU board based on Raspberry Pi RP2040

Compatible With Most Of The Raspberry Pi Pico Add-On Modules

Board Specifications

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader Options

C/C++,MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

26 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

What's On Board

  1. LED user LED (not power indicator)
  2. ETA6096 high efficiency Lithium battery recharge manager
  3. TPS63000 high efficiency DC-DC buck-boost chip
  4. USB Type-C connector
  5. BOOT button press it when resetting to enter download mode
  6. W25Q32JVSSIQ 4MB NOR-Flash
  7. RESET button
  1. RP2040 dual-core processor, up to 133MHz operating frequency
  2. Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
  3. Pinout compatible with Raspberry Pi Pico
  4. USB test points connecting to USB interface
  5. BOOT test point connecting to BOOT button
  6. DEBUG points

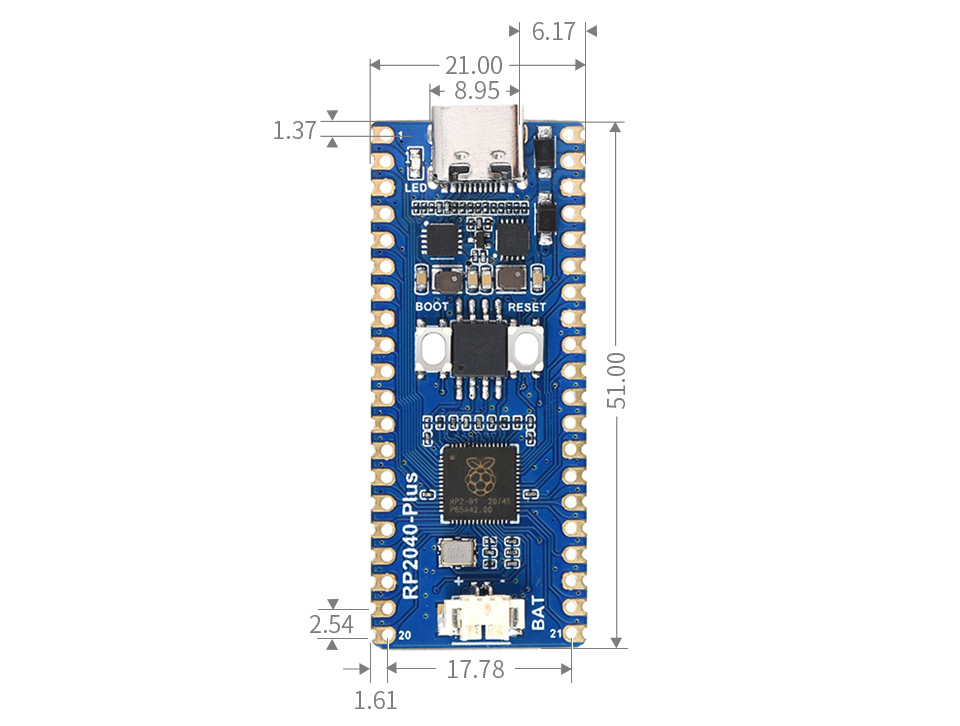

Outline Dimensions

Resources & Services

Selection Guide

BRANDRaspberry PiWaveshare
PRODUCT Original Mini ver. LCD ver. Plus ver.
PROCESSORRaspberry Pi official RP2040 microcontroller
REGULATORRT6150 (DC-DC, 800mA)ME6217 (LDO, 800mA)TPS63000 (DC-DC, 1800mA)
USBMicro USBType-C
FLASH2MB4MB
BATTERY HEADERN/AYes(concurrent recharging and powering)
INTEGRATED LCDN/A0.96inch IPS LCDN/A

Package Contents

RP2040-Plus

  1. RP2040-Plus x1
