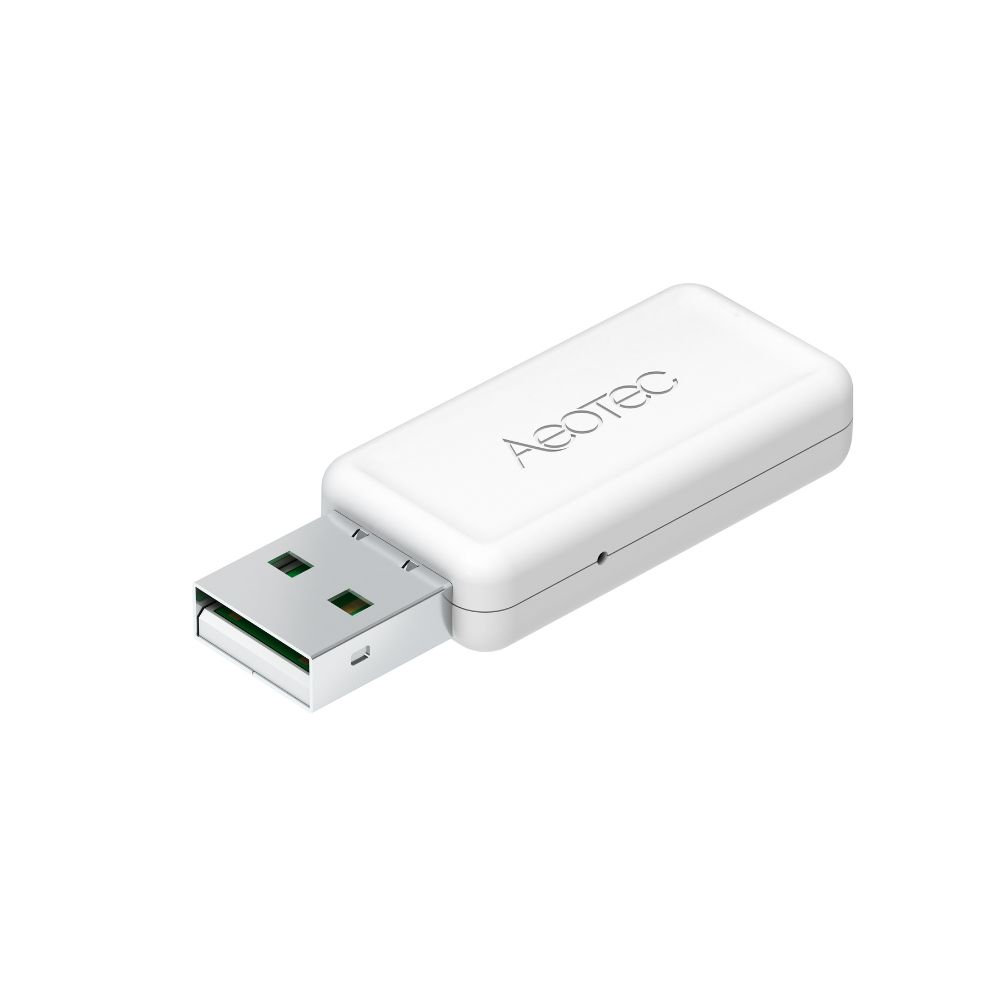

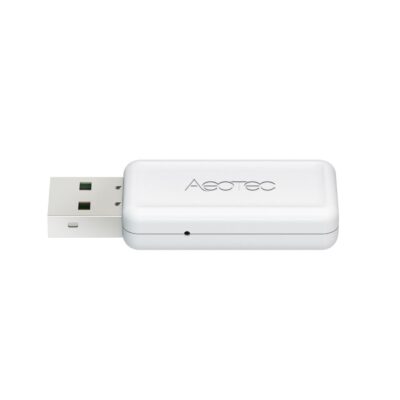

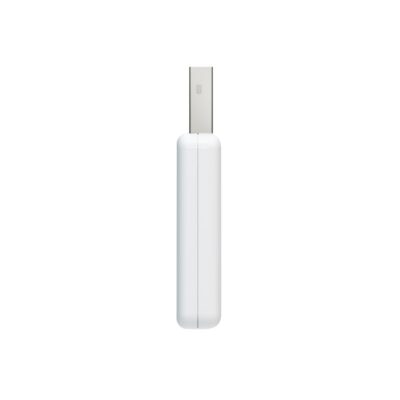

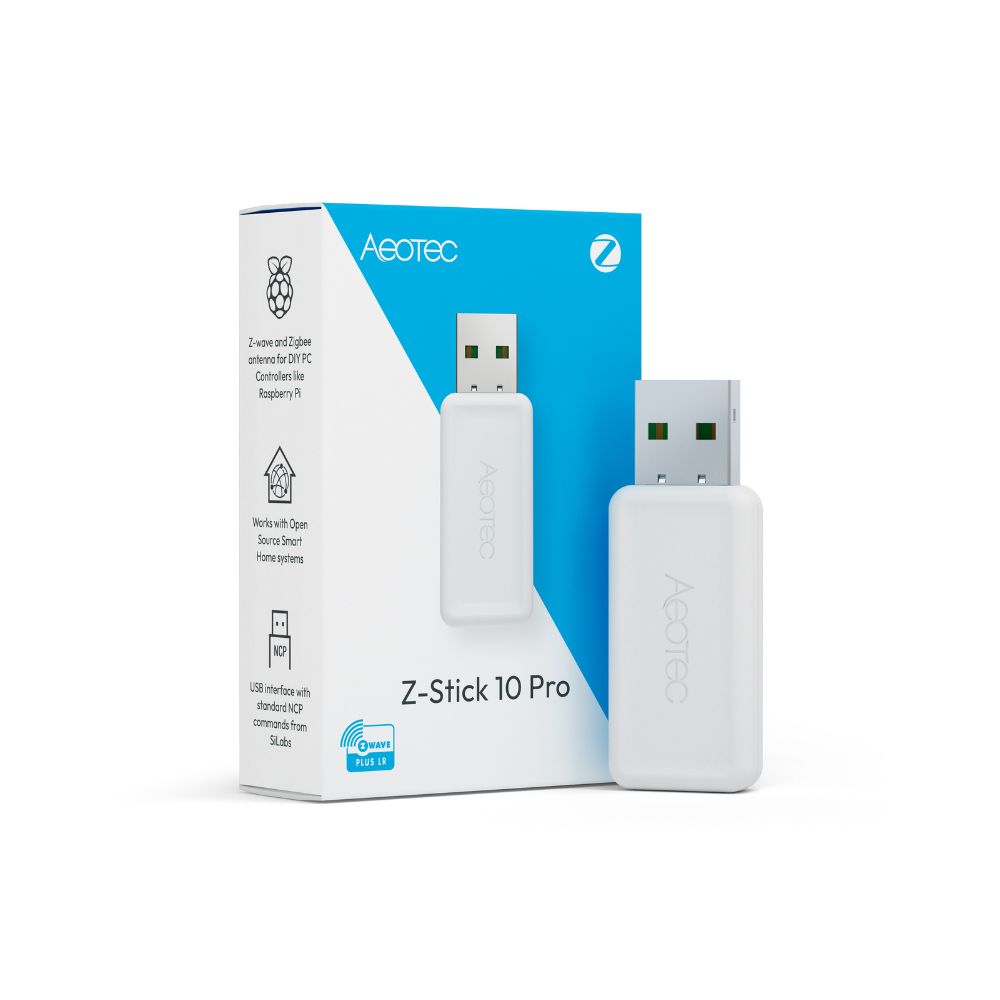

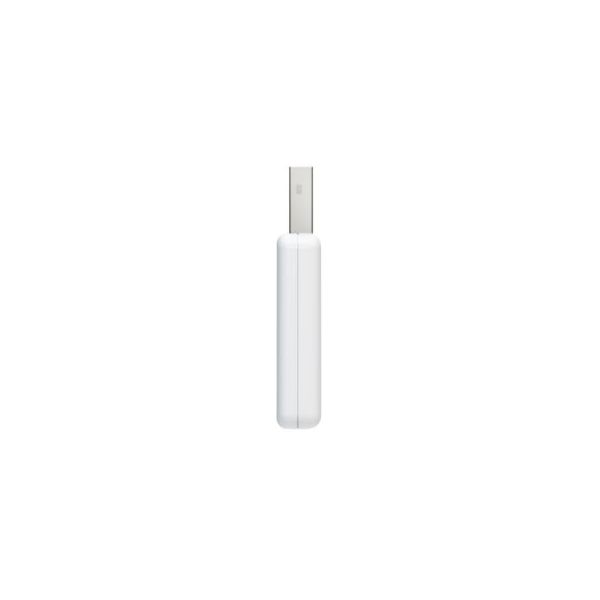

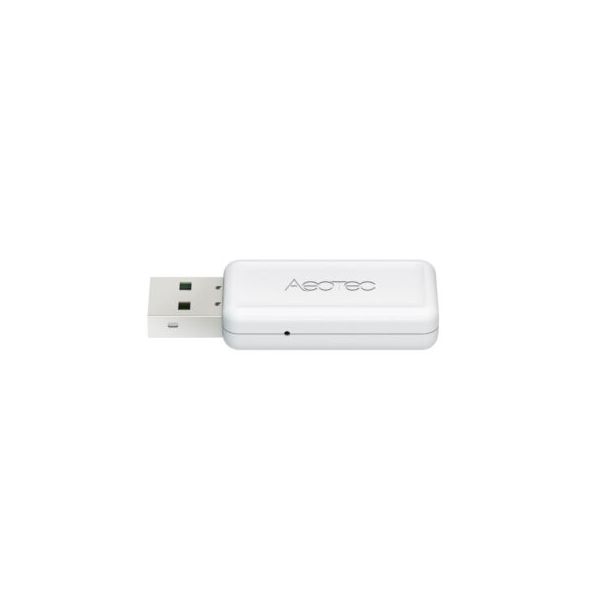

Aeotec Z-Stick 10 Pro – Z-Wave USB adapter (ZWA060)

The Aeotec Z-Stick 10 Pro is an advanced USB smart home adapter that combines both Z-Wave 800 and Zigbee 3.0 protocols in a single device. It enables you to build your own smart home hub using open-source platforms such as Home Assistant.

About the Aeotec Brand

Aeotec is a Germany-based smart home development company offering a wide range of high-quality products using Z-Wave and Zigbee protocols. Their products are compatible with numerous open-source platforms such as Home Assistant, OpenHAB, and also the Samsung SmartThings platform.

Main Product Features

• 2-in-1 Smart Home Adapter: Supports both Z-Wave 800 and Zigbee 3.0 protocols, allowing easy integration and control of various smart devices with a single adapter.
• Local control, cloud-free operation: Device control works without internet connection – faster response time, greater reliability, and enhanced data security.
• Compact design: The slim adapter takes up minimal space and fits easily alongside other USB devices.
• Wide compatibility: Compatible with Home Assistant, Zigbee2MQTT, OpenHAB, and other open-source platforms.
• Compatible with Raspberry Pi, Windows, and Linux
• Advanced technology: Equipped with the latest Silicon Labs technology, ensuring excellent performance and reliable connectivity.

Smart Home Protocols and Platform Compatibility

• Z-Wave chip: EFR32ZG23
• Zigbee chip: EFR32MG21
• Supported protocols: Z-Wave 800 (Z-Wave Plus, Z-Wave Long Range), Zigbee 3.0
  • Z-Wave 800: The new generation in smart home automation! The new Z-Wave 800 chip (EFR32ZG23) offers extended range, energy efficiency, and enhanced security – ideal for modern home automation solutions.
    • Up to 100 meters indoor wireless range and improved network stability provide reliable communication between your smart home devices.
    • High-efficiency communication via the EFR32ZG23 SoC (Silicon Labs) chip
    • Frequency band: 868.4 MHz (Europe)
    • Data transfer rate: up to 100 kbit/s
    • Advanced AES-128 encryption for maximum security
    • Optimized power consumption for extended battery life in sensors
    • Enhanced network capacity: supports up to 4,000 devices in LR networks
    • Backward compatibility with existing Z-Wave devices (Z-Wave Plus and newer)
  • Z-Wave Long Range (LR):
    • Greater range and more flexibility! With Z-Wave Long Range (LR) technology, the wireless range increases significantly:

      Up to 1.5 km wireless range – ideal for large buildings or outdoor areas

    • No mesh network required – direct point-to-point communication with the central unit
    • Supports up to 4,000 devices per network (compared to the classic Z-Wave limit of 232)
    • Lower power consumption – perfect for battery-powered sensors
• Local remote control: Direct control via USB connection
• Factory platform: No specific factory platform; compatible with open-source systems
• Cloud platform integrations: Not required; local control is supported
• Third-party platform compatibility: Home Assistant, Zigbee2MQTT, OpenHAB
• Integration options: Z-Wave Serial API, EZSP (Zigbee)
• Compatibility with other systems: Compatible with Windows, Linux, and macOS, as well as Raspberry Pi 3 and newer versions

Smart Features

• Device integration: Allows the addition and management of Z-Wave and Zigbee devices
• Automation: Supports creation of automation rules via compatible platforms
• Local control: Works without internet, ensuring fast and reliable operation
• Secure operation: Supports Z-Wave S2 security protocol

Other Specifications

• Dimensions: 49 x 17 x 7 mm
• Operating temperature: 0°C – 40°C
• Operating humidity: 8% – 80>#/li###
• Range: Z-Wave: up to 150 m outdoors, Zigbee: up to 200 m in open space
