Product Description

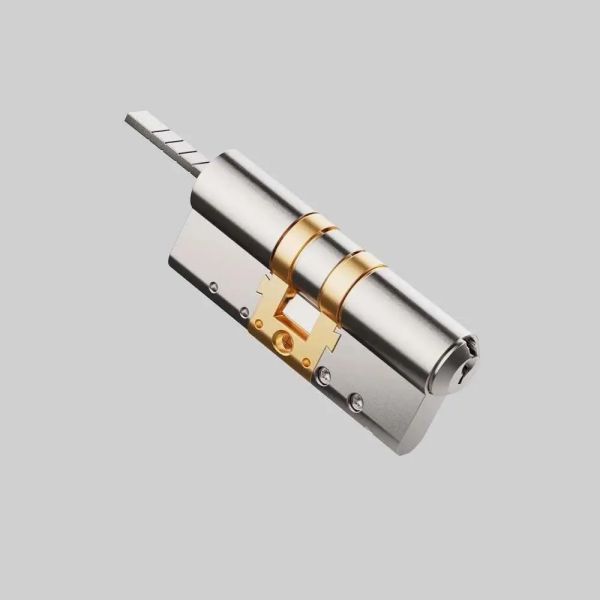

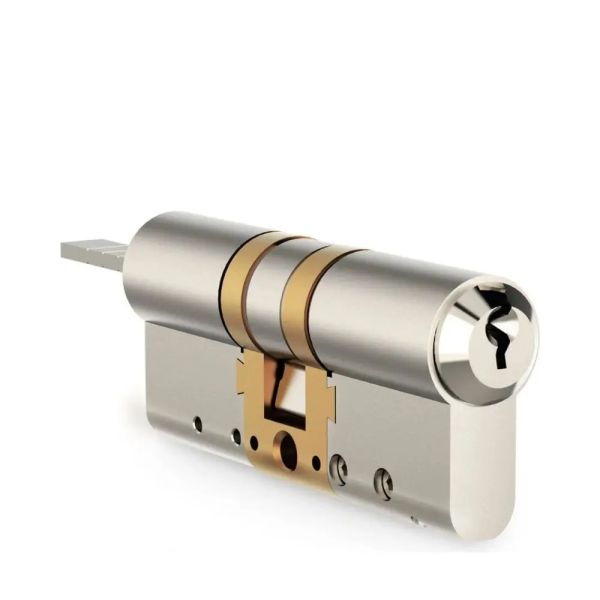

The Aqara Adjustable Cylinder is a modular lock cylinder compatible with the Aqara U200 Smart Lock and numerous other smart lock systems. Designed to be installed on the secure side of the door, its modular structure allows full adjustment of the cylinder length in both directions relative to the centerline of the door. This makes it suitable for installation in almost any lock designed to accept cylindrical lock cylinders. Equipped with 4 extension pieces on each side, it can extend to fit a wide range of door thicknesses.
Key Features
- Adjustable Length:
The Aqara Adjustable Cylinder’s unique design allows the cylinder length to be adjusted using the extension pieces included in the package.
- External side: expandable by up to 20 mm (using 4 extension pieces).
- Internal side: expandable by up to 20 mm (using 4 extension pieces).
- Outstanding Compatibility:
Specifically designed for the Aqara U200 Smart Lock, but also compatible with other smart locks designed for cylindrical lock cylinders.
- Durable and Secure Design:
Made from high-quality, wear-resistant materials, the cylinder ensures long-term durability and meets the highest safety standards.
- Easy Installation:
Thanks to its adjustable design and intuitive installation guide, the cylinder can be quickly installed without professional expertise.
- Internal Innovations:
Includes a reinforcement bar kit that ensures maximum stability, even when the cylinder is extended.
- Universal Door Compatibility:
The cylinder fits all standard European lock types, whether on new or existing doors.
Integration and Compatibility
The Aqara Adjustable Cylinder is compatible with all lock mechanisms designed for cylindrical lock cylinders, seamlessly integrating into your existing home setup. Aqara is committed to both versatility and security, and the cylinder meets the EN 1303 certification for safety standards.
Package Contents

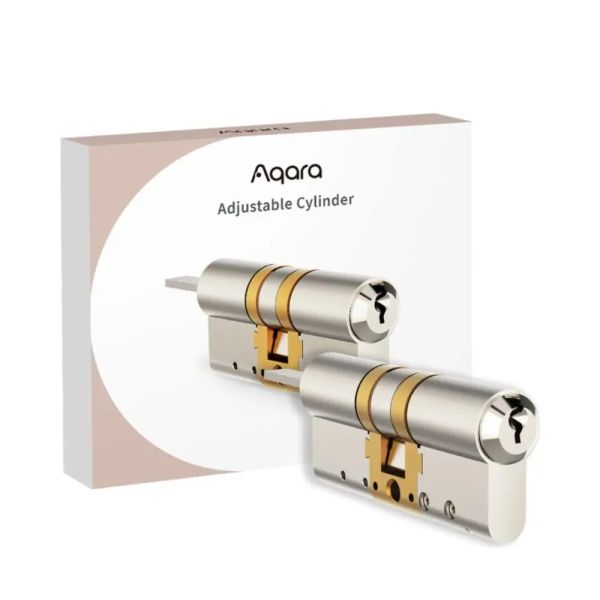

- 1 x Aqara Adjustable Cylinder
- 8 x Extension pieces (each providing a 5 mm extension)
- 15 x Reinforcement bars of various sizes
- 1 x Hexagonal adapter
- Screws and push rods in various lengths
- Detailed installation guide
Technical Specifications
- Cylinder Length:
Base length: 35 mm external / 35 mm internal
Maximum extension: +20 mm external / +20 mm internal
- Material: Hardened steel and corrosion-resistant alloy
- Compatibility:
Compatible with the Aqara U200 Smart Lock, Aqara Home app, and Matter systems
- Safety Standards: EN 1303 certification
Additional information
| General |
|---|
|
| More features |
|---|
| Main category | lock |
|---|
| Warranty | 15 Months |
|---|
| Warranty type | Warranty |
|---|
| Type of the product | smart lock |
|---|
|
