The Touchscreen Dial V1 redefines the possibilities of smart devices by introducing intuitive controls to brighten everyday life. The device features a 1.32-inch round touchscreen paired with a rotary dial that provides haptic feedback for smoother and more precise use. Its built-in temperature and humidity sensors, as well as a proximity sensor, make it ideal for controlling Aqara thermostats or other smart home devices, as well as for creating custom automations.
Supporting Wi-Fi, Zigbee, and Bluetooth protocols, the Touchscreen Dial V1 seamlessly connects to third-party smart home ecosystems such as HomeKit, Google Home, Alexa, and the Matter platform.
Key Features
- Customizable Display Themes
Choose a screen theme that best fits your environment to give the smart device a personalized look.
- Centralized Smart Device Control
The device includes two built-in and six wireless switches by default, enabling centralized control of devices and the creation of custom automation scenes.
- Haptic Feedback Rotary Dial
The rotary dial offers smooth, precise, and detailed adjustments with haptic feedback, making navigation within menus intuitive and engaging.
- Temperature and Humidity Sensing
The integrated sensors provide real-time data, which can sync with the Aqara system to enable advanced automations.
- Automatic Activation with Proximity Sensing
Using a millimeter-wave radar and optical sensor, the display automatically activates when you approach, providing a seamless and convenient user experience.
- Customizable Screen

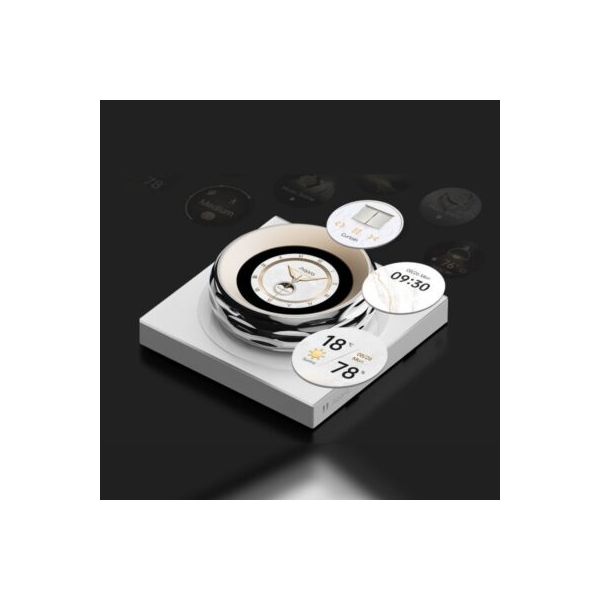

The LCD touchscreen allows for personalized screensavers, such as weather information, date, or indoor conditions, in a style that suits your preferences.
Product Specifications
Dimensions:
86 × 86 × 62.1 mm (3.39 × 3.39 × 2.45 inches)
Material:
AG glass, metal rotary dial
Color:
Moon White
Control Options:
2-gang light switch
Relay Specification:
HF182
Screen:
- Type: LCD, multi-point touchscreen
- Resolution: 360 × 360
- Size: 1.32 inches
Communication Protocols:
- Wi-Fi: IEEE 802.11 a/b/g/n/ac (2.4GHz and 5GHz)
- Zigbee: IEEE 802.15.4
- Bluetooth
Sensors:
- Temperature and humidity sensor
- Millimeter-wave radar
- Optical proximity sensor
Electrical Specifications:
200-240V AC, 50/60 Hz, max. 8 A (resistive load)
Integration and Compatibility
The Touchscreen Dial V1 is compatible with the following platforms:
- Apple HomeKit
- Google Home
- Amazon Alexa
- Matter standard
It communicates effortlessly with third-party devices via Wi-Fi or Zigbee, ensuring smooth integration into your smart home system.

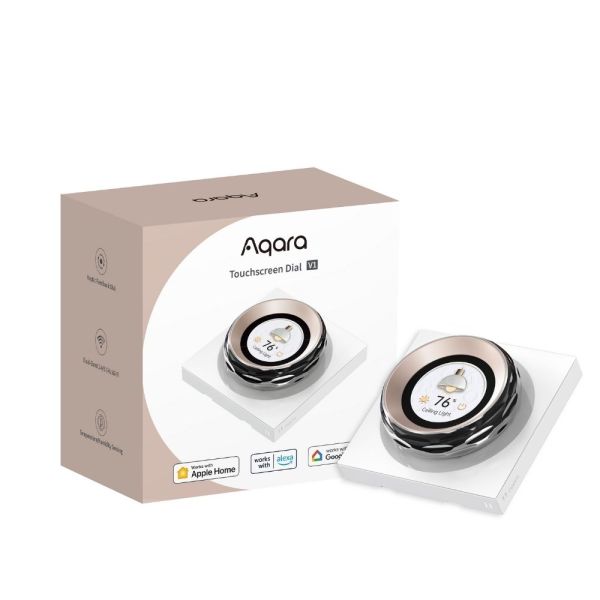

Package Contents
- Touchscreen Dial V1 × 1
- User Manual × 1
- Declaration of Conformity × 1
- Screw Kit × 2
Additional information
| General |
|---|
| Brand | Aqara |
|---|
| Factory SKU ID | DS-K01D |
|---|
|
| Electricity properties |
|---|
| 2-way or 3-way switching | wireless Zigbee wall switches can be used for 2-way or 3-way switching (via a Zigbee hub) |
|---|
|
| Smart home protocols |
|---|
|
| Remote control, smart control |
|---|
| Controllable from internet | yes |
|---|
| Cloud mode | yes, may connect to Aqara cloud |
|---|
|
| More features |
|---|
| Bundle | No |
|---|
| Colour | Moon White |
|---|
| Compatible with Matter standard | yes |
|---|
| _Device power supply | AC (110V-) (Live+Neutral) |
|---|
| Device power supply | 230V AC live + neutral |
|---|
| Dimmer feature | no, but can control a dimmer |
|---|
| Direct local remote control | no |
|---|
| Dry contact (voltage free) switching | no |
|---|
| Ethernet (RJ-45) | no |
|---|
| External switch supported | no |
|---|
| IP rating | IP20 |
|---|
| Main category | wall switch |
|---|
| Manufacturer smartphone app | Aqara app |
|---|
| NO/NC switch | no |
|---|
| Number of gangs / circuits | 2 |
|---|
| Number of phases | 1P |
|---|
| Operating humidity range | 5% – 95% RH |
|---|
| Operating temperature range | -10°C – 40°C |
|---|
| Physical on/off button on device | touch screen control |
|---|
| Rated current (output) | 8A / channel |
|---|
| Rated voltage (output) | 240V AC |
|---|
| RF transmitter / receiver | no |
|---|
| Sensor | built-in temperature and humidity sensor |
|---|
| Size | 86 x 86 x 62,1 mm |
|---|
| Supported protocols | Bluetooth, Wi-Fi, Zigbee |
|---|
| Thread | no |
|---|
| Type of the product | wall switch |
|---|
| Warranty type | Warranty |
|---|
| Wi-Fi | yes |
|---|
| Wi-Fi standards | 802.11 a/b/g/n/ac 2.4GHz / 5GHz |
|---|
| Zigbee | yes |
|---|
| Z-Wave | no |
|---|
| Dimensions | 20,0 × 5,8 × 11,2 cm |
|---|
|
