Avatto ZigBee ZWPM16-2 smart bidirectional energy meter

Avatto ZigBee ZWPM16-2 smart bidirectional energy meter

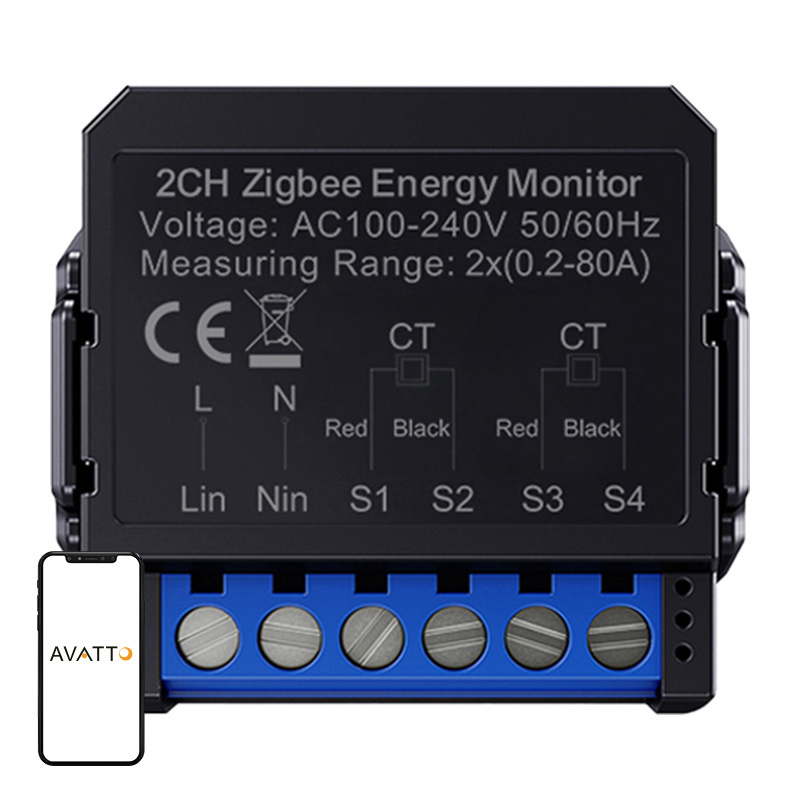

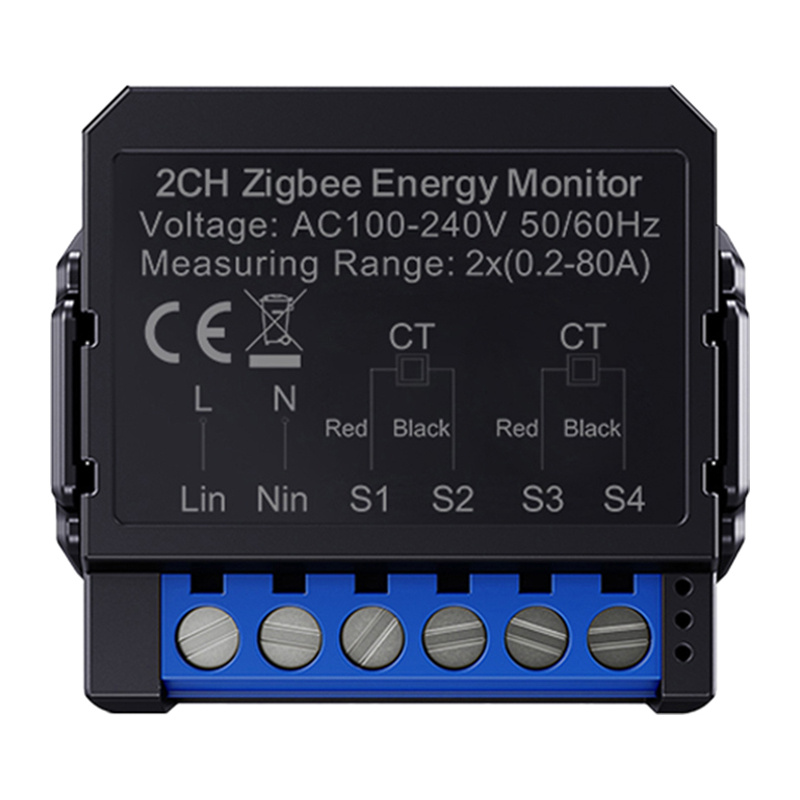

Avatto ZWPM16-2 is a state-of-the-art energy meter with ZigBee communication, which allows monitoring of energy consumption and production in real time. The device is designed for single-phase installations and supports two measurement channels, allowing you to monitor the energy flow from both the grid and the photovoltaic installation.

Two-way metering - control of energy consumption and export

Thanks to the bidirectional measurement function, the Avatto ZWPM16-2 can distinguish between the energy received from the grid and that produced by the installation (e.g. by a photovoltaic inverter). This is ideal for photovoltaic users who want to know how much electricity they consume and how much they return to the grid.

ZigBee connectivity and cooperation with an app

The device connects to a ZigBee home gateway and works with the Tuya or Smart Life app. In the app, you can check the current operating parameters of the installation: voltage, current, power, as well as analyze energy consumption on a daily, monthly or annual basis. A ZigBee gateway is required for operation (sold separately).

Simple and safe installation

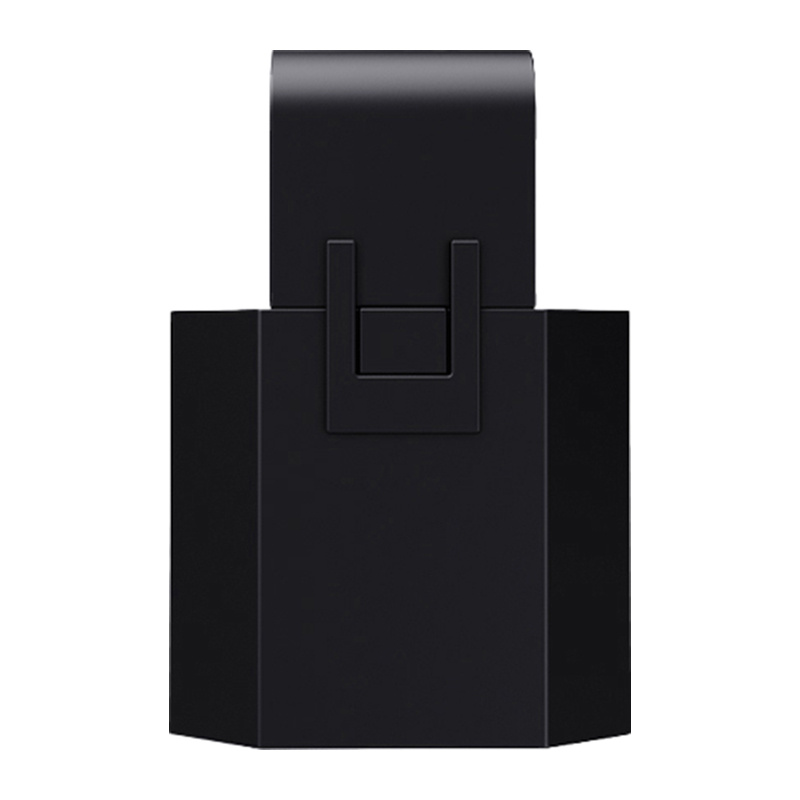

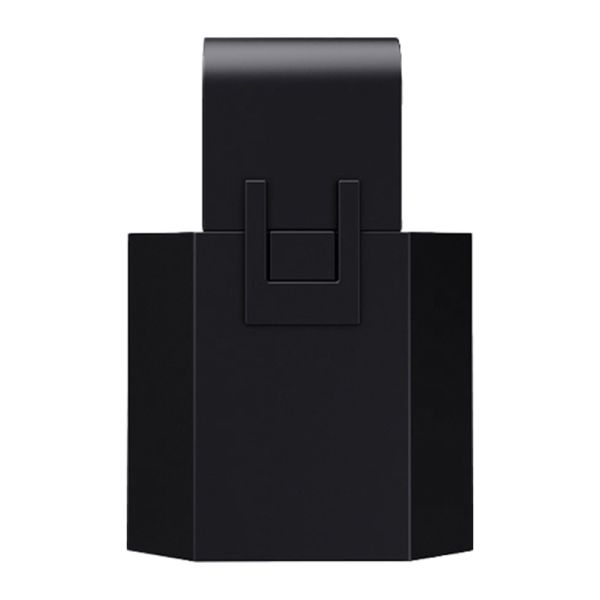

The kit includes a sensor (CT) that is installed without cutting wires - simply clip it onto the power cable. The unit itself is compact in size, so it fits into a standard distribution panel. The cable must be capable of powering devices over 10 watts for the measurement to be accurate.

Power threshold settings and alerts

In the app, you can set minimum and maximum power consumption, as well as set standby power limits. This is a useful feature that allows you to detect irregularities and automatically react to exceedances.
