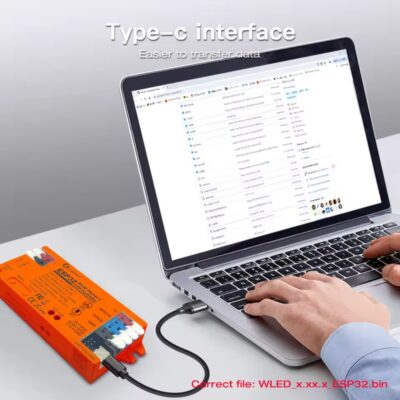

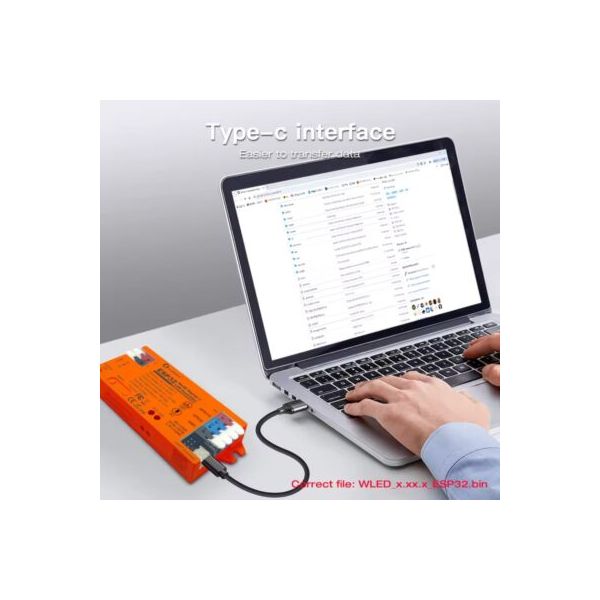

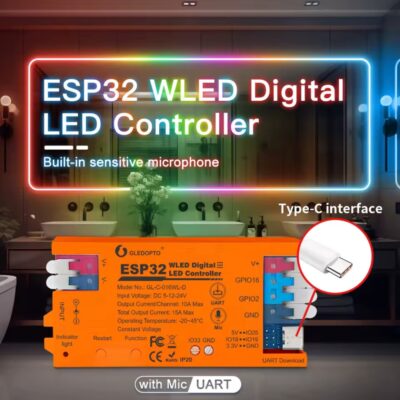

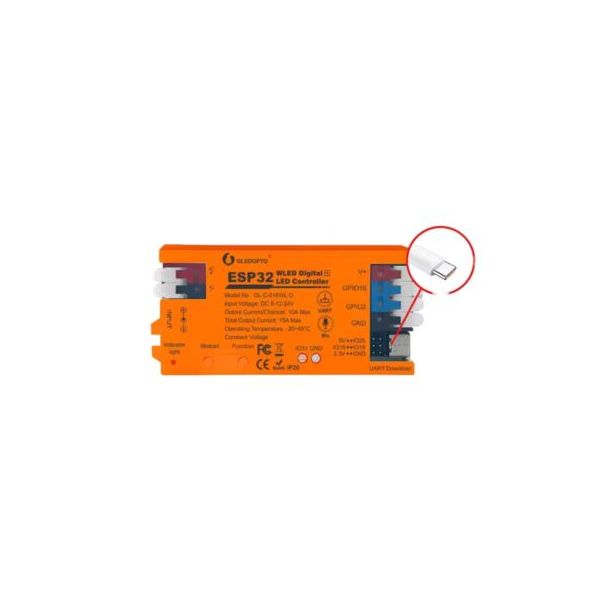

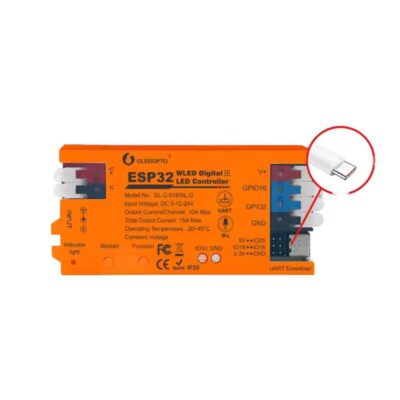

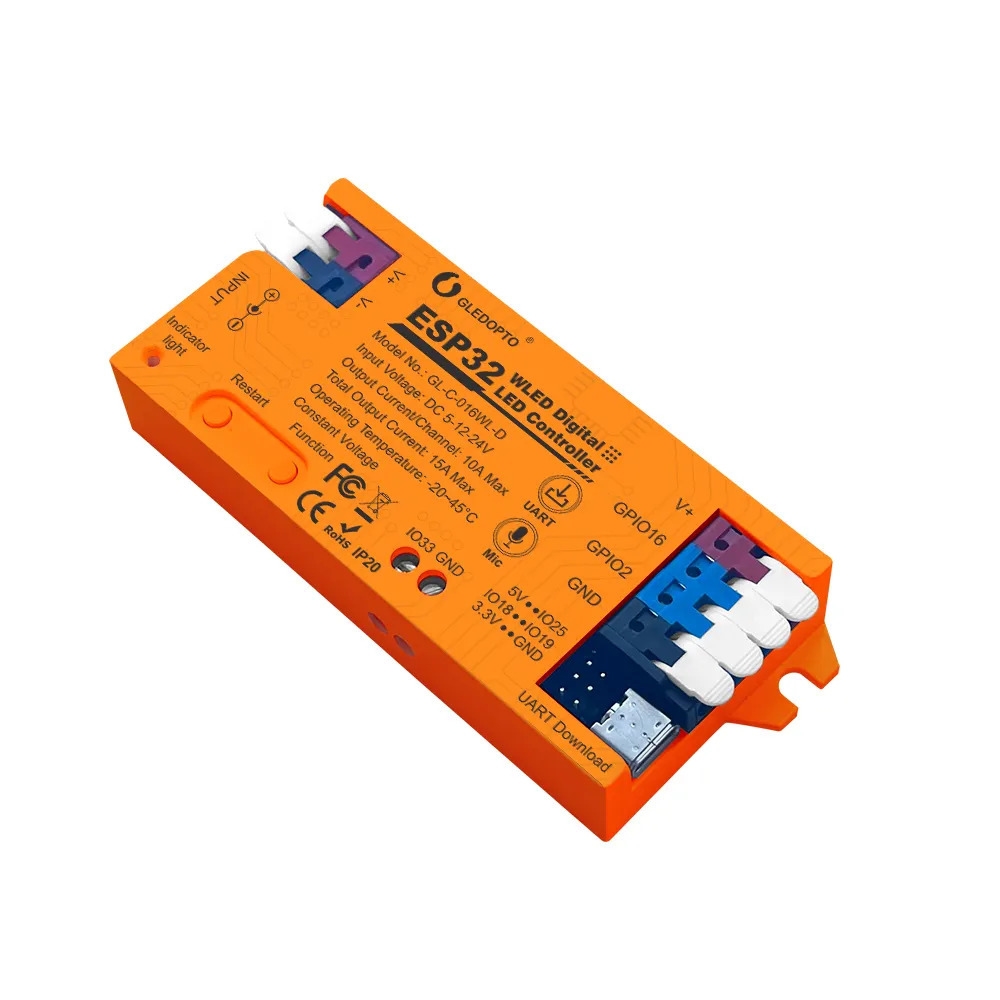

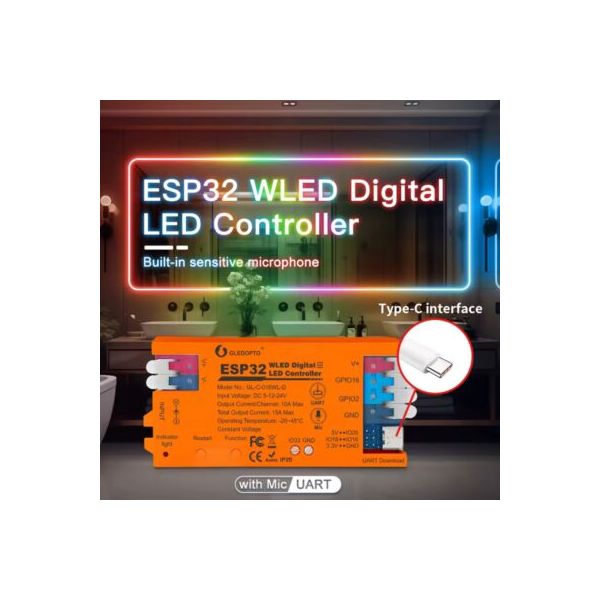

The Gledopto GL-C-016WL-D is an upgraded version of the GL-C-015WL-D IC LED strip controller. It comes with an integrated ESP32 chip and supports IC LED strips powered by 5V-24V DC. The new model retains a maximum output of 15A. With its built-in microphone and USB Type-C port, users can modify the firmware easily.
This controller supports music synchronization, voice control, and app-based management, allowing for extensive customization of RGB IC lighting systems. It is ideal for DIY projects and stair lighting, offering excellent performance with local remote control and wireless Wi-Fi smart control.
Brand Introduction
Gledopto is a well-known smart home brand recognized for its high-quality smart lighting solutions, including premium smart LED bulbs and LED lamps.
Their WLED series offers broad, seamless integration with various open-source systems, such as Home Assistant, and supports local LAN control. Gledopto products are known for their high-quality materials, reliability, and excellent compatibility with different smart home ecosystems.
Key Features
- ESP32-based WLED LED strip controller
- Music synchronization for dynamic lighting effects
- Wireless control via app, voice commands, and remote control
- UART download for easy programming and customization
- RGB IC support for advanced lighting customization
- 5-24V DC input support, with up to 360W output power
Smart Home Protocols & Integrations
This device supports app-based smart home integration and wireless control, making it compatible with various smart lighting ecosystems. It can be controlled via voice commands or a dedicated app, ensuring seamless connectivity.
Technical Specifications
- Type: IC LED Controller
- Max Power Output: 360W

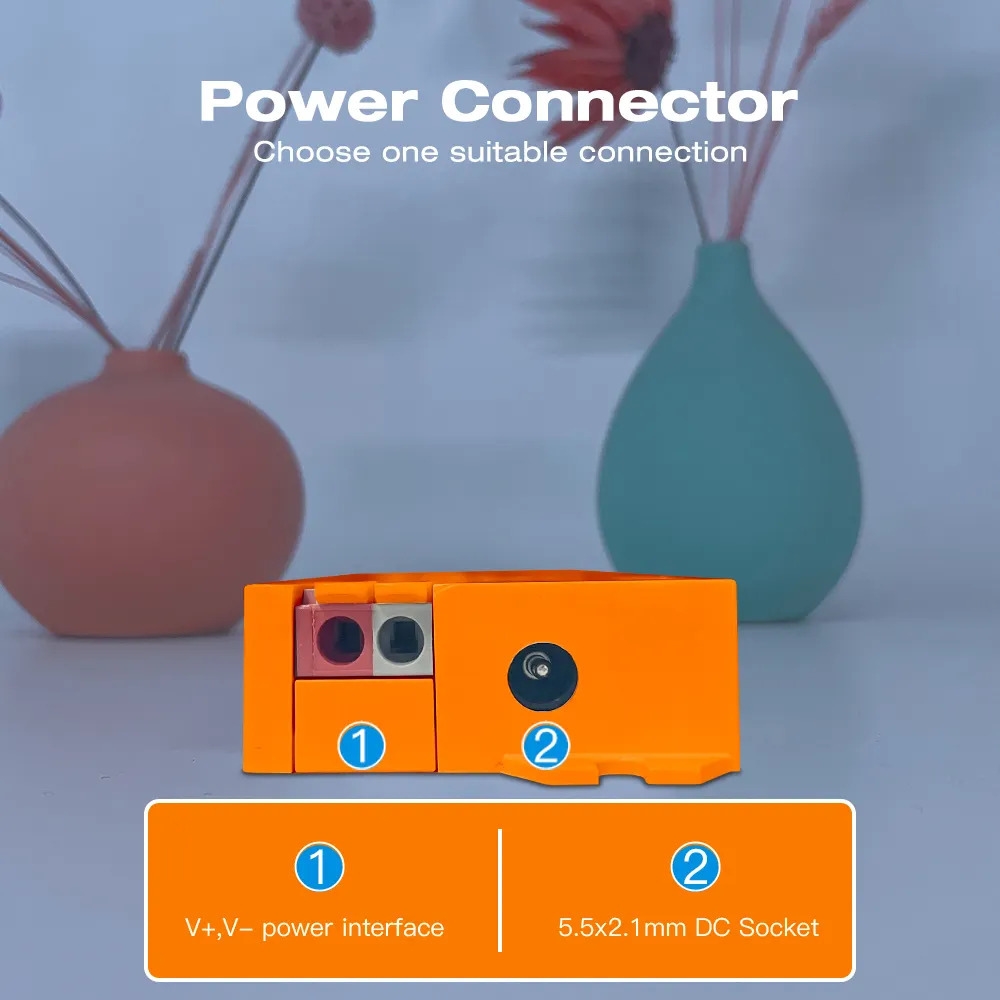

- Input Voltage: 5-24V DC
- Control Mode: App, Smart Voice Control, WLED Remote Control
- Output Current: 15A (total max)
- Product Weight: 0.0572 kg
- Dimensions: 10.8 x 4.5 x 1.8 cm
- Certifications: ROHS, CE
Additional information
| General |
|---|
| Brand | Gledopto |
|---|
| Factory SKU ID | GL-C016WL-D |
|---|
|
| More features |
|---|
| Bundle | No |
|---|
| Main category | LED controller |
|---|
| Manufacturer smartphone app | WLED app |
|---|
| Size | 108 x 45 x 18 mm |
|---|
| Supported protocols | Wi-Fi |
|---|
| Thread | no |
|---|
| Type of the product | LED / RGB(W) controller |
|---|
| Voice | built-in microphone, supports music mode |
|---|
| Warranty | 15 Months |
|---|
| Warranty extension by factory | Gledopto extended factory warranty (24 Months) |
|---|
| Warranty type | Warranty |
|---|
| Wi-Fi | yes |
|---|
| Zigbee | no |
|---|
| Z-Wave | no |
|---|
| Dimensions | 10,8 × 4,5 × 1,8 cm |
|---|
|
